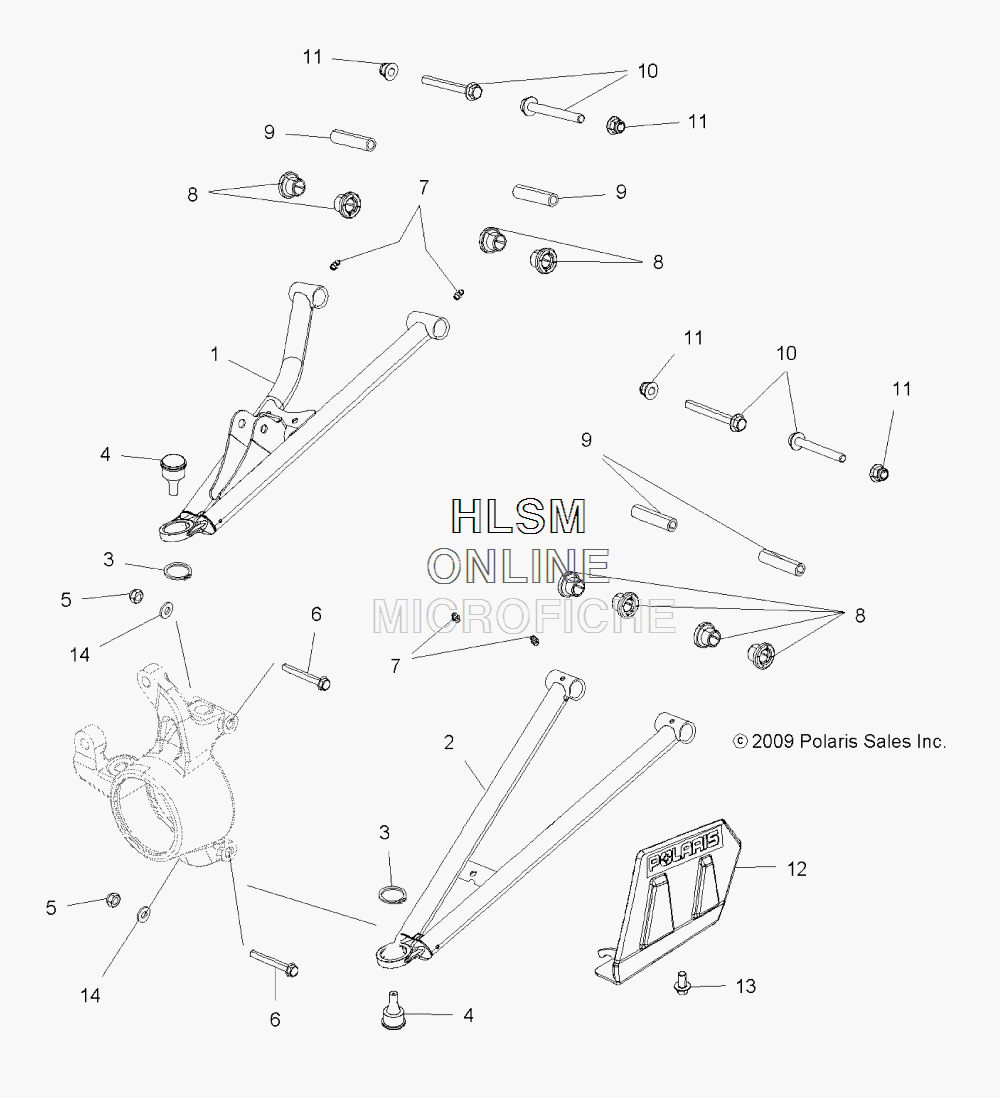

A-ARMS - FRONT для Polaris SPORTSMAN XP EPS 850 INTL (A09ZX85FS) (STEALTH BLACK) - 2009 года выпуска`
-
№АртикулНазвание
-
11015125-067 ARM, CONTROL, UPPER, FRONT, LEFT HAND (BLACK) (BUILT 3/01/09 AND BEFORE)ARM, CONTROL, UPPER, FRONT, LEFT HAND (BLACK) (BUILT 3/01/09 AND BEFORE)
-
11015126-067 ARM, CONTROL, UPPER, FRONT, RIGHT HAND (BLACK) (BUILT 3/01/09 AND BEFORE)ARM, CONTROL, UPPER, FRONT, RIGHT HAND (BLACK) (BUILT 3/01/09 AND BEFORE)
-
11017260-067 ARM, CONTROL, UPPER, FRONT, LEFT HAND (BLACK) (BUILT 3/02/09 AND AFTER)ARM, CONTROL, UPPER, FRONT, LEFT HAND (BLACK) (BUILT 3/02/09 AND AFTER)
-
11017261-067 ARM, CONTROL, UPPER, FRONT, RIGHT HAND (BLACK) (BUILT 3/02/09 AND AFTER)ARM, CONTROL, UPPER, FRONT, RIGHT HAND (BLACK) (BUILT 3/02/09 AND AFTER)
-
21016737-067 ARM, CONTROL, LOWER, FRONT LEFT HAND (BLACK) (BUILT 3/01/09 AND BEFORE)ARM, CONTROL, LOWER, FRONT LEFT HAND (BLACK) (BUILT 3/01/09 AND BEFORE)
-
21016738-067 ARM, CONTROL, LOWER, FRONT RIGHT HAND (BLACK) (BUILT 3/01/09 AND BEFORE)ARM, CONTROL, LOWER, FRONT RIGHT HAND (BLACK) (BUILT 3/01/09 AND BEFORE)
-
21017156-067 ARM, CONTROL, LOWER, FRONT LEFT HAND (BLACK) (BUILT 3/02/09 AND AFTER)ARM, CONTROL, LOWER, FRONT LEFT HAND (BLACK) (BUILT 3/02/09 AND AFTER)
-
21017157-067 ARM, CONTROL, LOWER, FRONT RIGHT HAND (BLACK) (BUILT 3/02/09 AND AFTER)ARM, CONTROL, LOWER, FRONT RIGHT HAND (BLACK) (BUILT 3/02/09 AND AFTER)
-
37710533 RING, RETAININGRING, RETAINING
-
47081505 JOINT, BALL (BUILT 5/01/09 AND BEFORE)JOINT, BALL (BUILT 5/01/09 AND BEFORE)
-
47081580 JOINT, BALL (BUILT 5/02/09 AND AFTER)JOINT, BALL (BUILT 5/02/09 AND AFTER)
-
57547405 NUT, NYLOKNUT, NYLOK
-
67519212 SCREW, FLANGESCREW, FLANGE
-
77080433 FITTING, LUBRICATINGFITTING, LUBRICATING
-
85436798 BUSHING, CONTROL ARMBUSHING, CONTROL ARM
-
95135270 SHAFT, A-ARMSHAFT, A-ARM
-
107518466 BOLT, FLANGEBOLT, FLANGE
-
117547313 NUT, FLANGENUT, FLANGE
-
125436657-070 SHIELD, CV, FRONT, LEFT HAND (BLACK)SHIELD, CV, FRONT, LEFT HAND (BLACK)
-
125436658-070 SHIELD, CV, FRONT, RIGHT HAND (BLACK)SHIELD, CV, FRONT, RIGHT HAND (BLACK)
-
137518513 SCREWSCREW
-
147556557 WASHERWASHER
