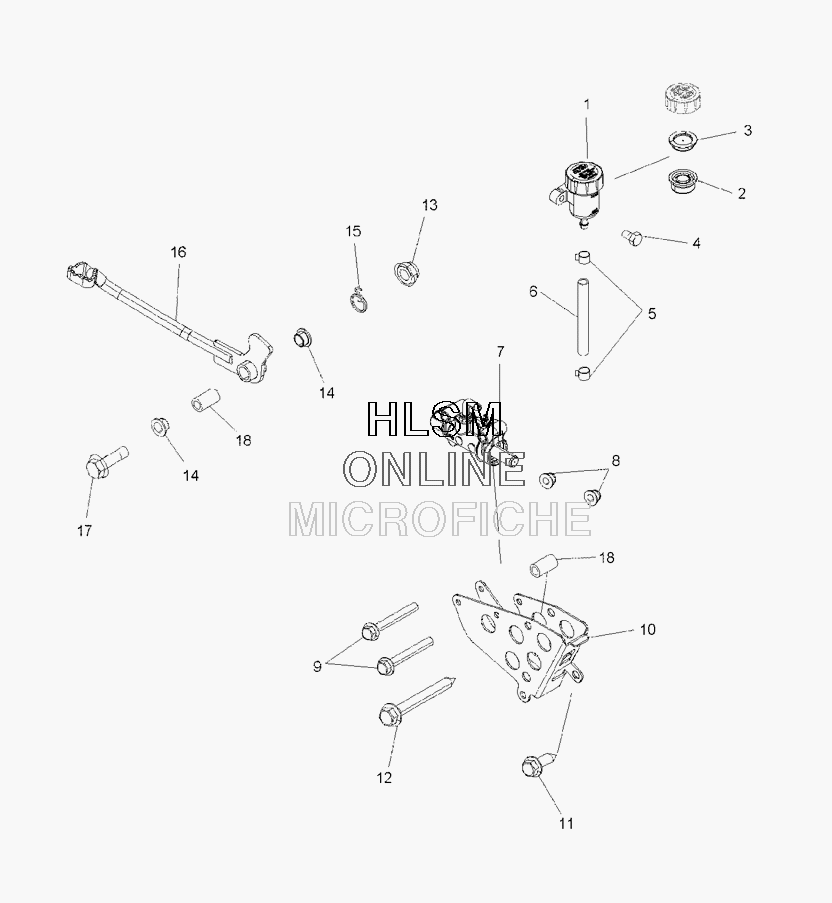

BRAKE - REAR MASTER CYLINDER W/ FOOT PEDAL для Polaris SPORTSMAN XP 850 (A09ZN85AX) (PAINTED GREEN) - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    1911224 ASM-RESERVOIR,BRAKE,TALL,2-EAR (INCL. 2,3, CAP)
    ASM-RESERVOIR,BRAKE,TALL,2-EAR (INCL. 2,3, CAP)
  • 2
    5413262 DIAPHRAGM-RESERVOIR,BRAKE
    DIAPHRAGM-RESERVOIR,BRAKE
  • 3
    5437041 RING-RESERVOIR,BRAKE
    RING-RESERVOIR,BRAKE
  • 4
    7518513 BOLT-M6X1.0X15,HXFLG,TAP/R-OD
    BOLT-M6X1.0X15,HXFLG,TAP/R-OD
  • 5
    7080003 CLAMP,HOSE
    CLAMP,HOSE
  • 6
    1911267-708 HOSE-RESERVOIR,BRAKE,708MM
    HOSE-RESERVOIR,BRAKE,708MM
  • 7
    1911347 ASM., MASTER CYLINDER
    ASM., MASTER CYLINDER
  • 8
    7547274 NUT-M6 FLANGE,NYLOK
    NUT-M6 FLANGE,NYLOK
  • 9
    7517950 SCR-M6X1.0X45 HX-FL-Y/D
    SCR-M6X1.0X45 HX-FL-Y/D
  • 10
    5251561 BRKT-BRAKE MOUNT
    BRKT-BRAKE MOUNT
  • 11
    7518555 BOLT-M8X1.25X20,HXFLG,TAP/R-OD
    BOLT-M8X1.25X20,HXFLG,TAP/R-OD
  • 12
    7518677 BOLT-M8X1.25X50,HXFLG,TAP/R-OD
    BOLT-M8X1.25X50,HXFLG,TAP/R-OD
  • 13
    7547333 NUT-M10X1.25,FLG,NYLOC-OLIVE D
    NUT-M10X1.25,FLG,NYLOC-OLIVE D
  • 14
    5433189 BUSHING-PEDAL PIVOT
    BUSHING-PEDAL PIVOT
  • 15
    7041750 SPRING-TORSION,BRAKE
    SPRING-TORSION,BRAKE
  • 16
    1911207-067 WELD-LEVER,BRAKE, BLACK
    WELD-LEVER,BRAKE, BLACK
  • 17
    7518559 BOLT-M10X1.25X50,HXFLG-OLIVE D
    BOLT-M10X1.25X50,HXFLG-OLIVE D
  • 18
    5135720 SPACER-12.7X10.2X30.5MM
    SPACER-12.7X10.2X30.5MM
