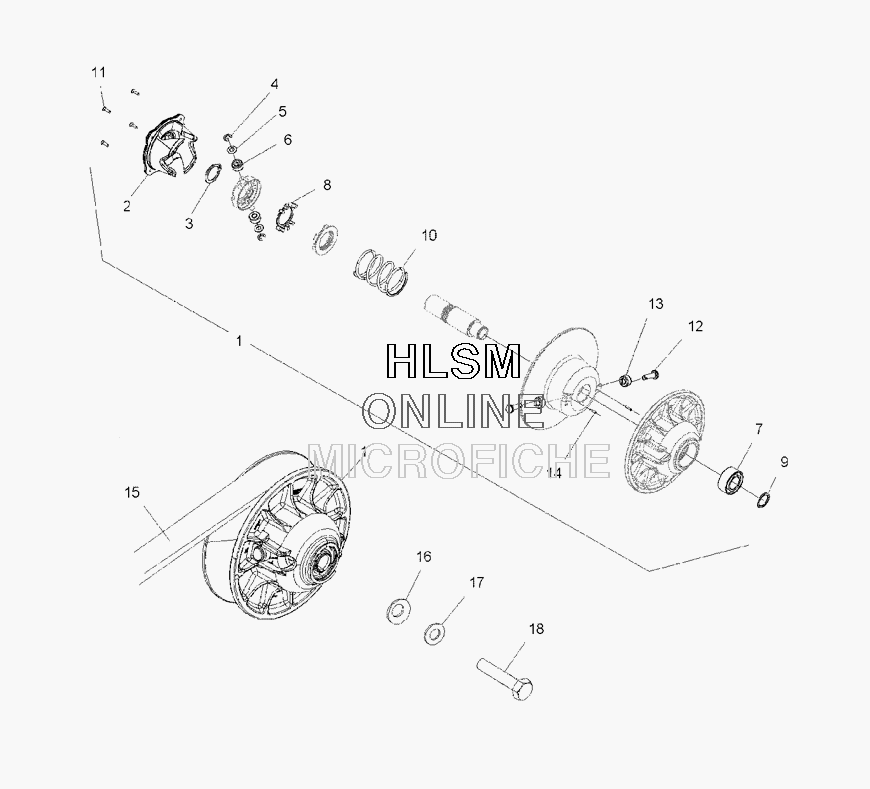

CLUTCH - SECONDARY для Polaris SPORTSMAN XP 850 (A09ZN85AQ) (NBU) - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    1322777 ASM-CLUTCH,DRIVEN,52,REV (INCL. 1-14)
    ASM-CLUTCH,DRIVEN,52,REV (INCL. 1-14)
  • 2
    3234620 ASM-CAM,52,500 BA,REV
    ASM-CAM,52,500 BA,REV
  • 3
    7710522 RET.RING-EXT 1.500
    RET.RING-EXT 1.500
  • 4
    7710523 RET.E-RING-E T.375
    RET.E-RING-E T.375
  • 5
    7556226 WASHER-THRUST
    WASHER-THRUST
  • 6
    3234207 ROLLER,CLUTCH
    ROLLER,CLUTCH
  • 7
    3234203 BEARING,BALL ANGULAR CONTACT
    BEARING,BALL ANGULAR CONTACT
  • 8
    7710564 RETAINER-SPRING,INNER
    RETAINER-SPRING,INNER
  • 9
    3234205 RING,RETAINING
    RING,RETAINING
  • 10
    3235621 SPRING
    SPRING
  • 11
    3234275 SCREW,CAP TORX SFH #10-32X.625
    SCREW,CAP TORX SFH #10-32X.625
  • 12
    3234201 PIN,ROLLER
    PIN,ROLLER
  • 13
    3234197 ROLLER,CLUTCH
    ROLLER,CLUTCH
  • 14
    3234202 PIN,SPRING SLOTTED .125X.625
    PIN,SPRING SLOTTED .125X.625
  • 15
    3211123 BELT-DRIVE
    BELT-DRIVE
  • 16
    5250562 WASHER-DOMED,SMALL
    WASHER-DOMED,SMALL
  • 17
    7552901 WASHER,SPRING LOCK
    WASHER,SPRING LOCK
  • 18
    7518935 BOLT-M8X1.25X95 HX BOLT
    BOLT-M8X1.25X95 HX BOLT
