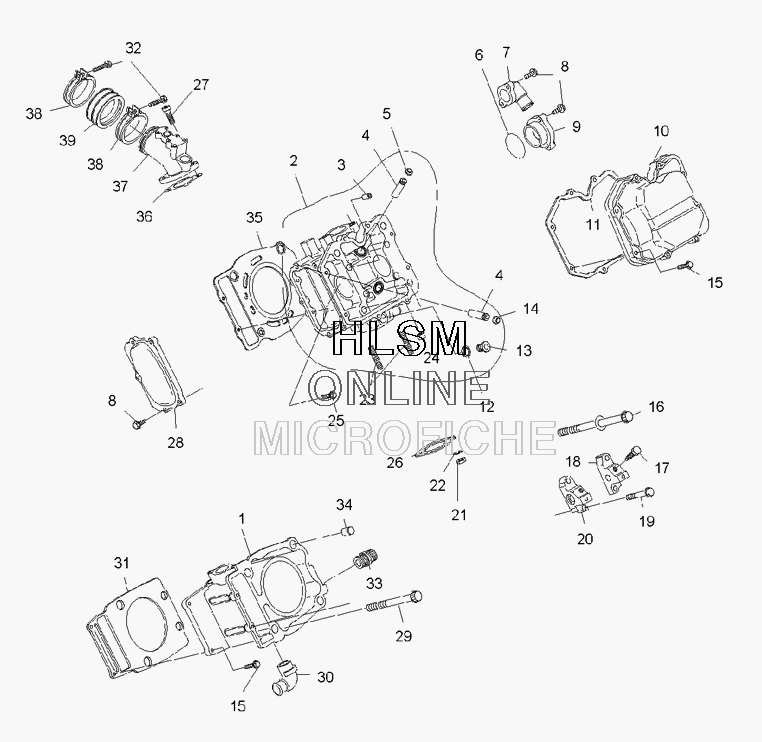

CYLINDER HEAD W/ CYLINDER для Polaris SPORTSMAN X2 500 EFI (A09TN50AZ) (RED/BLACK) - 2009 года выпуска
-
№АртикулНазвание
-
13089256 ASM-CYLINDER (INCL. 30)ASM-CYLINDER (INCL. 30)
-
23085527 ASM., HEAD, CYLINDER (INCL. 3-5, 12-14, 23, 24)ASM., HEAD, CYLINDER (INCL. 3-5, 12-14, 23, 24)
-
33084857 KNOCK, PIPEKNOCK, PIPE
-
43084994 GUIDE, VALVEGUIDE, VALVE
-
53084858 SEAL, INTAKE VALVESEAL, INTAKE VALVE
-
63084867 O-RINGO-RING
-
73084870 ADAPTER-WATER OUTADAPTER-WATER OUT
-
83084877 BOLT, FLANGEBOLT, FLANGE
-
93084866 ADAPTER, CAMSHAFTADAPTER, CAMSHAFT
-
103085073 COVER, ROCKERCOVER, ROCKER
-
113085074 GASKET, (ROCKER COVER)GASKET, (ROCKER COVER)
-
123084861 GASKETGASKET
-
133084860 PLUGPLUG
-
143084859 SEAL, EXHAUST VALVESEAL, EXHAUST VALVE
-
153087158 BOLT, FLANGEBOLT, FLANGE
-
163084875 BOLTBOLT
-
173085854 BOLT-ROCKER SHAFTBOLT-ROCKER SHAFT
-
183084864 SUPPORT, VALVE ROCKER SHAFT (PTO)SUPPORT, VALVE ROCKER SHAFT (PTO)
-
193084876 BOLTBOLT
-
203084863 SUPPORT, VALVE ROCKER SHAFT (MAG)SUPPORT, VALVE ROCKER SHAFT (MAG)
-
213087199 NUTNUT
-
223080051 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
233085326 STUDSTUD
-
243084862 PLUG, BLINDPLUG, BLIND
-
253086781 BOLT, FLANGEBOLT, FLANGE
-
263085075 ASM., GASKET (EXHAUST)ASM., GASKET (EXHAUST)
-
273081330 BOLT, SOCKET HEADBOLT, SOCKET HEAD
-
283089242 COVER-CAMSHAFTCOVER-CAMSHAFT
-
293084873 BOLT, FLANGEBOLT, FLANGE
-
303084130 PIPE-2, ELBOWPIPE-2, ELBOW
-
313089966 GASKET-CYLINDERGASKET-CYLINDER
-
323081497 SCREW, PAN HEADSCREW, PAN HEAD
-
333089956 UNION-OIL FILTERUNION-OIL FILTER
-
343087266 KNOCK, PIPEKNOCK, PIPE
-
353085371 ASM., GASKET, HEADASM., GASKET, HEAD
-
363085655 GASKET, INTAKE ADAPTERGASKET, INTAKE ADAPTER
-
373089898 PIPE-INTAKEPIPE-INTAKE
-
383084045 BAND-ASM ADAPTERBAND-ASM ADAPTER
-
393089748 ADAPTERADAPTER
