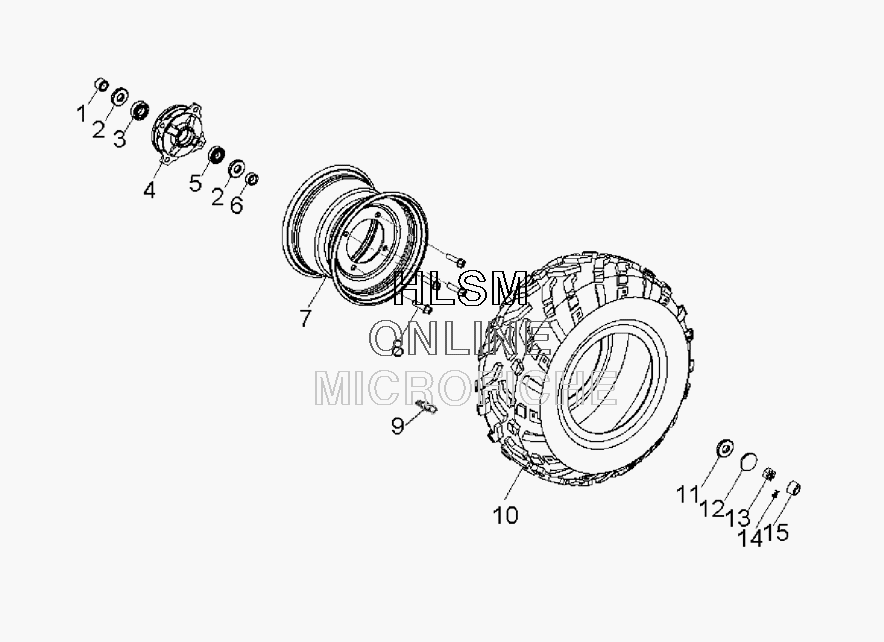

WHEEL - FRONT для Polaris SPORTSMAN 90 (A09FA09AA) (SAGE BRUSH) - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    0450390 SPACER,INNER
    SPACER,INNER
  • 2
    0450389 SEAL-OIL
    SEAL-OIL
  • 3
    0454013 ASM-BEARING,WHEEL
    ASM-BEARING,WHEEL
  • 4
    0450885-385 DRUM-BRAKE,UN 45130131001,SLVR
    DRUM-BRAKE,UN 45130131001,SLVR
  • 5
    0454014 ASM-BEARING,WHEEL
    ASM-BEARING,WHEEL
  • 6
    0450391 SPACER,OUTER
    SPACER,OUTER
  • 7
    0450749-067 RIM-WHEEL BLACK 42701-153-000
    RIM-WHEEL BLACK 42701-153-000
  • 7
    0450749-385 RIM-WHEEL,SILVER
    RIM-WHEEL,SILVER
  • 8
    0450124 BOLT-HEX WSHR FACE
    BOLT-HEX WSHR FACE
  • 9
    0450401 VALVE,RIM
    VALVE,RIM
  • 10
    0450950 TIRE,19X7-8
    TIRE,19X7-8
  • 11
    0453511 WASHER-WHEEL ASM,FRONT
    WASHER-WHEEL ASM,FRONT
  • 12
    0453514 WASHER-WHEEL
    WASHER-WHEEL
  • 13
    0450394 NUT-LOCK
    NUT-LOCK
  • 14
    0450395 PIN-COTTER
    PIN-COTTER
  • 15
    0450829 CAP-RUBBER
    CAP-RUBBER
