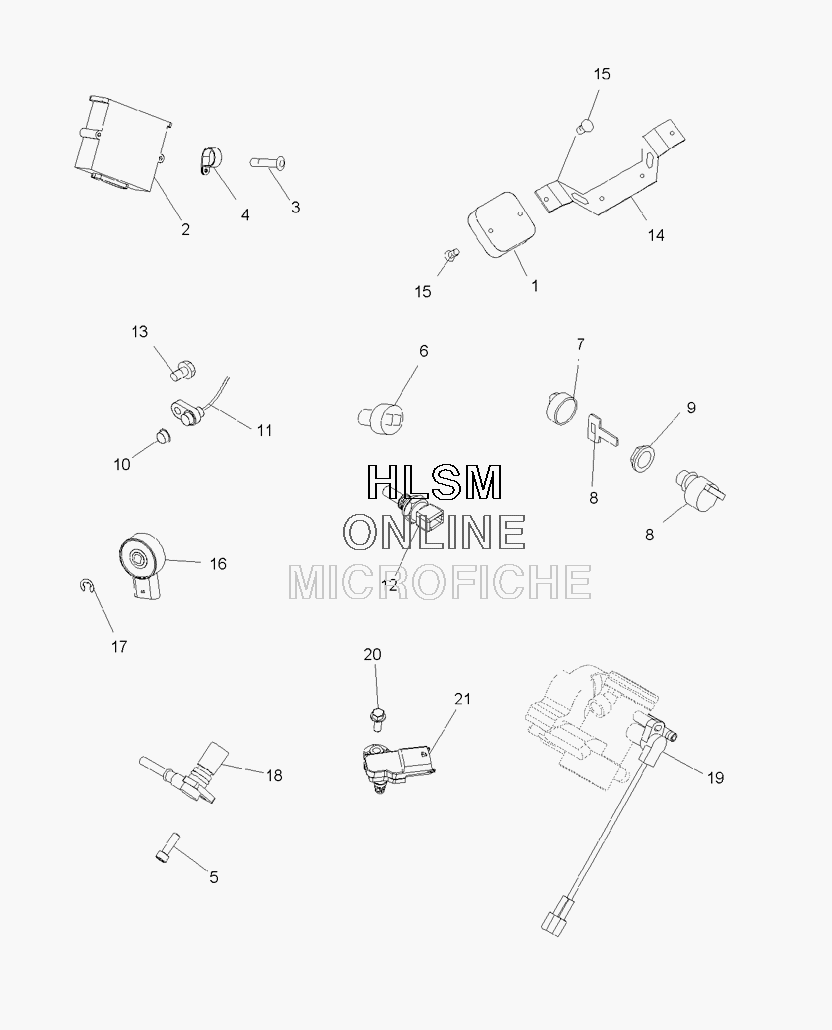

CONTROL MODULES - SWITCHES/SENSORS для Polaris SPORTSMAN 800 EFI HO (A09MN76AZ) (RED/BLACK) - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    4011925 REGULATOR-3PH, TALL FIN, SEALED
    REGULATOR-3PH, TALL FIN, SEALED
  • 2
    4011599 ECU-1.1B, NO START, COMMON
    ECU-1.1B, NO START, COMMON
  • 3
    7518486 SCREW-10-24X2, TX/PH, TAP-R
    SCREW-10-24X2, TX/PH, TAP-R
  • 4
    7080585 CLAMP, 1''HOSE
    CLAMP, 1''HOSE
  • 5
    7517384 SCREW, SOCHD, M6X20
    SCREW, SOCHD, M6X20
  • 6
    4110164 SWITCH, STOPLIGHT (BRAKE LIGHTS)
    SWITCH, STOPLIGHT (BRAKE LIGHTS)
  • 7
    5433534 KEY COVER-KEYSWITCH
    KEY COVER-KEYSWITCH
  • 8
    4012165 SWITCH-KEY, 3 POS, MT SLV (INCL. KEY)
    SWITCH-KEY, 3 POS, MT SLV (INCL. KEY)
  • 8
    4010278 KEY BLANK (20/21/67/68) SERIES (SEE NOTE)
    KEY BLANK (20/21/67/68) SERIES (SEE NOTE)
  • 8
    4010321 KEY BLANK (22/23/27/28) SERIES (SEE NOTE)
    KEY BLANK (22/23/27/28) SERIES (SEE NOTE)
  • 9
    5433733 NUT, IGNITION SWITCH
    NUT, IGNITION SWITCH
  • 10
    5132382 CAP-HALL SENSOR
    CAP-HALL SENSOR
  • 11
    4011640 SENSOR-HALL EFFECT, 32''
    SENSOR-HALL EFFECT, 32''
  • 12
    4010644 SENSOR-THERMISTER
    SENSOR-THERMISTER
  • 13
    7517658 SCREW
    SCREW
  • 14
    5248725 BRKT-MOUNT, VOLTAGE REG, PLATED
    BRKT-MOUNT, VOLTAGE REG, PLATED
  • 15
    7512024 SCREW
    SCREW
  • 16
    3233835 SWITCH-ROTARY, 6 PIN
    SWITCH-ROTARY, 6 PIN
  • 17
    3233834 RING-RETAINING
    RING-RETAINING
  • 18
    2410720 SENSOR-CRANK POSITION
    SENSOR-CRANK POSITION
  • 19
    2410342 SENSOR-THROTTLE POSITION KEIHN
    SENSOR-THROTTLE POSITION KEIHN
  • 20
    7517658 SCREW
    SCREW
  • 21
    2410422 SENSOR-T MAP
    SENSOR-T MAP
