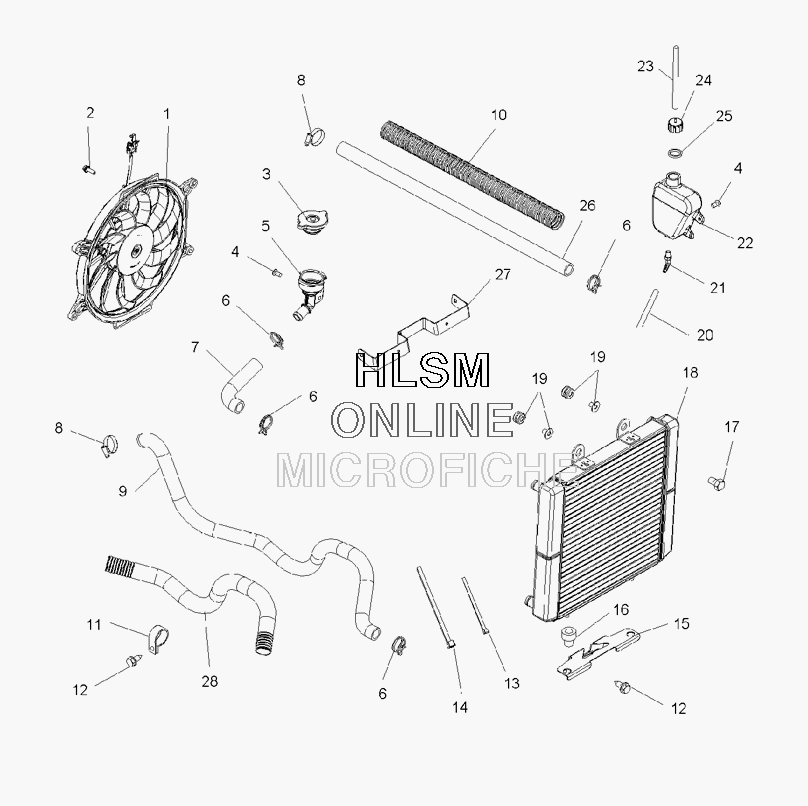

COOLING SYSTEM для Polaris SPORTSMAN 500 HO (A09MH50AX) (GREEN) - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    2410383 ASM-FAN AND MOTOR,SPAL,11''
    ASM-FAN AND MOTOR,SPAL,11''
  • 2
    7517975 BOLT-M6 HEX HD
    BOLT-M6 HEX HD
  • 3
    1240044 CAP-PRESSURE,13 PSI
    CAP-PRESSURE,13 PSI
  • 4
    7512084 SCREW
    SCREW
  • 5
    5412402 FILLER NECK
    FILLER NECK
  • 6
    7080826 CLAMP-ROTO CLIP
    CLAMP-ROTO CLIP
  • 7
    5412405 HOSE-FILLER NECK
    HOSE-FILLER NECK
  • 8
    7080696 CLAMP,HOSE,1.25,WORM DRIVE
    CLAMP,HOSE,1.25,WORM DRIVE
  • 9
    5412404 HOSE-LOWER,ENGINE
    HOSE-LOWER,ENGINE
  • 10
    5521550 PLASTIC,HOSEGUARD 18''
    PLASTIC,HOSEGUARD 18''
  • 11
    7080908 CLAMP,HOSE 1.375,VNL ECOATED
    CLAMP,HOSE 1.375,VNL ECOATED
  • 12
    7517386 SCREW
    SCREW
  • 13
    7080138 CABLE TIE
    CABLE TIE
  • 14
    7080492 CABLE TIE,11 INCH
    CABLE TIE,11 INCH
  • 15
    5247047-067 BRKT-RADIATOR,LOWER, BLACK
    BRKT-RADIATOR,LOWER, BLACK
  • 16
    5410584 BUSHING-MOUNT,LOWER RADIATOR
    BUSHING-MOUNT,LOWER RADIATOR
  • 17
    7515179 SCREW
    SCREW
  • 18
    1240426 RADIATOR-CORE,CROSSFLOW
    RADIATOR-CORE,CROSSFLOW
  • 19
    5411975 GROMMET/INSERT-ASM
    GROMMET/INSERT-ASM
  • 20
    8450003-1525 LINE,FUEL,1/4 ID(1525 CM.)
    LINE,FUEL,1/4 ID(1525 CM.)
  • 21
    7052065 FITTING,90 DEGREE
    FITTING,90 DEGREE
  • 22
    5436936 TANK-SURGE
    TANK-SURGE
  • 23
    8360009-600 LINE,FUEL,1/8 ID,600 CM.
    LINE,FUEL,1/8 ID,600 CM.
  • 24
    5437635 CAP-OVERFLOW BOTTLE,W/FITTING
    CAP-OVERFLOW BOTTLE,W/FITTING
  • 25
    5810279 GASKET
    GASKET
  • 26
    5412403 HOSE-UPPER,ENGINE
    HOSE-UPPER,ENGINE
  • 27
    5246754-067 BRKT-RADIATOR,UPPER, BLACK
    BRKT-RADIATOR,UPPER, BLACK
  • 28
    5521750 GUARD-HOSE,22''
    GUARD-HOSE,22''
