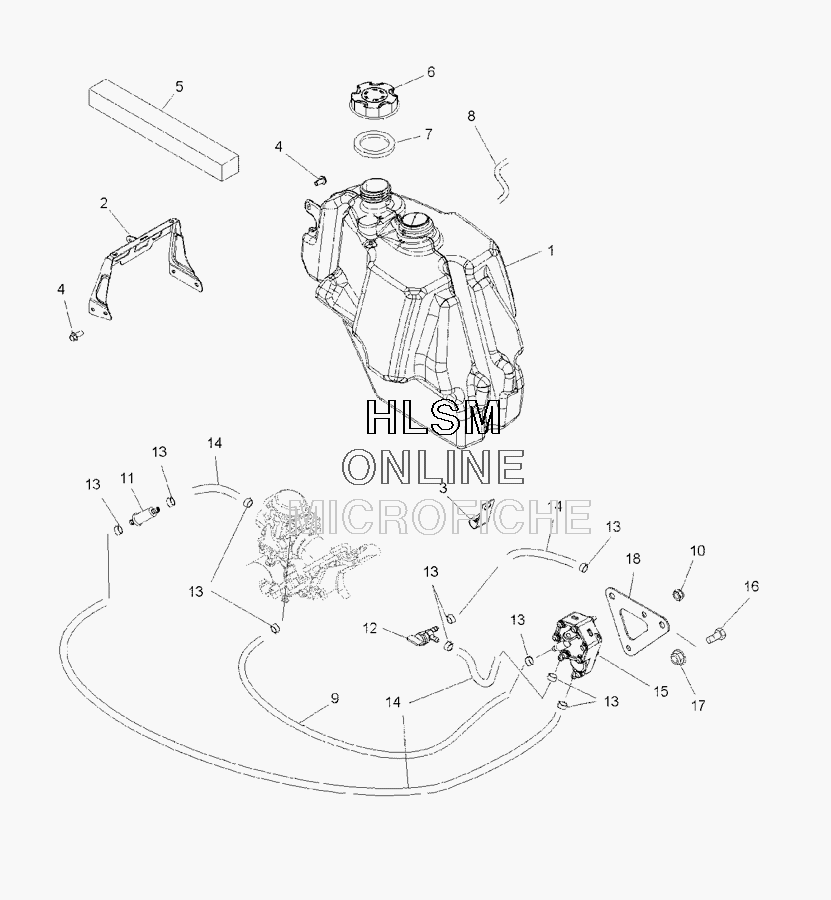

FUEL TANK для Polaris SPORTSMAN 400 HO 4X4 (A09LH46AX) (GREEN/BLACK) - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    2520956 ASM-TANK,FUEL,7 LAYER,GAUGE (INCL. GAUGE)
    ASM-TANK,FUEL,7 LAYER,GAUGE (INCL. GAUGE)
  • 2
    1016190-329 WELD-FUEL TANK BRACKET,E-COAT
    WELD-FUEL TANK BRACKET,E-COAT
  • 3
    7080884 CLIP,J
    CLIP,J
  • 4
    7518529 SCR-M6X1.0X20,HXHD,FLG,TDFM,BL
    SCR-M6X1.0X20,HXHD,FLG,TDFM,BL
  • 5
    5813277 FOAM-SEAL,1.5X15
    FOAM-SEAL,1.5X15
  • 6
    5433687 CAP,GAS TANK
    CAP,GAS TANK
  • 7
    5812123 GASKET
    GASKET
  • 8
    8360009-600 LINE,FUEL,1/8 ID,600 CM.
    LINE,FUEL,1/8 ID,600 CM.
  • 9
    8450040-600 LINE FUEL,1/4 ID(600 CM.)
    LINE FUEL,1/4 ID(600 CM.)
  • 10
    7546601 NUT, NYLOK
    NUT, NYLOK
  • 11
    2530009 FILTER,SMALL,IN-LINE,
    FILTER,SMALL,IN-LINE,
  • 12
    7052249 VALVE-FUEL,PLASTIC 90°,1/4HOSE
    VALVE-FUEL,PLASTIC 90°,1/4HOSE
  • 13
    7080003 CLAMP,HOSE
    CLAMP,HOSE
  • 14
    8450117-250 FUEL HOSE-250 CM
    FUEL HOSE-250 CM
  • 15
    3088070 ASM.,FUEL PUMP
    ASM.,FUEL PUMP
  • 16
    7518925 SCR-6MMX1X20 HX/CP
    SCR-6MMX1X20 HX/CP
  • 17
    7547339 NUT-M6X1.0,FLG-NYLOC-OLIVE D
    NUT-M6X1.0,FLG-NYLOC-OLIVE D
  • 18
    5252762 BRKT-MNT,FUEL PUMP
    BRKT-MNT,FUEL PUMP
