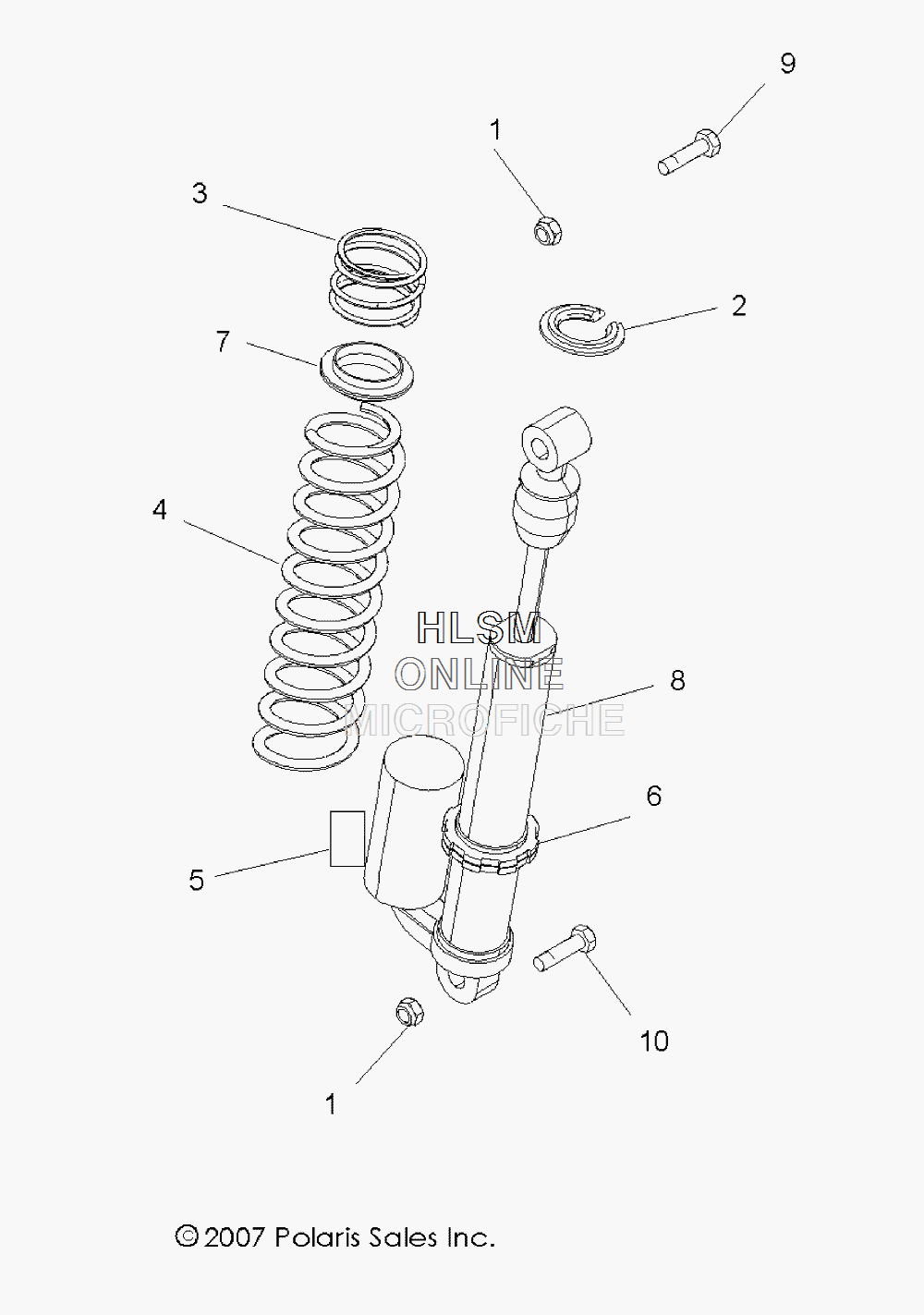

SUSPENSION - REAR SHOCK для Polaris SCRAMBLER 500 4X4 INTL (A09BG50FA) (SCREAMIN (YELLOW) - 2009 года выпуска`
-
№АртикулНазвание
-
17542439 NUT, NYLOKNUT, NYLOK
-
25251753 RETAINER, SPRINGRETAINER, SPRING
-
37041865-216 SPRING, COMPRESSION, 180 (SCREAMIN' YELLOW)SPRING, COMPRESSION, 180 (SCREAMIN' YELLOW)
-
47041864-216 SPRING, COMPRESSION, 280 (SCREAMIN' YELLOW)SPRING, COMPRESSION, 280 (SCREAMIN' YELLOW)
-
57075343 DECAL, WARNING, FOX SHOCKDECAL, WARNING, FOX SHOCK
-
61500278 RING, SPRING PRELOADRING, SPRING PRELOAD
-
75433550 SPACER, SPRINGSPACER, SPRING
-
87041867 SHOCK, REARSHOCK, REAR
-
97515415 SCREWSCREW
-
107517761 SCREWSCREW
