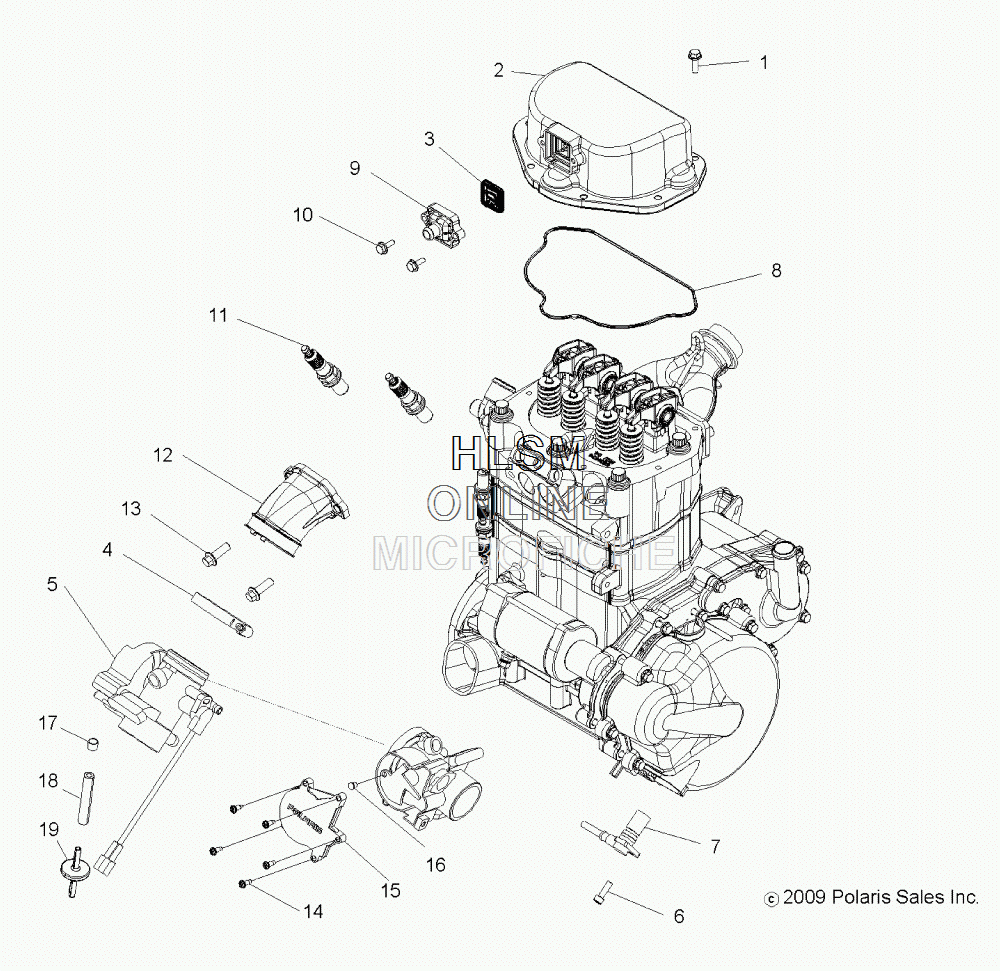

THROTTLE BODY AND VALVE COVER для Polaris RZR S 800 EFI SUNSET RED INT [R09VH76fX] - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    7516822 SCREW
    SCREW
  • 2
    5136099 COVER, VALVE
    COVER, VALVE
  • 3
    3021352 ASM., REED W/GASKET
    ASM., REED W/GASKET
  • 4
    7081193 CLAMP, HOSE
    CLAMP, HOSE
  • 5
    1202836 ASM., THROTTLE BODY (BUILT 9/01/08 AND BEFORE) (INCL. THROTTLE POSITION SENSOR, O-RING
    ASM., THROTTLE BODY (BUILT 9/01/08 AND BEFORE) (INCL. THROTTLE POSITION SENSOR, O-RING
  • 5
    1203944 ASM., THROTTLE BODY (BUILT 9/02/08 AND AFTER) (INCL. THROTTLE POSITION SENSOR, O-RING)
    ASM., THROTTLE BODY (BUILT 9/02/08 AND AFTER) (INCL. THROTTLE POSITION SENSOR, O-RING)
  • 5
    2410342 SENSOR, THROTTLE POSITION (MUST ALSO ORDER O-RING)
    SENSOR, THROTTLE POSITION (MUST ALSO ORDER O-RING)
  • 5
    5413812 O-RING, TPS (USED W/2410342)
    O-RING, TPS (USED W/2410342)
  • 6
    7517384 SCREW
    SCREW
  • 7
    2410720 SENSOR, CRANK POSITION
    SENSOR, CRANK POSITION
  • 8
    5412632 SEAL, VALVE COVER
    SEAL, VALVE COVER
  • 9
    5432533 COVER, BREATHER
    COVER, BREATHER
  • 10
    7516607 SCREW
    SCREW
  • 11
    3021671 PLUG, SPARK, CHAMPION RC7YC3
    PLUG, SPARK, CHAMPION RC7YC3
  • 12
    1253564 ADAPTER
    ADAPTER
  • 13
    7516734 SCREW
    SCREW
  • 14
    3131515 SCREW, SHOULDER
    SCREW, SHOULDER
  • 15
    1202578 ASM., COVER W/O-RING
    ASM., COVER W/O-RING
  • 16
    3131514 GUIDE, THROTTLE CABLE
    GUIDE, THROTTLE CABLE
  • 17
    7080307 CLAMP, HOSE
    CLAMP, HOSE
  • 18
    8450113 HOSE
    HOSE
  • 19
    7052038 VALVE, CHECK
    VALVE, CHECK
