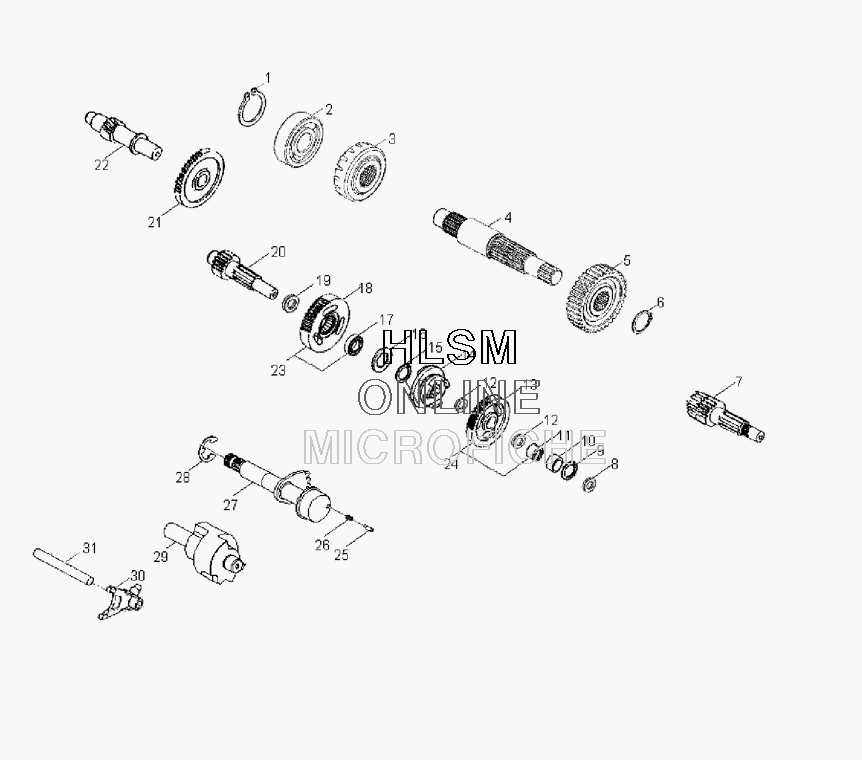

TRANSMISSION - INTERNALS для Polaris PHOENIX 200 (A09PB250AD) (PINK) - 2009 года выпуска
-
№АртикулНазвание
-
10452339 CLIP RETAINERCLIP RETAINER
-
20452349 BEARING-BALLBEARING-BALL
-
30452531 FINAL RING GEARFINAL RING GEAR
-
40452528 SHAFTSHAFT
-
50453124 GEAR-FINALGEAR-FINAL
-
60453779 CLIP-CIR, TRANSMISSIONCLIP-CIR, TRANSMISSION
-
70452525 SHAFT-DRIVESHAFT-DRIVE
-
80453123 WASHER, FLATWASHER, FLAT
-
90450187 CIRCLIP-EXTERNALCIRCLIP-EXTERNAL
-
100453120 COLLAR-SHAFTCOLLAR-SHAFT
-
110452516 BUSHING-SPUR GEARBUSHING-SPUR GEAR
-
120452513 WASHER-FLATWASHER-FLAT
-
130452448 ASM-FLYWHEELASM-FLYWHEEL
-
140452449 ASM-STATORASM-STATOR
-
150452789 RING-RETAININGRING-RETAINING
-
160452518 WASHER-SPLINEWASHER-SPLINE
-
170452521 BEARING-NEEDLEBEARING-NEEDLE
-
180452520 GEAR-REVERSEGEAR-REVERSE
-
190452522 WASHER-FLATWASHER-FLAT
-
200453122 SHAFT-TRANSMISSIONSHAFT-TRANSMISSION
-
210452527 GEAR-COUNTERGEAR-COUNTER
-
220452526 SHAFT-COUNTERSHAFT-COUNTER
-
230452519 ASM-REVERSE GEAR (INCL. 17, 18)ASM-REVERSE GEAR (INCL. 17, 18)
-
240454229 ASM, GEAR (INCL. 11, 13)ASM, GEAR (INCL. 11, 13)
-
250452163 ROLLER-DRUM SENSORROLLER-DRUM SENSOR
-
260452162 SPRING-DRUM SENSORSPRING-DRUM SENSOR
-
270454230 SHAFTSHAFT
-
280452161 E-CLIPE-CLIP
-
290454231 ASM-DRUM,GEAR SHIFTASM-DRUM,GEAR SHIFT
-
300452157 FORK-SHIFTFORK-SHIFT
-
310452158 SHAFT-GEAR SHIFTSHAFT-GEAR SHIFT
