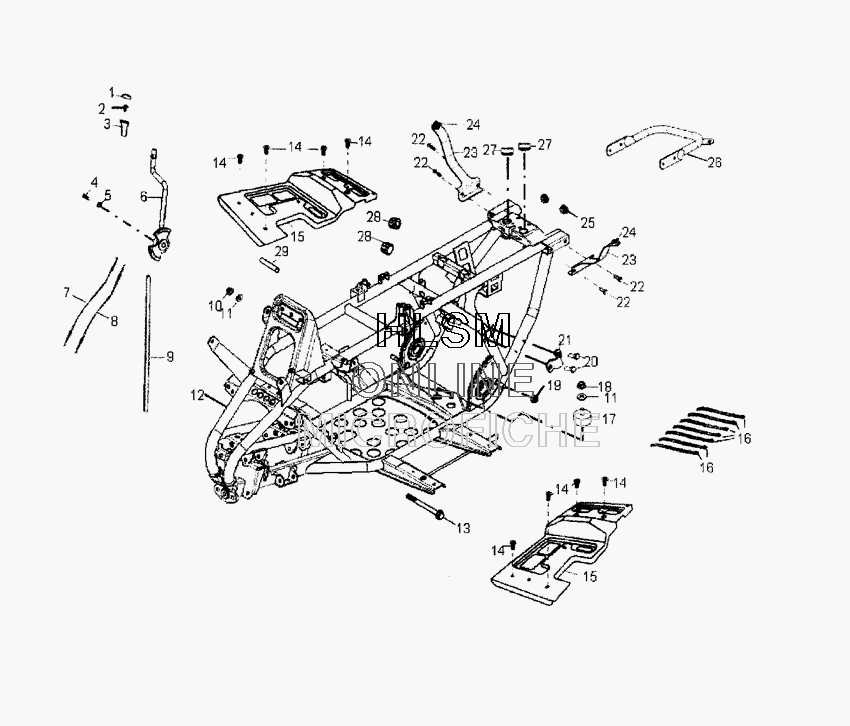

FRAME для Polaris PHOENIX 200 (A09PB250AB) (RED) - 2009 года выпуска`
-
№АртикулНазвание
-
10450967 COVER-TRANSMISSION LEVER KNOBCOVER-TRANSMISSION LEVER KNOB
-
20450309 BOLT-HEXBOLT-HEX
-
30452168 KNOB-TRANSMISSION LEVERKNOB-TRANSMISSION LEVER
-
40450298 BOLT-HEXBOLT-HEX
-
50452198 WASHER-FLATWASHER-FLAT
-
60454232 MOUNTMOUNT
-
70454233 CABLE-SHIFTCABLE-SHIFT
-
80454234 CABLE-SHIFTCABLE-SHIFT
-
90452603 TRIM-RUBBERTRIM-RUBBER
-
100450276 NUT-LOCKNUT-LOCK
-
110450279 WASHERWASHER
-
120454235-067 FRAMEFRAME
-
131452599 BOLT-HEX, SEMSBOLT-HEX, SEMS
-
140453242 BOLT-FLAT HEAD, PHILLIPSBOLT-FLAT HEAD, PHILLIPS
-
150452594 PLATE-FOOTWELLPLATE-FOOTWELL
-
160450559 STRAPSTRAP
-
170452592 MOUNT-ENGINEMOUNT-ENGINE
-
180450882 NUT-LOCK, NYLON 90350-10000-UCNUT-LOCK, NYLON 90350-10000-UC
-
190452799 NUT-HEX (KICK STARTER)NUT-HEX (KICK STARTER)
-
200453762 BOLTBOLT
-
210452602 BRKT-KICK STARTBRKT-KICK START
-
220453126 BOLT-HEX, W/LOCK WASHERBOLT-HEX, W/LOCK WASHER
-
230452593 BRKT-CAB SUPPORTBRKT-CAB SUPPORT
-
240450800 RUBBERRUBBER
-
250453125 CAP-RUBBERCAP-RUBBER
-
260453261-067 GRAB BAR-REAR, BLACKGRAB BAR-REAR, BLACK
-
270450290 RUBBER, SEAT 77220-131-000RUBBER, SEAT 77220-131-000
-
280452591 GROMMET-SEATGROMMET-SEAT
-
290452596 DAMPNER-FOOT BRAKE LEVERDAMPNER-FOOT BRAKE LEVER
