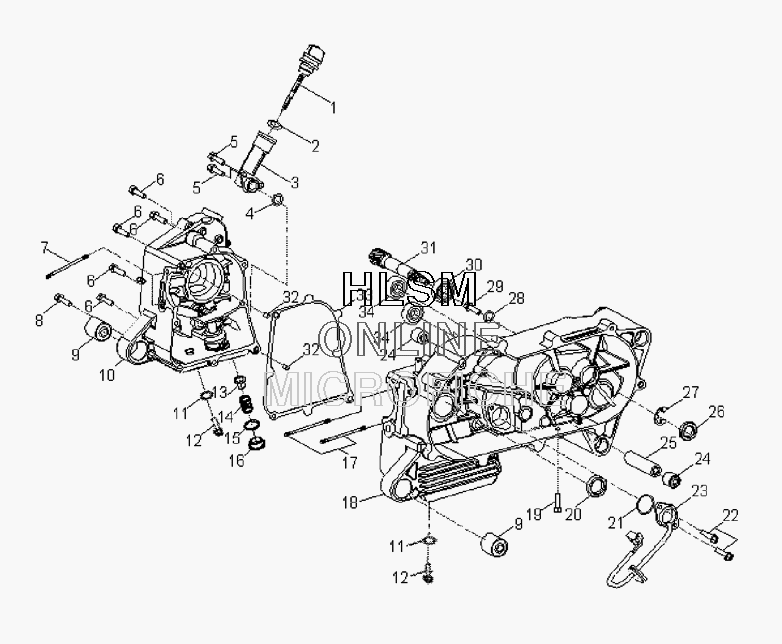

CRANKCASE для Polaris OUTLAW 90 (A09KA9AB) (RED) - 2009 года выпуска

  • №
    Артикул
    Название
  • -
    0454106 ASM-ENG, 4STRK 90, W/OCARB, 07 YTH
    ASM-ENG, 4STRK 90, W/OCARB, 07 YTH
  • 1
    0453542 GAUGE-OIL
    GAUGE-OIL
  • 2
    0453508 O-RING-OIL, DIPSTICK
    O-RING-OIL, DIPSTICK
  • 3
    0453611 NECK-OIL, FILLER
    NECK-OIL, FILLER
  • 4
    0453827 O'RING-ACRYLIC
    O'RING-ACRYLIC
  • 5
    0453519 BOLT
    BOLT
  • 6
    0453612 BOLT
    BOLT
  • 7
    0453613 STUD-BOLT, CRANKCASE
    STUD-BOLT, CRANKCASE
  • 8
    0453614 BOLT
    BOLT
  • 9
    0450587 BUSHING-RUBBER 96400-102831
    BUSHING-RUBBER 96400-102831
  • 10
    0453615 CRANKCASE-RIGHT HAND
    CRANKCASE-RIGHT HAND
  • 11
    0452133 WASHER-FLAT
    WASHER-FLAT
  • 12
    0452132 BOLT-HEX, WASHER FACE
    BOLT-HEX, WASHER FACE
  • 13
    0452369 SCREEN-OIL
    SCREEN-OIL
  • 14
    0452370 SPRING-OIL SCREEN
    SPRING-OIL SCREEN
  • 15
    0452371 O-RING, DRAIN PLUG
    O-RING, DRAIN PLUG
  • 16
    0452368 PLUG-DRAIN, OIL
    PLUG-DRAIN, OIL
  • 17
    0453616 STUD-BOLT, CRANKCASE
    STUD-BOLT, CRANKCASE
  • 18
    0453330 COVER-CLUTCH
    COVER-CLUTCH
  • 19
    0450325 BOLT
    BOLT
  • 20
    0453522 SEAL-OIL, CRANKCASE
    SEAL-OIL, CRANKCASE
  • 21
    0452129 O-RING-GEAR POSITION SENSOR
    O-RING-GEAR POSITION SENSOR
  • 22
    0452138 BOLT-HEX, FLANGE
    BOLT-HEX, FLANGE
  • 23
    0452128 SENSOR-GEAR POSITION
    SENSOR-GEAR POSITION
  • 24
    0451139 BUSHING-RUBBER
    BUSHING-RUBBER
  • 25
    0453617 SPACER-COLLAR, CRANKCASE
    SPACER-COLLAR, CRANKCASE
  • 26
    0450200 SEAL-OIL
    SEAL-OIL
  • 27
    0450198 CIRCLIP-EXTERNAL
    CIRCLIP-EXTERNAL
  • 28
    0453460 WASHER-PLAIN
    WASHER-PLAIN
  • 29
    0450158 BOLT-SOCKET, HEX
    BOLT-SOCKET, HEX
  • 30
    0450199 BEARING
    BEARING
  • 31
    0453456 SHAFT-DRIVE
    SHAFT-DRIVE
  • 32
    0452342 PIN-DOWEL
    PIN-DOWEL
  • 33
    0453419 GASKET-CRANKCASE
    GASKET-CRANKCASE
  • 34
    0450254 BEARING-BALL
    BEARING-BALL
