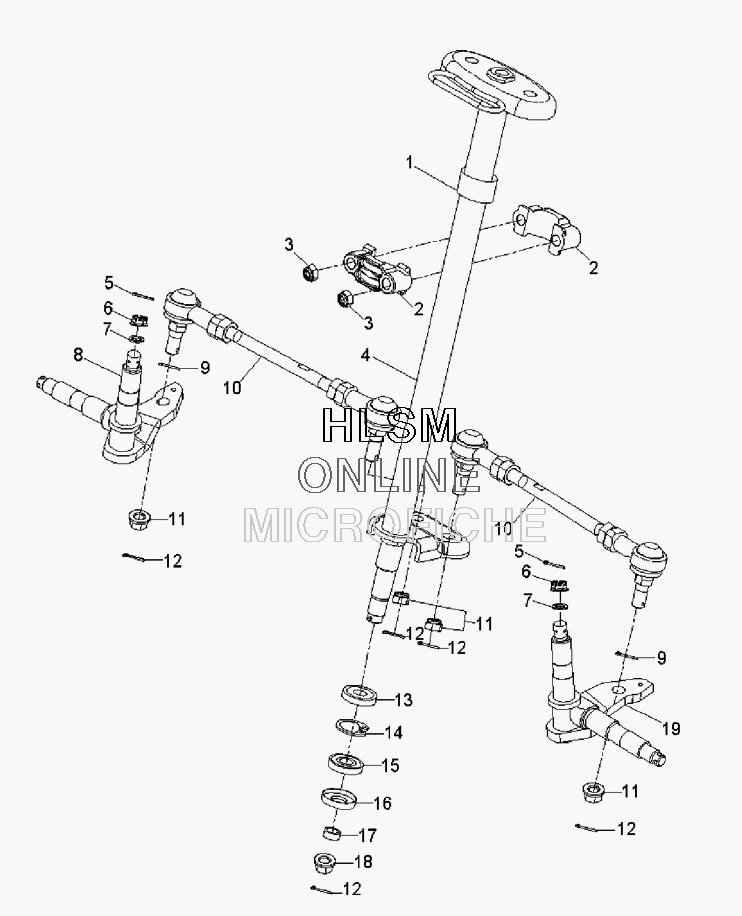

STEERING POST W/TIE RODS для Polaris OUTLAW 50 (A09KA05AB) (RED) - 2009 года выпуска
-
№АртикулНазвание
-
10450499 SLEEVE, STEERING, SHAFTSLEEVE, STEERING, SHAFT
-
20450505 HOLDER, STEERING SHAFTHOLDER, STEERING SHAFT
-
30450268 NUT-FLANGENUT-FLANGE
-
40451797-067 POST-STEERING, BLACKPOST-STEERING, BLACK
-
50450507 PIN-COTTERPIN-COTTER
-
60450502 NUT-LOCKNUT-LOCK
-
70453513 WASHER-POST, STEERINGWASHER-POST, STEERING
-
80450916 KNUCKLE, LEFT HANDKNUCKLE, LEFT HAND
-
90450395 PIN-COTTERPIN-COTTER
-
100451798 ASM-TIE RODASM-TIE ROD
-
110450276 NUT-LOCKNUT-LOCK
-
120450719 PIN-COTTERPIN-COTTER
-
130450491 SEAL-OILSEAL-OIL
-
140450161 CIRCLIP-INTERNALCIRCLIP-INTERNAL
-
150450493 BEARING-BALLBEARING-BALL
-
160450389 SEAL-OILSEAL-OIL
-
170450390 SPACER, INNERSPACER, INNER
-
180450878 NUT-LOCK, NYLONNUT-LOCK, NYLON
-
190450917 KNUCKLE, RIGHT HANDKNUCKLE, RIGHT HAND
