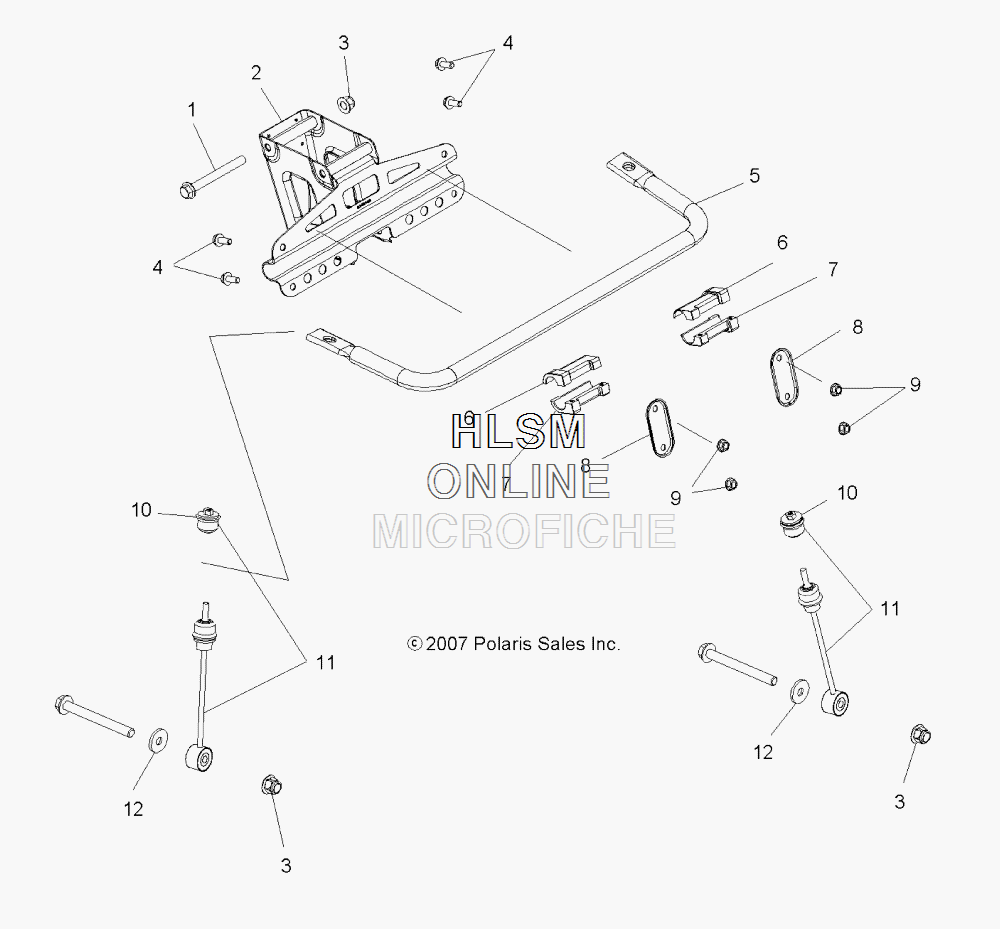

SUSPENSION - TORSION BAR для Polaris HAWKEYE 300 2X4 (A09LB27AA) (INDY RED) - 2009 года выпуска
-
№АртикулНазвание
-
17518526 SCREW, FLANGESCREW, FLANGE
-
21015187-067 MOUNT, STABILIZER (BLACK)MOUNT, STABILIZER (BLACK)
-
37547313 NUT, FLANGENUT, FLANGE
-
47518702 BOLT, FLANGEBOLT, FLANGE
-
55335197-067 BAR, STABILIZER (BLACK)BAR, STABILIZER (BLACK)
-
65436343 BUSHING, STABILIZERBUSHING, STABILIZER
-
75436344 BUSHING, TORSION BARBUSHING, TORSION BAR
-
85249464 PLATE, RETAINERPLATE, RETAINER
-
97547317 NUT, FLANGENUT, FLANGE
-
105413295 BUSHINGBUSHING
-
115135941 LINKAGE, TORSION BARLINKAGE, TORSION BAR
-
127555852 WASHER, FLATWASHER, FLAT
