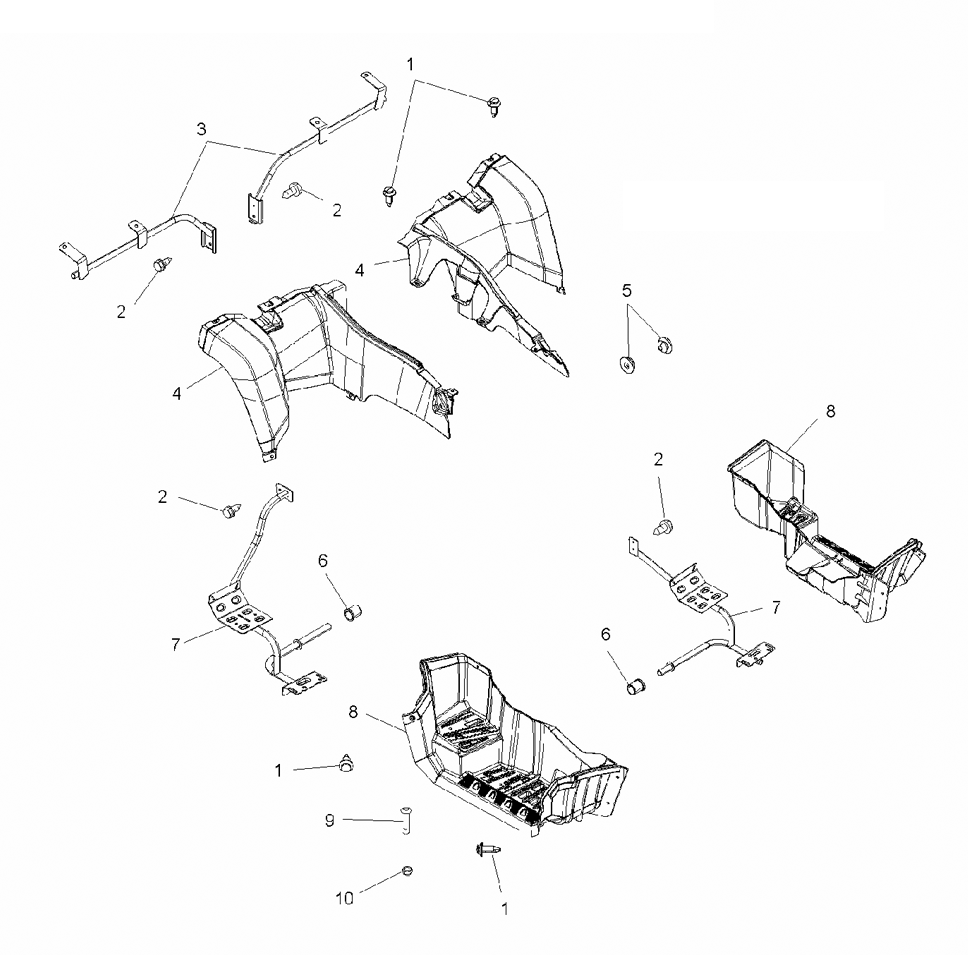

FENDER - REAR W/ SEAT для Polaris SPORTSMAN X2 500 EFI (TN50AZ) (INDY RED) - 2008 года выпуска`
-
№АртикулНазвание
-
17661855 RIVET-TUFLOK, .315-.325X.787RIVET-TUFLOK, .315-.325X.787
-
27512232 BOLTBOLT
-
31015266-067 WELD-FENDER SUPPORT, LEFT HAND, TREK, BKWELD-FENDER SUPPORT, LEFT HAND, TREK, BK
-
31015267-067 WELD-FENDER SUPPORT, RIGHT HAND, TREK, BKWELD-FENDER SUPPORT, RIGHT HAND, TREK, BK
-
45436130-293 CAB-REAR, LEFT HAND, REDCAB-REAR, LEFT HAND, RED
-
45436546-293 CAB-REAR, RIGHT HAND, REDCAB-REAR, RIGHT HAND, RED
-
55412623 GROMMET-RUBBER MOUNTGROMMET-RUBBER MOUNT
-
65433369 BUSHING-TORSION BARBUSHING-TORSION BAR
-
71015808-329 WELD-PASS FOOTWELL, LEFT HAND, E-COATWELD-PASS FOOTWELL, LEFT HAND, E-COAT
-
71016239-329 WELD-PASS FOOTWELL, RIGHT HAND, E-COATWELD-PASS FOOTWELL, RIGHT HAND, E-COAT
-
85436134-070 FOOTWELL-BASIC, LEFT HANDFOOTWELL-BASIC, LEFT HAND
-
85436135-070 FOOTWELL-RIGHT HAND, BLACKFOOTWELL-RIGHT HAND, BLACK
-
97517230 SCREWSCREW
-
107542122 NUT-NYLOKNUT-NYLOK
