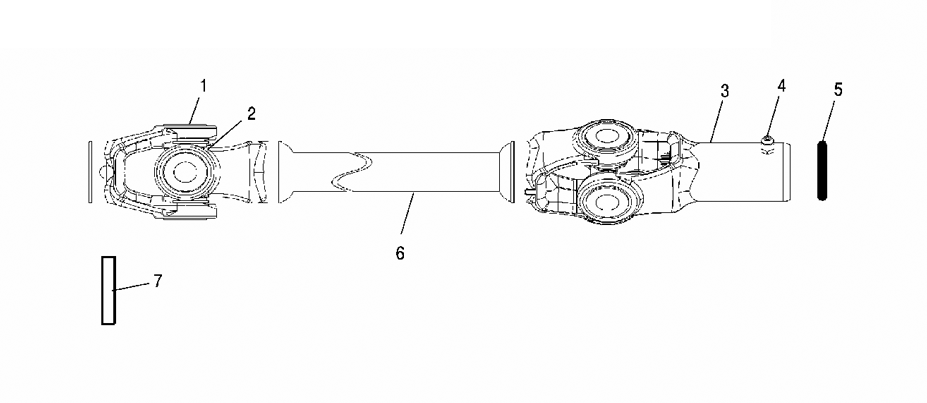

SHAFT - PROP - FRONT для Polaris SPORTSMAN X2 500 EFI (TN50AX) (SAGEBRUSH GREEN) - 2008 года выпуска

  • №
    Артикул
    Название
  • -
    1332368 ASM-PROPSHAFT, FRONT [INCL. 1-4,6] [BUILT 10/29/07 AND BEFORE]
    ASM-PROPSHAFT, FRONT [INCL. 1-4,6] [BUILT 10/29/07 AND BEFORE]
  • -
    1332617 ASM-PROPSHAFT, FRONT [INCL. 1-4,6] [BUILT 10/30/07 AND AFTER]
    ASM-PROPSHAFT, FRONT [INCL. 1-4,6] [BUILT 10/30/07 AND AFTER]
  • 1
    3260133 YOKE [BUILT 10/29/07 AND BEFORE]
    YOKE [BUILT 10/29/07 AND BEFORE]
  • 1
    2203704 FITTING-YOKE (PO10-2LJC) [BUILT 10/30/07 AND AFTER]
    FITTING-YOKE (PO10-2LJC) [BUILT 10/30/07 AND AFTER]
  • 2
    2202015 KIT, CROSS AND BEARING, NONGREASE [BUILT 10/29/07 AND BEFORE]
    KIT, CROSS AND BEARING, NONGREASE [BUILT 10/29/07 AND BEFORE]
  • 2
    2203705 KIT, CROSS AND BEARING, NONGREASE [BUILT 10/30/07 AND AFTER]
    KIT, CROSS AND BEARING, NONGREASE [BUILT 10/30/07 AND AFTER]
  • 3
    3260131 YOKE [BUILT 10/29/07 AND BEFORE]
    YOKE [BUILT 10/29/07 AND BEFORE]
  • 3
    2203698 YOKE-SLIP W/FITTING [INCL. 4] [BUILT 10/30/07 AND AFTER]
    YOKE-SLIP W/FITTING [INCL. 4] [BUILT 10/30/07 AND AFTER]
  • 4
    7080424 FITTING, LUBRICATION [BUILT 10/29/07 AND BEFORE]
    FITTING, LUBRICATION [BUILT 10/29/07 AND BEFORE]
  • 5
    5411092 O-RING
    O-RING
  • 6
    1332401 SHAFT-PROP, 24.11, SVC [BUILT 10/29/07 AND BEFORE]
    SHAFT-PROP, 24.11, SVC [BUILT 10/29/07 AND BEFORE]
  • 7
    7661913 PIN, SPRING
    PIN, SPRING
