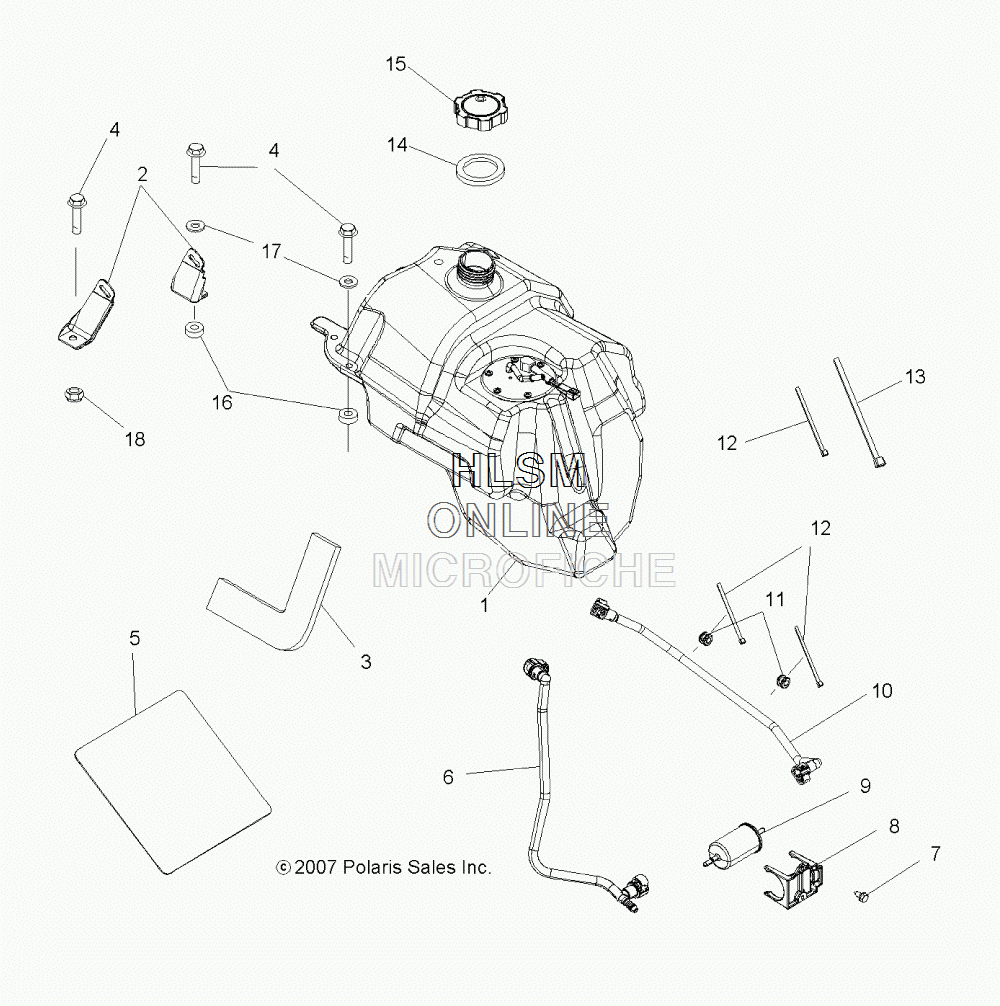

FUEL TANK для Polaris SPORTSMAN TOURING 800 EFI INTL (DN76FC) (SUNSET RED) - 2008 года выпуска
-
№АртикулНазвание
-
12520777 ASM., FUEL TANK (INCL. 5, PUMP)ASM., FUEL TANK (INCL. 5, PUMP)
-
25247184 BRACKET, FUEL COVER MOUNT, LEFT HANDBRACKET, FUEL COVER MOUNT, LEFT HAND
-
25247185 BRACKET, FUEL COVER MOUNT, RIGHT HANDBRACKET, FUEL COVER MOUNT, RIGHT HAND
-
35812265 SEAL, FOAMSEAL, FOAM
-
47517219 SCREWSCREW
-
55813024 FOILFOIL
-
62520443 ASM., FUEL LINE, TANK TO FILTERASM., FUEL LINE, TANK TO FILTER
-
77512232 BOLTBOLT
-
85436013 MOUNT, FUEL FILTERMOUNT, FUEL FILTER
-
92520464 FILTER, FUELFILTER, FUEL
-
102520695 ASM., FUEL LINE, FILTER TO RAILASM., FUEL LINE, FILTER TO RAIL
-
115413317 GROMMETGROMMET
-
127080138 CABLE TIECABLE TIE
-
137080492 CABLE TIECABLE TIE
-
145812123 GASKETGASKET
-
152520364 CAP, GAS, VENTED (INCL. 14)CAP, GAS, VENTED (INCL. 14)
-
167555916 WASHER, NYLONWASHER, NYLON
-
177558301 WASHER, FLATWASHER, FLAT
-
187542122 NUT, NYLOKNUT, NYLOK
