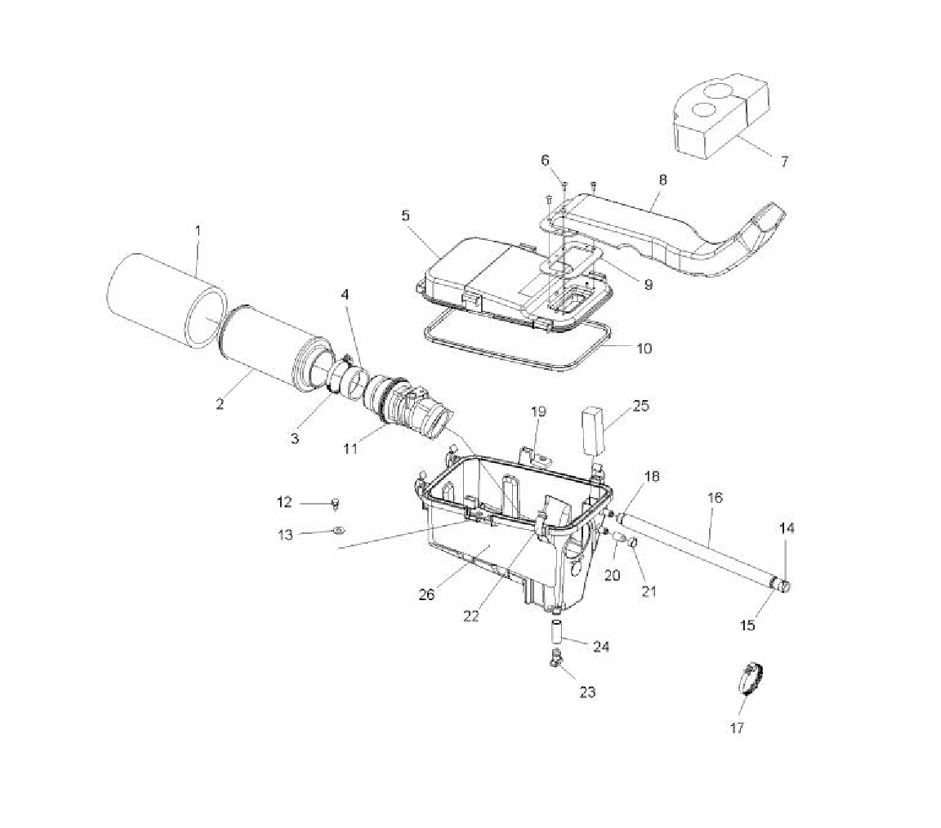

AIR INTAKE SYSTEM для Polaris SPORTSMAN TOURING 800 EFI (DN76AL) (SUNSET RED) - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    5811633 FILTER, PRECLEAN,SLEEVE
    FILTER, PRECLEAN,SLEEVE
  • 2
    7080595 FILTER,AIR
    FILTER,AIR
  • 3
    7080413 CLAMP,BAND,NARROW
    CLAMP,BAND,NARROW
  • 4
    5433847 SLEEVE-CARB,INNER
    SLEEVE-CARB,INNER
  • 5
    5436278 COVER-AIR BOX
    COVER-AIR BOX
  • 6
    7517317 SCREW
    SCREW
  • 7
    5812773 SEAL-FOAM,LARGE INTAKE
    SEAL-FOAM,LARGE INTAKE
  • 8
    5436957 DUCT-AIR INTAKE
    DUCT-AIR INTAKE
  • 9
    5412748 GASKET-INTAKE
    GASKET-INTAKE
  • 10
    5812829 SEAL-AIRBOX COVER
    SEAL-AIRBOX COVER
  • 11
    5412842 BOOT-CARB,40MM
    BOOT-CARB,40MM
  • 12
    7515179 SCREW
    SCREW
  • 13
    7555859 WASHER, FLAT
    WASHER, FLAT
  • 14
    7080694 CLAMP,HOSE,SPRING
    CLAMP,HOSE,SPRING
  • 15
    5412615 KIT-BREATHER LINE,SINGLE PC
    KIT-BREATHER LINE,SINGLE PC
  • 16
    8450108-34 SHEATH-REFLECT SLEEVE,19X34CM
    SHEATH-REFLECT SLEEVE,19X34CM
  • 17
    7080511 CLAMP, NARROW BAND
    CLAMP, NARROW BAND
  • 18
    7080699 CLAMP,HOSE
    CLAMP,HOSE
  • 19
    5435981 BOX-AIR INTAKE,4 STROKE
    BOX-AIR INTAKE,4 STROKE
  • 20
    5433396 CAP,END,406-12,3/4BLACK
    CAP,END,406-12,3/4BLACK
  • 21
    7080003 CLAMP,HOSE
    CLAMP,HOSE
  • 22
    5242044 CLIP
    CLIP
  • 23
    5432377 PLUG, TRAP
    PLUG, TRAP
  • 24
    8450059-150 FUEL LINE
    FUEL LINE
  • 25
    5812910 FILTER-CRANKCASE
    FILTER-CRANKCASE
  • 26
    5812771 FOIL-AIRBOX,,9.75 X 4.50
    FOIL-AIRBOX,,9.75 X 4.50
