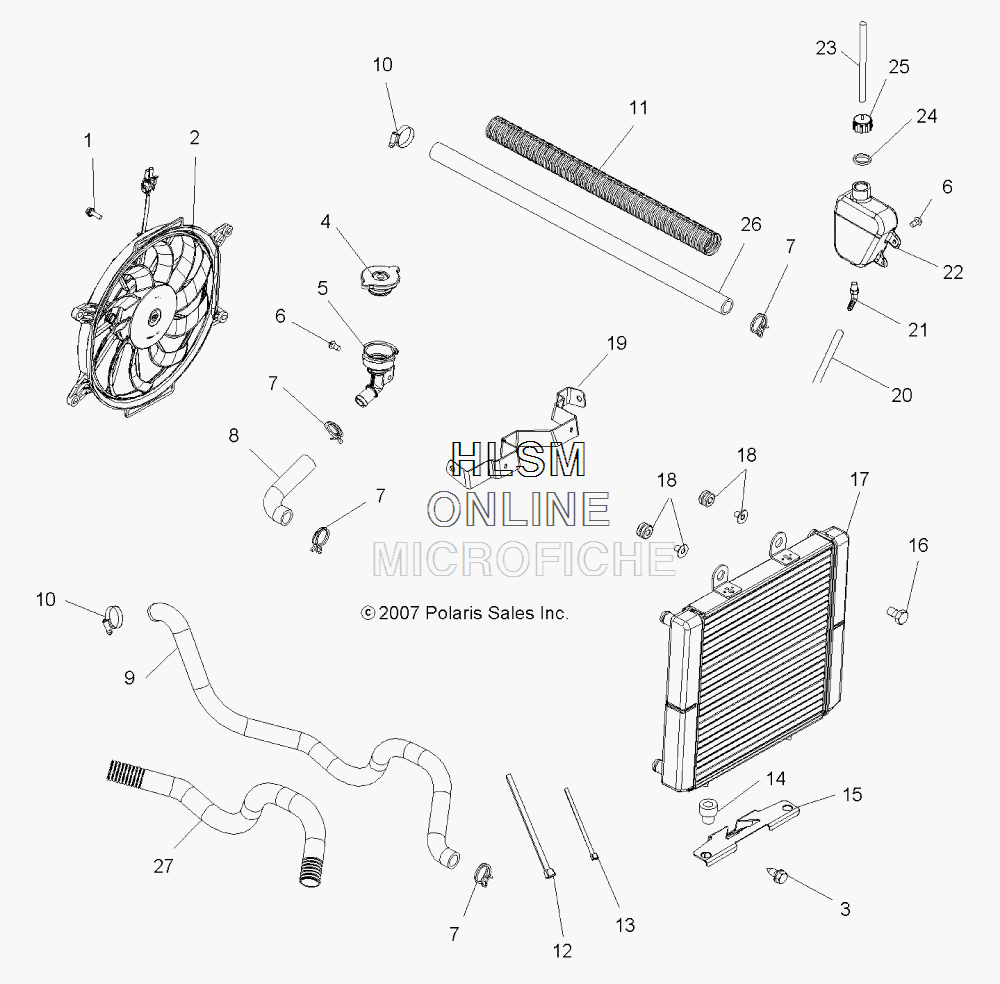

COOLING SYSTEM для Polaris SPORTSMAN TOURING 500 EFI QUAD (DN50EA) (STEALTH BLACK) - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    7517975 BOLT
    BOLT
  • 2
    2410383 ASM., FAN AND MOTOR
    ASM., FAN AND MOTOR
  • 3
    7517386 SCREW
    SCREW
  • 4
    1240044 CAP, PRESSURE
    CAP, PRESSURE
  • 5
    5412402 NECK, FILLER
    NECK, FILLER
  • 6
    7512084 SCREW
    SCREW
  • 7
    7080826 CLAMP, HOSE
    CLAMP, HOSE
  • 8
    5412405 HOSE, FILLER NECK
    HOSE, FILLER NECK
  • 9
    5412860 HOSE, ENGINE, LOWER
    HOSE, ENGINE, LOWER
  • 10
    7080696 CLAMP
    CLAMP
  • 11
    5521550 GUARD, HOSE, PLASTIC, 18 IN.
    GUARD, HOSE, PLASTIC, 18 IN.
  • 12
    7080138 CABLE TIE
    CABLE TIE
  • 13
    7080492 CABLE TIE
    CABLE TIE
  • 14
    5410584 BUSHING, MOUNT, LOWER RADIATOR
    BUSHING, MOUNT, LOWER RADIATOR
  • 15
    5247047-067 BRACKET, RADIATOR, LOWER (BLACK)
    BRACKET, RADIATOR, LOWER (BLACK)
  • 16
    7515179 SCREW
    SCREW
  • 17
    1240305 RADIATOR
    RADIATOR
  • 18
    5411975 ASM., GROMMET AND INSERT
    ASM., GROMMET AND INSERT
  • 19
    5250769 BRACKET, RADIATOR, UPPER
    BRACKET, RADIATOR, UPPER
  • 20
    8450003-1525 LINE, FUEL
    LINE, FUEL
  • 21
    7052065 FITTING, 90 DEGREE
    FITTING, 90 DEGREE
  • 22
    5436936 TANK, SURGE
    TANK, SURGE
  • 23
    8360009-600 LINE, FUEL
    LINE, FUEL
  • 24
    5810279 GASKET
    GASKET
  • 25
    5437635 CAP, OVERFLOW W/FITTING
    CAP, OVERFLOW W/FITTING
  • 26
    5412859 HOSE, ENGINE, UPPER
    HOSE, ENGINE, UPPER
  • 27
    5521748 GUARD, HOSE, PLASTIC, 20 IN.
    GUARD, HOSE, PLASTIC, 20 IN.
