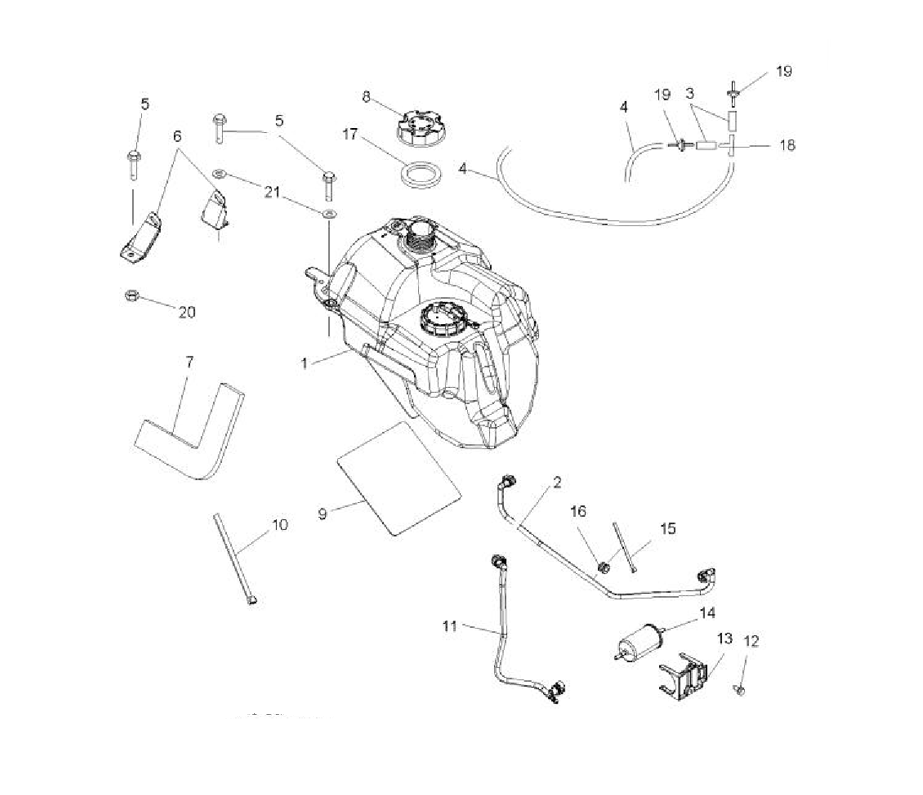

FUEL TANK ASM. (BUILT 8/21/07 AND AFTER) для Polaris SPORTSMAN TOURING 500 EFI (DN50AF) (BOARDWALK BLUE) - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    2520875 ASM-FUEL TANK,X2 (INCL. 9, FUEL PUMP)
    ASM-FUEL TANK,X2 (INCL. 9, FUEL PUMP)
  • 2
    2520551 LINE, FUEL, FILTER TO RAIL
    LINE, FUEL, FILTER TO RAIL
  • 3
    8450061-600 LINE,FUEL,3MMX7MM
    LINE,FUEL,3MMX7MM
  • 4
    8360009-600 LINE,FUEL,1/8 ID,600 CM.
    LINE,FUEL,1/8 ID,600 CM.
  • 5
    7517219 SCREW
    SCREW
  • 6
    5247184 BRKT-FUEL COVER MT LEFT HAND
    BRKT-FUEL COVER MT LEFT HAND
  • 6
    5247185 BRKT-FUEL COVER MT RIGHT HAND
    BRKT-FUEL COVER MT RIGHT HAND
  • 7
    5812265 SEAL-FOAM,12 IN
    SEAL-FOAM,12 IN
  • 8
    5433687 CAP,GAS TANK
    CAP,GAS TANK
  • 9
    5813024 FOIL-FUEL TANK,TREK
    FOIL-FUEL TANK,TREK
  • 10
    7080492 CABLE TIE,11 INCH
    CABLE TIE,11 INCH
  • 11
    2520791 LINE, FUEL, TANK TO FILTER
    LINE, FUEL, TANK TO FILTER
  • 12
    7512232 BOLT
    BOLT
  • 13
    5436013 MOUNT-FUEL FILTER
    MOUNT-FUEL FILTER
  • 14
    2520464 FILTER-FUEL,QUICK CONNECT
    FILTER-FUEL,QUICK CONNECT
  • 15
    7080138 CABLE TIE
    CABLE TIE
  • 16
    5413317 GROMMET-ELEC SHOCK WIRE,SLIT
    GROMMET-ELEC SHOCK WIRE,SLIT
  • 17
    5812123 GASKET
    GASKET
  • 18
    7052048 FITTING, TEE
    FITTING, TEE
  • 19
    7051011 VALVE,CHECK
    VALVE,CHECK
  • 20
    7542122 NUT, NYLOK
    NUT, NYLOK
  • 21
    7558301 WASHER, FLAT
    WASHER, FLAT
