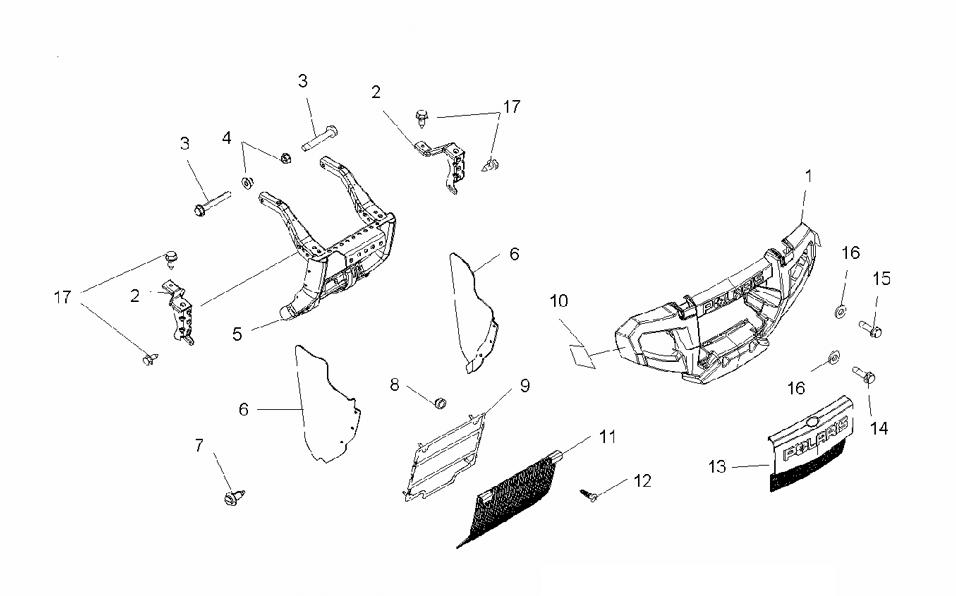

BUMPER MOUNTING - FRONT W/ HEADLIGHT AND TURN SIGNAL ASSY. для Polaris SPORTSMAN 800 HO EFI (MN76AT) (CAMO) - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    2633527-070 ASM-BUMPER, FRONT, BLACK [INCL. REFLECTORS]
    ASM-BUMPER, FRONT, BLACK [INCL. REFLECTORS]
  • 2
    1014591-067 SUPPORT, RACK, LEFT HAND, BLACK
    SUPPORT, RACK, LEFT HAND, BLACK
  • 2
    1014592-067 SUPPORT, RACK, RIGHT HAND, BLACK
    SUPPORT, RACK, RIGHT HAND, BLACK
  • 3
    7518341 BOLT-5/16-18X1-3/4 HXFLNG GR5
    BOLT-5/16-18X1-3/4 HXFLNG GR5
  • 4
    7542343 NUT, FLANGE
    NUT, FLANGE
  • 5
    1014635-067 BRUSHGUARD, BLACK
    BRUSHGUARD, BLACK
  • 6
    5434314 SHIELD-RADIATOR, SIDE, LEFT HAND
    SHIELD-RADIATOR, SIDE, LEFT HAND
  • 6
    5434315 SHIELD-RADIATOR, SIDE, RIGHT HAND
    SHIELD-RADIATOR, SIDE, RIGHT HAND
  • 7
    7661855 RIVET-TUFLOK, .315-.325X.787
    RIVET-TUFLOK, .315-.325X.787
  • 8
    5412504 GROMMET-RUBBER, MOUNT, 25''
    GROMMET-RUBBER, MOUNT, 25''
  • 9
    5435046 COVER-RADIATOR, MESH, LG
    COVER-RADIATOR, MESH, LG
  • 10
    7174780 DECAL-REFLECTOR, AMBER, LEFT HAND
    DECAL-REFLECTOR, AMBER, LEFT HAND
  • 10
    7174781 DECAL-REFLECTOR, AMBER, RIGHT HAND
    DECAL-REFLECTOR, AMBER, RIGHT HAND
  • 11
    5247507-067 GRILL-BRUSH GUARD, BLACK
    GRILL-BRUSH GUARD, BLACK
  • 12
    7518046 SCR-#8X1 PN-PH H/L-Y
    SCR-#8X1 PN-PH H/L-Y
  • 13
    5435357-070 PANEL-BUMPER, FRONT, BLACK
    PANEL-BUMPER, FRONT, BLACK
  • 14
    7518383 SCR-5/16-18X3/4 HX/W-TAP/R-M
    SCR-5/16-18X3/4 HX/W-TAP/R-M
  • 15
    7518382 BOLT-5/16-18X2.25 FLG TAP/R-M
    BOLT-5/16-18X2.25 FLG TAP/R-M
  • 16
    7556341 WASHER-.327X.875X.090, FL-M
    WASHER-.327X.875X.090, FL-M
  • 17
    7515399 SCREW
    SCREW
