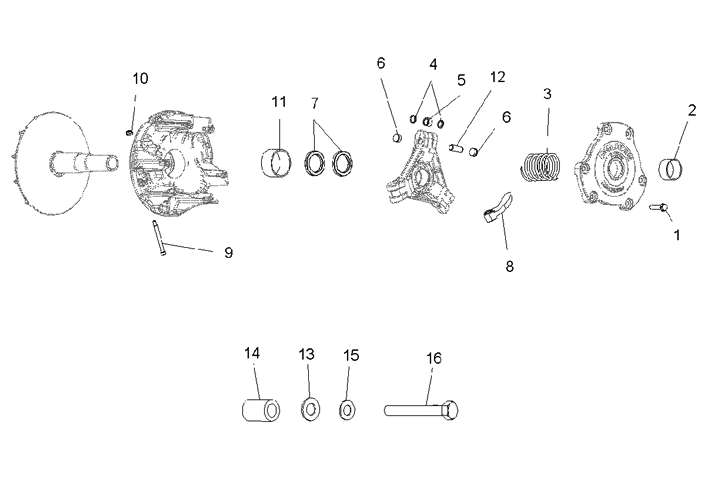

CLUTCH - PRIMARY для Polaris SPORTSMAN 500 HO (MH50AX) (SAGEBRUSH GREEN) - 2008 года выпуска

  • №
    Артикул
    Название
  • -
    1322684 PRIMARY CLUTCH (INCL. ALL LESS 1, 2, 4-7, 9-12)
    PRIMARY CLUTCH (INCL. ALL LESS 1, 2, 4-7, 9-12)
  • 1
    7518062 SCR-1/4-20X1.25 HX/FL GR5
    SCR-1/4-20X1.25 HX/FL GR5
  • 2
    3576510 BEARING, COVER,
    BEARING, COVER,
  • 3
    7041157 SPRING, CLUTCH
    SPRING, CLUTCH
  • 4
    5430945 WASHER
    WASHER
  • 5
    1321457 ROLLER/BUSHING ASM.
    ROLLER/BUSHING ASM.
  • 6
    5431936 BUTTON, CLUTCH
    BUTTON, CLUTCH
  • 7
    5210752 SPACER, .020
    SPACER, .020
  • 7
    5242981 SPACER, .025
    SPACER, .025
  • 7
    5210753 SPACER, .032
    SPACER, .032
  • 7
    5210754 SPACER, .050
    SPACER, .050
  • 8
    5630710 WT, SHIFT, 10WH
    WT, SHIFT, 10WH
  • 9
    7512266 BOLT, SHOULDER
    BOLT, SHOULDER
  • 10
    7541906 NUT FLEXLOC
    NUT FLEXLOC
  • 11
    3576504 BUSHING, MOVEABLE, 1/2 INCH
    BUSHING, MOVEABLE, 1/2 INCH
  • 12
    5020422 PIN-ROLLER,
    PIN-ROLLER,
  • 13
    5210748 WASHER
    WASHER
  • 14
    5430261 BUSHING
    BUSHING
  • 15
    7575202 WASHER LOCK
    WASHER LOCK
  • 16
    7512566 BOLT
    BOLT
