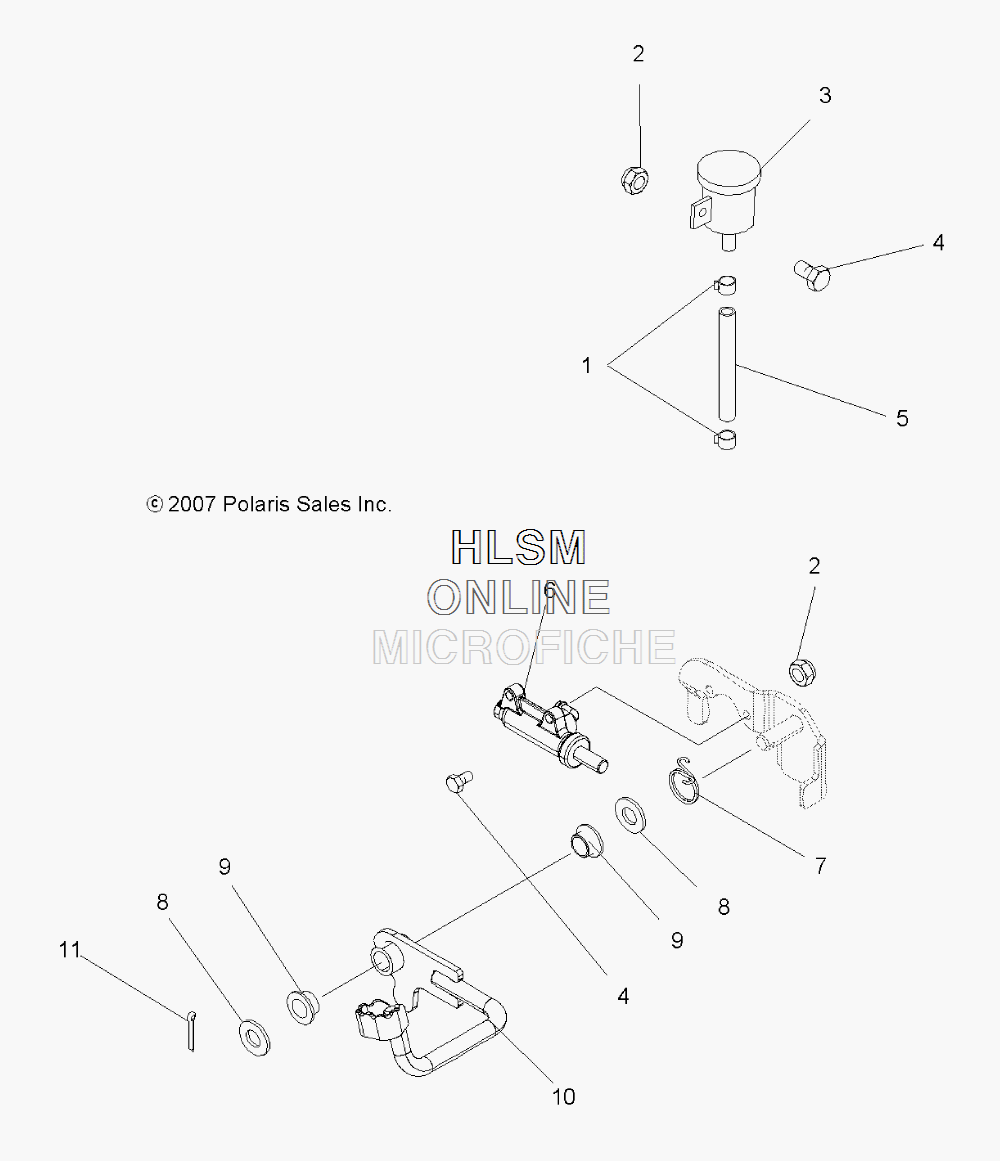

BRAKE - REAR MASTER CYLINDER W/ FOOT PEDAL для Polaris SPORTSMAN 500 EFI SCANDANAVIAN (MH50SS) (STEALTH BLACK) - 2008 года выпуска
-
№АртикулНазвание
-
17080003 CLAMP, HOSECLAMP, HOSE
-
27542153 NUT, NYLOK, FLANGEDNUT, NYLOK, FLANGED
-
31930854 ASM., RESERVOIR, BRAKE, REARASM., RESERVOIR, BRAKE, REAR
-
47512247 BOLTBOLT
-
51910315 HOSE, RESERVOIRHOSE, RESERVOIR
-
61911113 ASM., MASTER CYLINDER, BRAKE, REARASM., MASTER CYLINDER, BRAKE, REAR
-
77041750 SPRING, TORSIONSPRING, TORSION
-
87555919 WASHERWASHER
-
95433189 BUSHING, PIVOT, PEDALBUSHING, PIVOT, PEDAL
-
101911047-067 PEDAL, BRAKE (BLACK)PEDAL, BRAKE (BLACK)
-
117661401 PIN, COTTERPIN, COTTER
