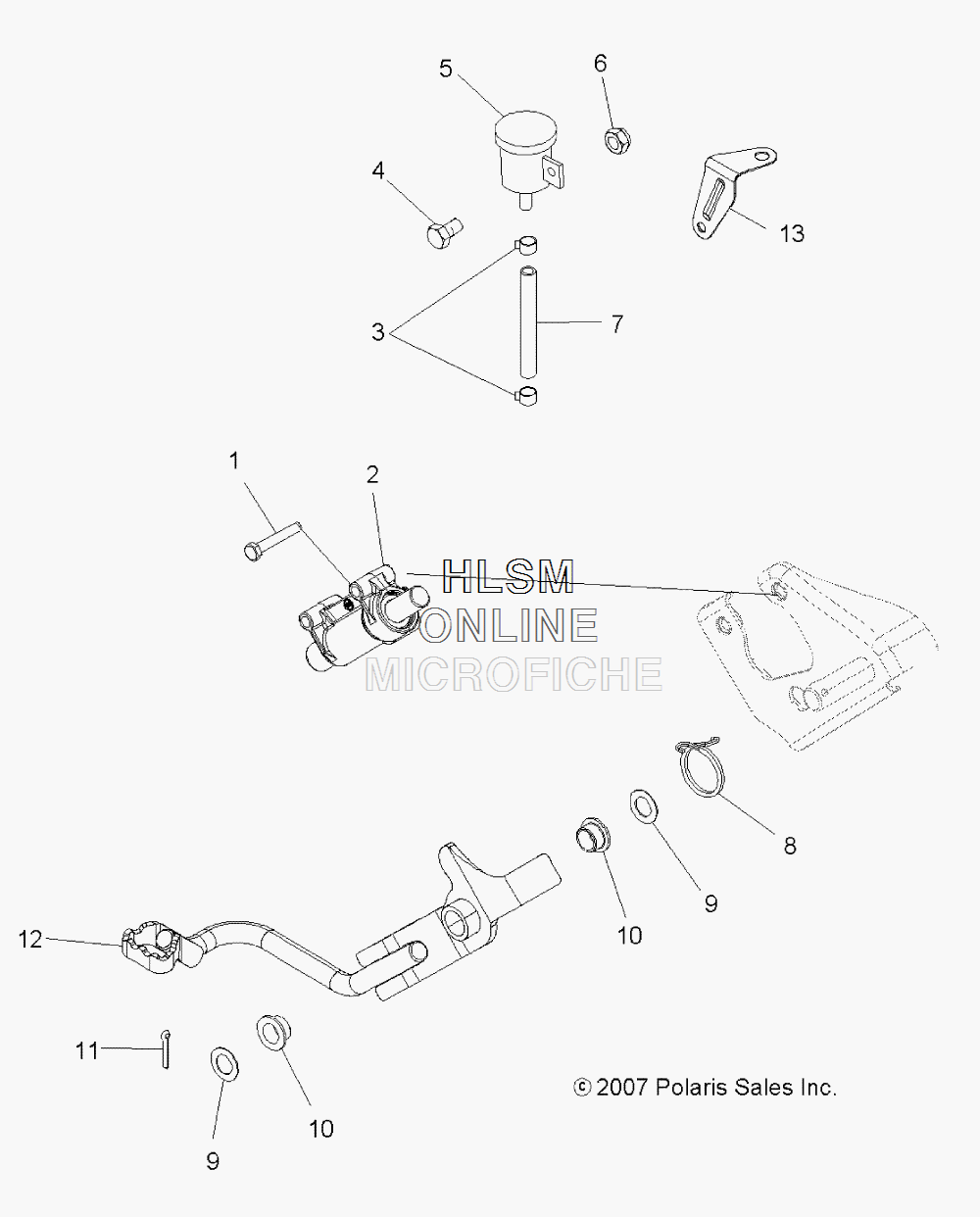

BRAKE - REAR MASTER CYLINDER W/ FOOT PEDAL для Polaris SPORTSMAN 300 4X4 (LH27AW) (BLACK) - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    7518470 SCREW
    SCREW
  • 2
    2010258 CYLINDER, MASTER, BRAKE, REAR
    CYLINDER, MASTER, BRAKE, REAR
  • 3
    7080003 CLAMP, HOSE
    CLAMP, HOSE
  • 4
    7518533 SCREW
    SCREW
  • 5
    1930854 ASM., RESERVOIR
    ASM., RESERVOIR
  • 6
    7547339 NUT, FLANGE
    NUT, FLANGE
  • 7
    1910969 HOSE, RESERVOIR
    HOSE, RESERVOIR
  • 8
    7043126 SPRING, TORSION, BRAKE
    SPRING, TORSION, BRAKE
  • 9
    7555919 WASHER
    WASHER
  • 10
    5433189 BUSHING, PEDAL PIVOT
    BUSHING, PEDAL PIVOT
  • 11
    7661401 PIN, COTTER
    PIN, COTTER
  • 12
    1015048-067 PEDAL, BRAKE, (BLACK)
    PEDAL, BRAKE, (BLACK)
  • 13
    5252419 BRACKET, BRAKE RESERVOIR (BUILT 11/06/07 AND AFTER)
    BRACKET, BRAKE RESERVOIR (BUILT 11/06/07 AND AFTER)
