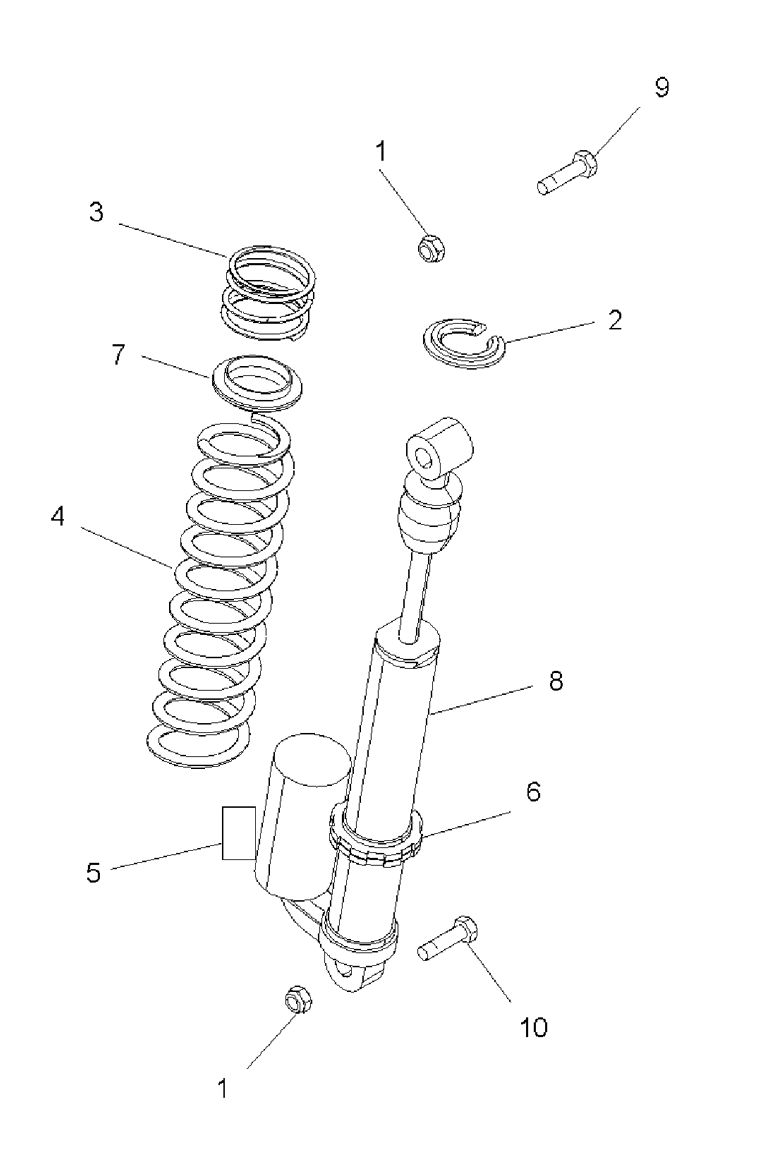

SUSPENSION - SWING ARM W/ SHOCK MOUNTING для Polaris SCRAMBLER 2X4 INTER (BA50FA) (INDY RED) - 2008 года выпуска
-
№АртикулНазвание
-
17542439 NUT,NYLOKNUT,NYLOK
-
25251753 RETAINER-SPRING,STEELRETAINER-SPRING,STEEL
-
37041865-067 SPRING-COMP,180#/IN, BLACKSPRING-COMP,180#/IN, BLACK
-
47041864-067 SPRING-COMP,280#/IN, BLACKSPRING-COMP,280#/IN, BLACK
-
57075343 PLATEPLATE
-
61500278 RING,SPRING,PRELOAD 234-00-063RING,SPRING,PRELOAD 234-00-063
-
75433550 SPACER-SPRINGSPACER-SPRING
-
87041867 SHOCK-REAR MONO,GAS,CH,19.08LGSHOCK-REAR MONO,GAS,CH,19.08LG
-
97515415 SCREWSCREW
-
107517761 SCREW 3/8-24X2.5HX/CP GR8-YSCREW 3/8-24X2.5HX/CP GR8-Y
