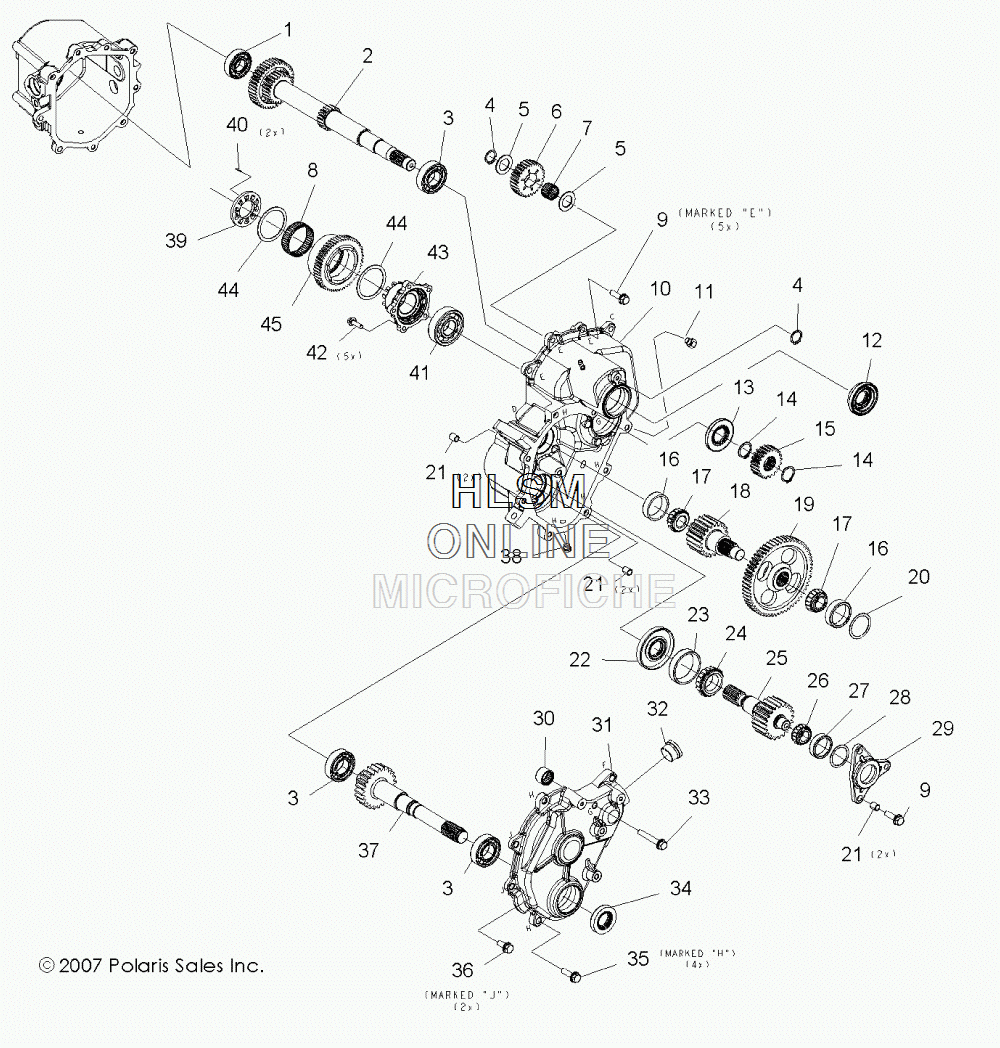

GEARCASE- MAIN- INTERNAL COMPONENTS 1 для Polaris RZR 800 EFI SAGE BRUSH METALLIC [R08VH76AD) - 2008 года выпуска`
-
№АртикулНазвание
-
13234549 BEARING, BALLBEARING, BALL
-
23234550 ASM., GEAR, SHAFT/PINASM., GEAR, SHAFT/PIN
-
33234502 BEARING, BALLBEARING, BALL
-
43234552 RING, RETAININGRING, RETAINING
-
53234553 WASHER, THRUSTWASHER, THRUST
-
63234554 GEAR, REVERSE, 29TGEAR, REVERSE, 29T
-
73234555 BEARING, NEEDLEBEARING, NEEDLE
-
83234536 BEARING, NEEDLEBEARING, NEEDLE
-
97518172 SCREWSCREW
-
103234498 ASM, TRANSMISSION/TRANSFER CASE (INCL. 4,12,13,22)ASM, TRANSMISSION/TRANSFER CASE (INCL. 4,12,13,22)
-
115133731 PLUG, DRAIN W/O-RINGPLUG, DRAIN W/O-RING
-
123234551 SEAL, OILSEAL, OIL
-
133234546 SEAL, OILSEAL, OIL
-
143234547 RING, RETAININGRING, RETAINING
-
153234548 GEAR, MAIN PINIONGEAR, MAIN PINION
-
163234556 BEARING, CUPBEARING, CUP
-
173234557 BEARING, CONEBEARING, CONE
-
183234558 SHAFT, PINION, 20TSHAFT, PINION, 20T
-
193234559 GEAR, MAIN OUTPUTGEAR, MAIN OUTPUT
-
203234560 KIT, SHIMKIT, SHIM
-
213234503 BUSHING, DOWELBUSHING, DOWEL
-
223610102 SEAL, OILSEAL, OIL
-
233234562 BEARING, CUPBEARING, CUP
-
243234563 BEARING, CONEBEARING, CONE
-
253234564 SHAFT, PINION, 21TSHAFT, PINION, 21T
-
263234565 BEARING, CONEBEARING, CONE
-
273234566 BEARING, CUPBEARING, CUP
-
283234567 KIT, SHIMKIT, SHIM
-
293234568 CAP, BEARING RETAINERCAP, BEARING RETAINER
-
303234561 BEARING, NEEDLEBEARING, NEEDLE
-
313234496 ASM., COVER, TRANSMISSION (INCL. 34)ASM., COVER, TRANSMISSION (INCL. 34)
-
325133736 PLUG, FILL W/O-RINGPLUG, FILL W/O-RING
-
333234571 SCREWSCREW
-
343234570 SEAL, OILSEAL, OIL
-
353234512 SCREWSCREW
-
363234511 SCREW, FLANGESCREW, FLANGE
-
373234569 SHAFT, PINION, 24TSHAFT, PINION, 24T
-
383234499 PLUG, DRAINPLUG, DRAIN
-
393234541 PLATE, RETAINER, REVERSEPLATE, RETAINER, REVERSE
-
403234538 PIN, SPRINGPIN, SPRING
-
413234545 BEARING, BALLBEARING, BALL
-
423234544 SCREWSCREW
-
433234543 FLANGE, PARKFLANGE, PARK
-
443234534 WASHER, THRUSTWASHER, THRUST
-
453234542 GEAR, CLUTCH, REVERSE, 47TGEAR, CLUTCH, REVERSE, 47T
