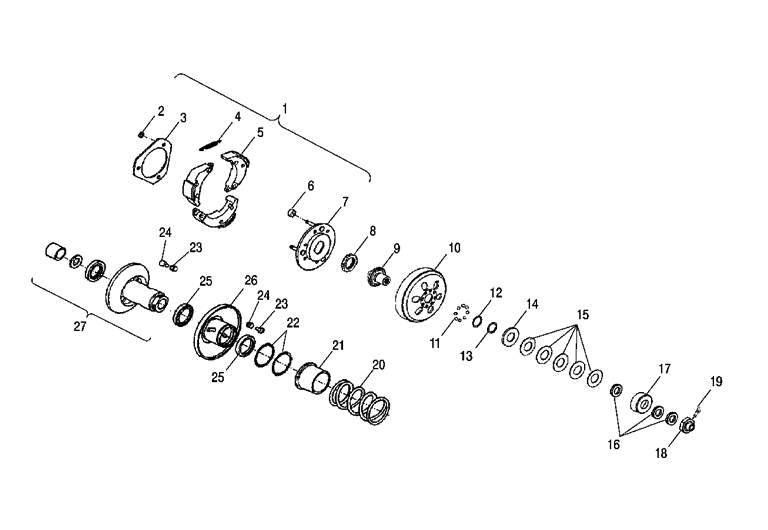

CLUTCH - SECONDARY для Polaris PHOENIX 200 (PB20AD) (PINK POWER) - 2008 года выпуска`
-
№АртикулНазвание
-
10452478 ASM-DRIVE PLATE (INCLUDES 2-7)ASM-DRIVE PLATE (INCLUDES 2-7)
-
20450052 CIRCLIP-EXTERNALCIRCLIP-EXTERNAL
-
30452480 PLATE-CLUTCH SIDEPLATE-CLUTCH SIDE
-
40452481 SPRING-CLUTCHSPRING-CLUTCH
-
50452482 WEIGHT-CLUTCHWEIGHT-CLUTCH
-
60452483 BUSHING-RUBBERBUSHING-RUBBER
-
70452479 PLATE-DRIVE, INNERPLATE-DRIVE, INNER
-
80452492 NUT-CLUTCHNUT-CLUTCH
-
90452475 CAM HOLDCAM HOLD
-
100452495 CLUTCH, OUTERCLUTCH, OUTER
-
110452498 BALL-STEELBALL-STEEL
-
120452476 WASHERWASHER
-
130452497 CIR CLIPCIR CLIP
-
140452499 RETAINER-BALLRETAINER-BALL
-
150452500 WASHER-BELLVILLEWASHER-BELLVILLE
-
160452440 WASHER-GEARWASHER-GEAR
-
170452501 CAM GUIDECAM GUIDE
-
180452502 NUT-DRIVENNUT-DRIVEN
-
190452768 SCREWSCREW
-
200452490 SPRING-CLUTCHSPRING-CLUTCH
-
210452491 SEAL, COLLARSEAL, COLLAR
-
220452494 O-RINGO-RING
-
230452488 GUIDE-PINGUIDE-PIN
-
240452489 GUIDE-ROLLERGUIDE-ROLLER
-
250452493 SEAL-DRIVENSEAL-DRIVEN
-
260452487 ASM-SHEAVE, MOVEABLEASM-SHEAVE, MOVEABLE
-
270452484 ASM-SHEAVE, DRIVEN (INCLUDES BREARINGS AND CLIP)ASM-SHEAVE, DRIVEN (INCLUDES BREARINGS AND CLIP)
