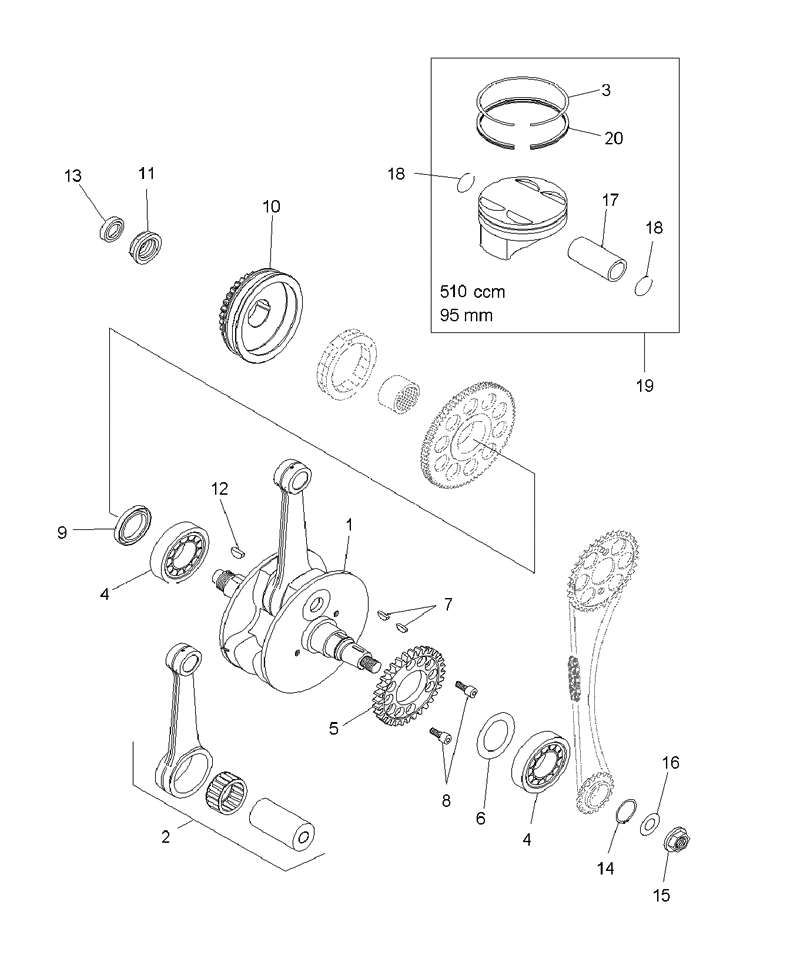

CRANKSHAFT W/ PISTON для Polaris OUTLAW 525 S (GJ52AB) (WHITE) - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    1203516 ASM-CRANKSHAFT, 525ATV
    ASM-CRANKSHAFT, 525ATV
  • 2
    2203406 KIT-CONN ROD, 525ATV
    KIT-CONN ROD, 525ATV
  • 3
    3021874 RING-PISTON COMP 95/87.2X1.25
    RING-PISTON COMP 95/87.2X1.25
  • 4
    3514569 BEARING-CYLROLL NJ206 ET2XCS46
    BEARING-CYLROLL NJ206 ET2XCS46
  • 5
    6230359 GEAR-DRIVE BALANCE SHAFT
    GEAR-DRIVE BALANCE SHAFT
  • 6
    7556392 WASHER-THRUST 30.5X45X0.10MM
    WASHER-THRUST 30.5X45X0.10MM
  • 6
    7556393 WASHER-THRUST 30.5X45X0.15MM
    WASHER-THRUST 30.5X45X0.15MM
  • 6
    7556394 WASHER-THRUST 30.5X45X0.30MM
    WASHER-THRUST 30.5X45X0.30MM
  • 7
    7710593 KEY-WOODRUFF DIN6888 3X5X13MM
    KEY-WOODRUFF DIN6888 3X5X13MM
  • 8
    7518721 SCR-M6X16 SOCHD DIN7984 8.8
    SCR-M6X16 SOCHD DIN7984 8.8
  • 9
    5413245 SEAL-SHAFT, 30X47X7MM
    SEAL-SHAFT, 30X47X7MM
  • 10
    6230361 GEAR-PRIMARY 31T 525ATV
    GEAR-PRIMARY 31T 525ATV
  • 11
    7547378 NUT-HEX M20X1.5 PR.GR. LEFT HAND-THRD
    NUT-HEX M20X1.5 PR.GR. LEFT HAND-THRD
  • 12
    7710595 KEY-WOODRUFF HARDENED 5X6.5MM
    KEY-WOODRUFF HARDENED 5X6.5MM
  • 13
    5413244 SEAL-SHAFT, 14X24X6MM
    SEAL-SHAFT, 14X24X6MM
  • 14
    7710597 RING-SNAP DIN0471 25X1.2MM
    RING-SNAP DIN0471 25X1.2MM
  • 15
    7547381 NUT-M12X1 HX/FL
    NUT-M12X1 HX/FL
  • 16
    7556413 WASHER-SPRING DIN0137-B12
    WASHER-SPRING DIN0137-B12
  • 17
    3021872 PIN-PISTON, 20X15.8/12X50MM
    PIN-PISTON, 20X15.8/12X50MM
  • 18
    3021875 CIRCLIP-PISTON 20X1.5MM
    CIRCLIP-PISTON 20X1.5MM
  • 19
    2203407 KIT-PISTON 95MM SORT I (PISTON SORT MUST MATCH CYLINDER SORT)
    KIT-PISTON 95MM SORT I (PISTON SORT MUST MATCH CYLINDER SORT)
  • 19
    2203408 KIT-PISTON 95MM SORT II (PISTON SORT MUST MATCH CYLINDER SORT)
    KIT-PISTON 95MM SORT II (PISTON SORT MUST MATCH CYLINDER SORT)
  • 20
    3021873 RING-PISTON 95MM OIL CONTROL
    RING-PISTON 95MM OIL CONTROL
