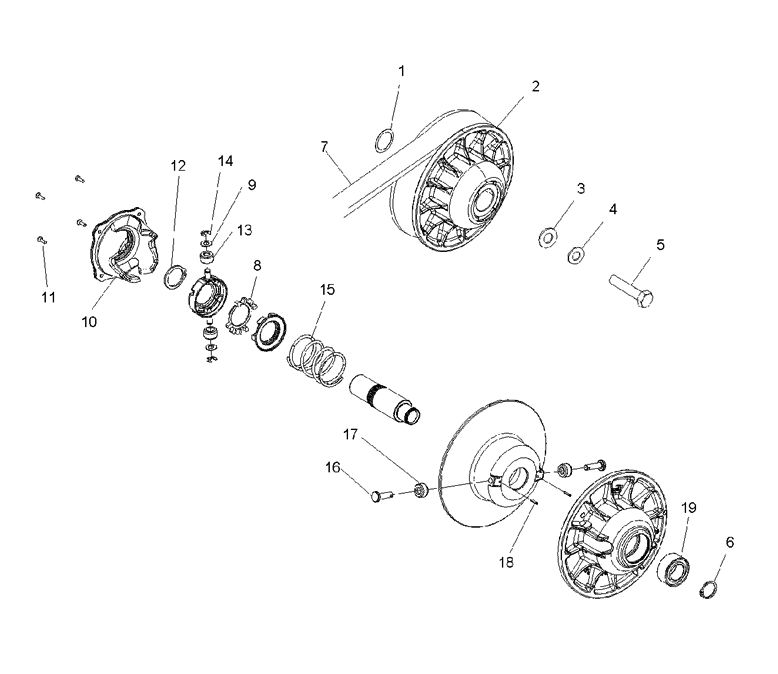

CLUTCH - DRIVEN для Polaris SPORTSMAN X2 500 EFI (TN50AU) (BLACK METALLIC) - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    7556120 BUSHING
    BUSHING
  • 2
    1322706 ASM-CLUTCH,DRIVEN,EBS,DAMPED (INCL. 6,8,9,11-14,16-19)
    ASM-CLUTCH,DRIVEN,EBS,DAMPED (INCL. 6,8,9,11-14,16-19)
  • 3
    5250562 WASHER-DOMED,SMALL
    WASHER-DOMED,SMALL
  • 4
    7552901 WASHER,SPRING LOCK
    WASHER,SPRING LOCK
  • 5
    7515327 BOLT
    BOLT
  • 6
    3234205 RING,RETAINING
    RING,RETAINING
  • 7
    3211113 BELT-DRIVE,EBS
    BELT-DRIVE,EBS
  • 8
    7710564 RETAINER-SPRING,INNER
    RETAINER-SPRING,INNER
  • 9
    7556226 WASHER-THRUST
    WASHER-THRUST
  • 10
    3234356 ASM-CAM
    ASM-CAM
  • 11
    3234192 SCREW,CAP TORX SFH #10-32X.625
    SCREW,CAP TORX SFH #10-32X.625
  • 12
    7710522 RET.RING-EXT 1.500
    RET.RING-EXT 1.500
  • 13
    3234207 ROLLER,CLUTCH
    ROLLER,CLUTCH
  • 14
    7710523 RET.E-RING-E T.375
    RET.E-RING-E T.375
  • 15
    3234451 SPRING-COMPRESSION,YEL,80-130
    SPRING-COMPRESSION,YEL,80-130
  • 16
    3234201 PIN,ROLLER
    PIN,ROLLER
  • 17
    3234197 ROLLER,CLUTCH
    ROLLER,CLUTCH
  • 18
    3234202 PIN,SPRING SLOTTED .125X.625
    PIN,SPRING SLOTTED .125X.625
  • 19
    3234203 BEARING,BALL ANGULAR CONTACT
    BEARING,BALL ANGULAR CONTACT
