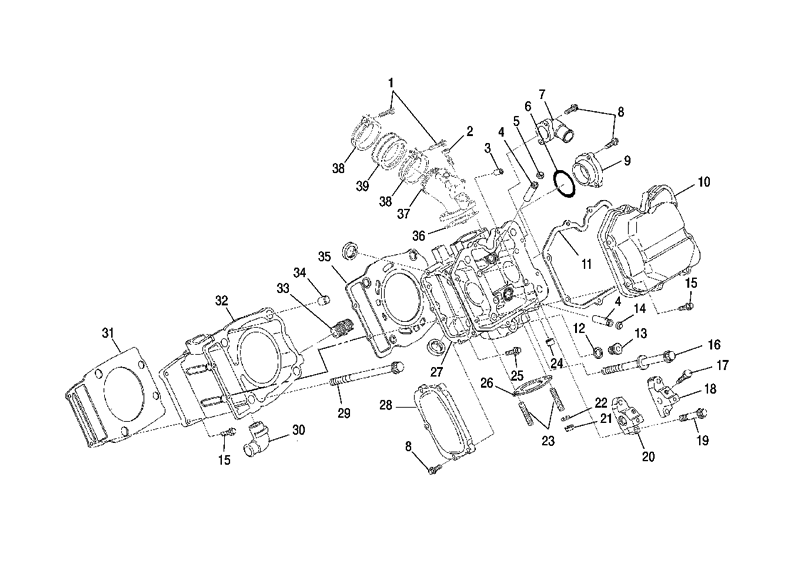

CYLINDER HEAD W/ CYLINDER для Polaris SPORTSMAN X2 500 EFI (TN50AS) (STONE BEIGE METALLIC) - 2007 года выпуска

№

Артикул

Название
1

3081497 SCREW,PAN HEAD

SCREW,PAN HEAD
2

3081330 BOLT, SOCKET HEAD

BOLT, SOCKET HEAD
3

3084857 KNOCK,PIPE

KNOCK,PIPE
4

3084994 GUIDE,VALVE

GUIDE,VALVE
5

3084858 SEAL,INTAKE VALVE

SEAL,INTAKE VALVE
6

3084867 O-RING

O-RING
7

3084870 ADAPTER-WATER OUT

ADAPTER-WATER OUT
8

3084877 BOLT,FLANGE

BOLT,FLANGE
9

3084866 ADAPTER,CAMSHAFT

ADAPTER,CAMSHAFT
10

3085073 COVER,ROCKER

COVER,ROCKER
11

3085074 GASKET,(ROCKER COVER)

GASKET,(ROCKER COVER)
12

3084861 GASKET

GASKET
13

3084860 PLUG

PLUG
14

3084859 SEAL,EXHAUST VALVE

SEAL,EXHAUST VALVE
15

3087158 BOLT, FLANGE

BOLT, FLANGE
16

3084875 BOLT

BOLT
17

3085854 BOLT-ROCKER SHAFT

BOLT-ROCKER SHAFT
18

3084864 SUPPORT,VALVE ROCKER SHAFT(PTO)

SUPPORT,VALVE ROCKER SHAFT(PTO)
19

3084876 BOLT

BOLT
20

3084863 SUPPORT,VALVE ROCKER SHAFT(MAG)

SUPPORT,VALVE ROCKER SHAFT(MAG)
21

3087199 NUT

NUT
22

3080051 WASHER, SPRING LOCK

WASHER, SPRING LOCK
23

3085326 STUD

STUD
24

3084862 PLUG, BLIND

PLUG, BLIND
25

3086781 BOLT,FLANGE

BOLT,FLANGE
26

3085075 ASM.,GASKET(EXHAUST)

ASM.,GASKET(EXHAUST)
27

3085527 ASM.,HEAD,CYLINDER (INCL. 3-5,12-14,23,24)

ASM.,HEAD,CYLINDER (INCL. 3-5,12-14,23,24)
28

3089242 COVER-CAMSHAFT

COVER-CAMSHAFT
29

3084873 BOLT, FLANGE

BOLT, FLANGE
30

3084130 PIPE-2,ELBOW

PIPE-2,ELBOW
31

3085370 GASKET, CYLINDER

GASKET, CYLINDER
32

3089256 ASM-CYLINDER (INCL. 30)

ASM-CYLINDER (INCL. 30)
33

3089956 UNION-OIL FILTER

UNION-OIL FILTER
34

3087266 KNOCK,PIPE

KNOCK,PIPE
35

3085371 ASM.,GASKET, HEAD

ASM.,GASKET, HEAD
36

3085655 GASKET,INTAKE ADAPTER

GASKET,INTAKE ADAPTER
37

3089898 PIPE-INTAKE

PIPE-INTAKE
38

3084045 BAND ASM.

BAND ASM.
39

3089748 HOSE

HOSE
