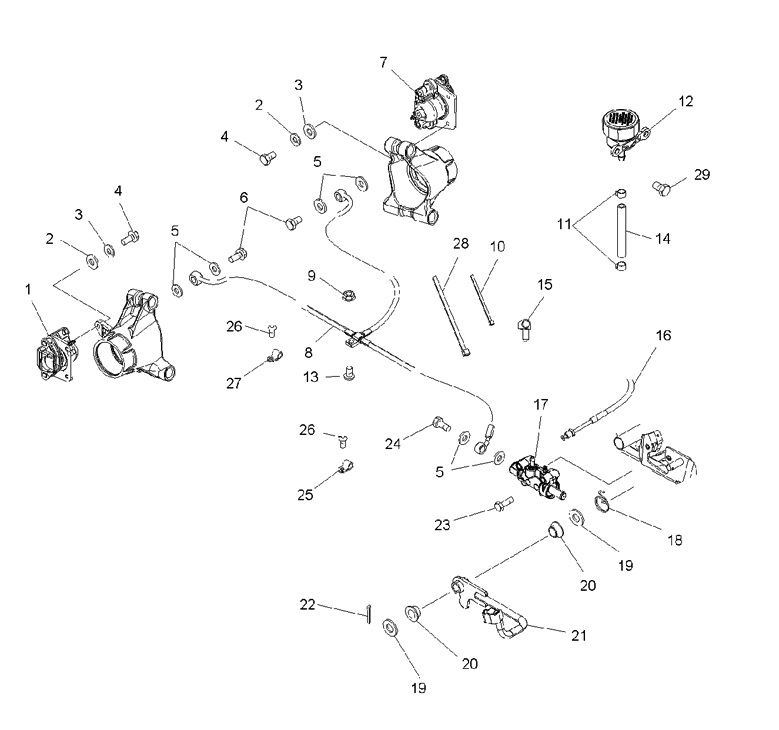

BRAKE - REAR W/ FOOT PEDAL для Polaris SPORTSMAN X2 500 EFI (TN50AF) (SONIC BLUE) - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    1911217 ASM-CALIPER,BRAKE, RIGHT HAND,1.187
    ASM-CALIPER,BRAKE, RIGHT HAND,1.187
  • 2
    7558402 WASHER,FLAT
    WASHER,FLAT
  • 3
    7552901 WASHER,SPRING LOCK
    WASHER,SPRING LOCK
  • 4
    7512365 SCREW, CAP
    SCREW, CAP
  • 5
    5410988 SEAL-STAT-O-3/8,70EP (IF BUILT BEFORE 9/25/06)
    SEAL-STAT-O-3/8,70EP (IF BUILT BEFORE 9/25/06)
  • 5
    5413212 SEAL-STAT-O-3/8,70EP (IF BUILT AFTER 9/25/06)
    SEAL-STAT-O-3/8,70EP (IF BUILT AFTER 9/25/06)
  • 6
    1910499 BOLT-BANJO,10MMX1.00
    BOLT-BANJO,10MMX1.00
  • 7
    1911216 ASM-CALIPER,BRAKE, LEFT HAND,1.187
    ASM-CALIPER,BRAKE, LEFT HAND,1.187
  • 8
    1910979 LINE-BRAKE,FT M/C TORR
    LINE-BRAKE,FT M/C TORR
  • 9
    7542153 NUT,NYLOK,FLANGED
    NUT,NYLOK,FLANGED
  • 10
    7080138 CABLE TIE
    CABLE TIE
  • 11
    7080003 CLAMP,HOSE
    CLAMP,HOSE
  • 12
    1910982 ASM-RESERVOIR,REAR BRAKE,2 EAR
    ASM-RESERVOIR,REAR BRAKE,2 EAR
  • 13
    7512240 BOLT
    BOLT
  • 14
    1910957 HOSE-RESERVOIR, ј ID,24'' (IF BUILT BEFORE 10/18/06)
    HOSE-RESERVOIR, ј ID,24'' (IF BUILT BEFORE 10/18/06)
  • 14
    1911267-635 HOSE-RESERVOIR,BRAKE,635MM (IF BUILT AFTER 10/18/06)
    HOSE-RESERVOIR,BRAKE,635MM (IF BUILT AFTER 10/18/06)
  • 15
    7670102 CLIP
    CLIP
  • 16
    1910980 LINE-BRAKE, JB TO FT, M/C
    LINE-BRAKE, JB TO FT, M/C
  • 17
    1911123 KIT-ASM, MASTER CYL, DIRMC,3/4
    KIT-ASM, MASTER CYL, DIRMC,3/4
  • 18
    7043276 SPRING-TORSION,BRAKE
    SPRING-TORSION,BRAKE
  • 19
    7555919 WASHER
    WASHER
  • 20
    5433189 BUSHING-PEDAL PIVOT
    BUSHING-PEDAL PIVOT
  • 21
    1910919-067 WELD-BRAKE ROD, BLACK
    WELD-BRAKE ROD, BLACK
  • 22
    7661401 PIN,COTTER
    PIN,COTTER
  • 23
    7512130 BOLT
    BOLT
  • 24
    1910958 BOLT-BANJO, 10MM X 1.25-6G
    BOLT-BANJO, 10MM X 1.25-6G
  • 25
    7080573 CLAMP,RUBBER-COATED,.562
    CLAMP,RUBBER-COATED,.562
  • 26
    7512024 SCREW
    SCREW
  • 27
    7080683 CLAMP,HOSE
    CLAMP,HOSE
  • 28
    7080356 TIE, CABLE
    TIE, CABLE
  • 29
    7517380 SCREW
    SCREW
