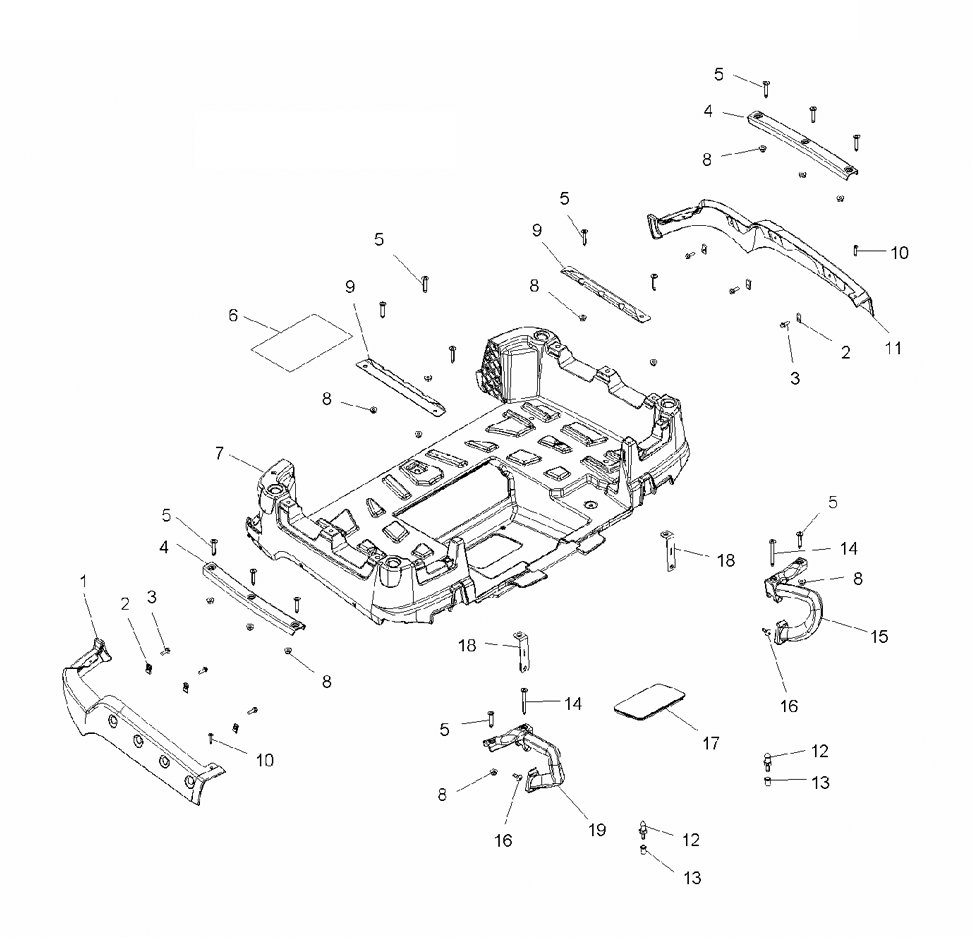

BOX - REAR для Polaris SPORTSMAN 800 X2 EFI INT (A07TN76AL) (SUNSET RED) - 2007 года выпуска`
-
№АртикулНазвание
-
15436262 FENDER-REAR BOX, RIGHT HANDFENDER-REAR BOX, RIGHT HAND
-
27670057 NUT, SPEEDNUT, SPEED
-
37512232 BOLTBOLT
-
45434803-070 TIEDOWN-SIDE, BLACKTIEDOWN-SIDE, BLACK
-
57518235 SCR-5/16-18X1.75 TX-MSCR-5/16-18X1.75 TX-M
-
65813012 FOIL-BOXFOIL-BOX
-
75437654-070 BOX-REAR, BASE, BLACKBOX-REAR, BASE, BLACK
-
87542343 NUT, FLANGENUT, FLANGE
-
95248471-418 CHANNEL-FRONT, FLATBKWRKL-CHANNEL-FRONT, FLATBKWRKL-
-
107518238 SCR-10X5/8-HI/LO, PN-T25, TRX-MSCR-10X5/8-HI/LO, PN-T25, TRX-M
-
115436261 FENDER-REAR BOX, LEFT HANDFENDER-REAR BOX, LEFT HAND
-
125910284 PIN-SEAT LATCHPIN-SEAT LATCH
-
137542143 INSERT,INSERT,
-
147517983 SCR-5/16-18X3.00 TR/TX-MSCR-5/16-18X3.00 TR/TX-M
-
155436491-070 HANDLE-PASSENGER, LEFT HAND, BLACKHANDLE-PASSENGER, LEFT HAND, BLACK
-
167518280 SCR-1/4-20X.75, TR/TX-MSCR-1/4-20X.75, TR/TX-M
-
175413002 PLUG-DRAIN, BOXPLUG-DRAIN, BOX
-
185249846 PLATE-PASSENGER, GRIPPLATE-PASSENGER, GRIP
-
195436492-070 HANDLE-PASSENGER, RIGHT HAND, BLACKHANDLE-PASSENGER, RIGHT HAND, BLACK
