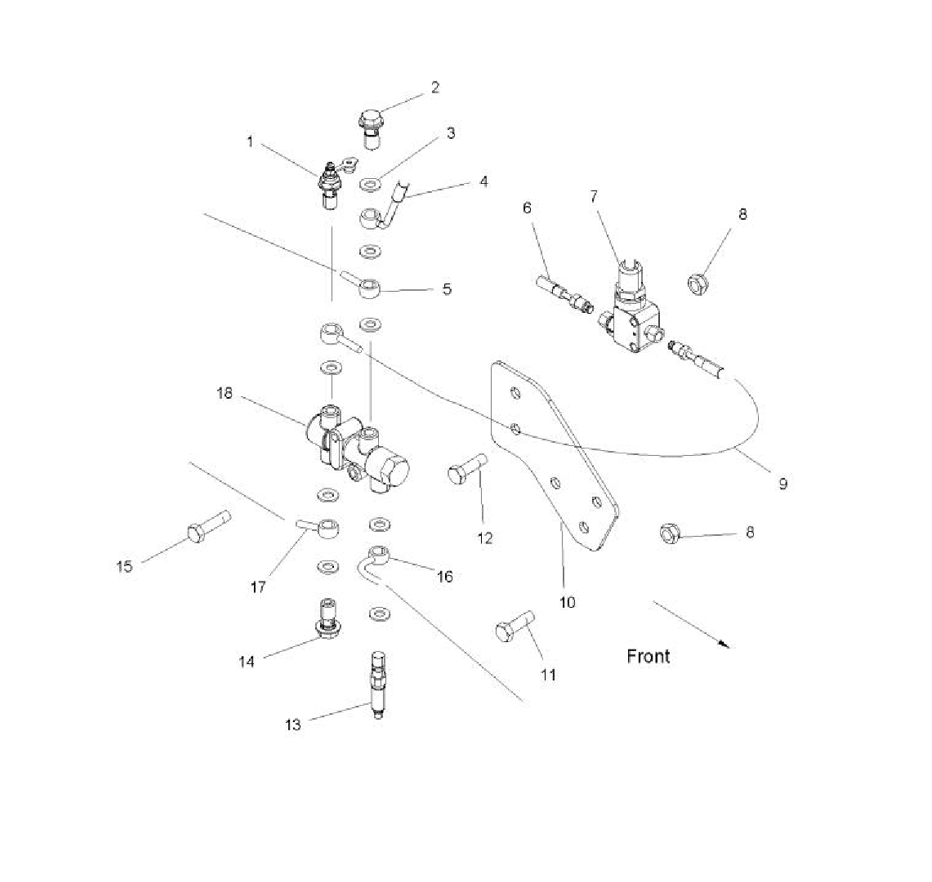

BRAKE - VALVE SYSTEM для Polaris SPORTSMAN 800 EFI INT (A07MH76FA) - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    1911112 BOLT-BANJO 10MMX1.25 W/BLEEDER
    BOLT-BANJO 10MMX1.25 W/BLEEDER
  • 2
    1911194 BOLT-DOUBLE BANJO,M10X1.25
    BOLT-DOUBLE BANJO,M10X1.25
  • 3
    5413212 SEAL-STAT-O-3/8,70EP
    SEAL-STAT-O-3/8,70EP
  • 4
    1911103 LINE-BRAKE,HAND TO J/B
    LINE-BRAKE,HAND TO J/B
  • 5
    1911145 LINE-BRAKE,REAR,AUX,800 INT'L
    LINE-BRAKE,REAR,AUX,800 INT'L
  • 6
    1911144 LINE-BRAKE,REAR,SERVICE,800 INT
    LINE-BRAKE,REAR,SERVICE,800 INT
  • 7
    1911109 VALVE-REDUCING,BRAKE
    VALVE-REDUCING,BRAKE
  • 8
    7542122 NUT-NYLOK
    NUT-NYLOK
  • 9
    1911200 LINE-BRAKE, J/B TO P/VALVE,NPT
    LINE-BRAKE, J/B TO P/VALVE,NPT
  • 10
    5250532-067 PLATE-BRAKE VALVE, BLACK
    PLATE-BRAKE VALVE, BLACK
  • 11
    7512242 SCREW
    SCREW
  • 12
    7512130 BOLT
    BOLT
  • 13
    4011478 SWITCH-PRESSURE,BRAKE,M10X1.25
    SWITCH-PRESSURE,BRAKE,M10X1.25
  • 14
    1910499 BOLT-BANJO,10MMX1.00
    BOLT-BANJO,10MMX1.00
  • 15
    7517451 BOLT
    BOLT
  • 16
    1911102 LINE-BRAKE,FRONT
    LINE-BRAKE,FRONT
  • 17
    1911143 LINE-BRAKE,FOOT TO J/B,800INTL
    LINE-BRAKE,FOOT TO J/B,800INTL
  • 18
    1911185 BLOCK-DIST,BRAKE,LONG PISTON
    BLOCK-DIST,BRAKE,LONG PISTON
