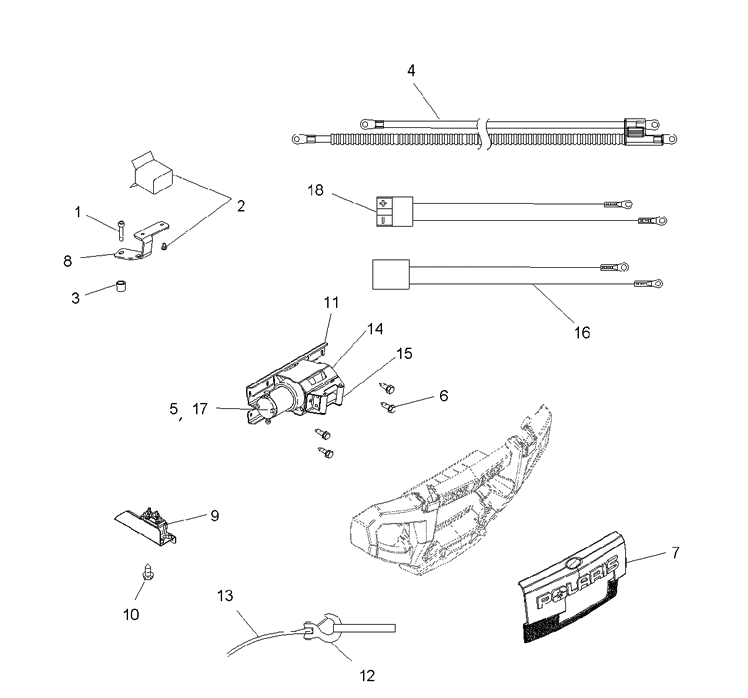

WINCH для Polaris SPORTSMAN 800 EFI (A07MN76AT) (CAMO) - 2007 года выпуска`
-
№АртикулНазвание
-
17510005 SCR-M6X1.0X40,HX/SOC/CP-Y/DSCR-M6X1.0X40,HX/SOC/CP-Y/D
-
22875957 SWITCH,POLARIS WINCHSWITCH,POLARIS WINCH
-
35334334 SPACER-.277X.375X.330SPACER-.277X.375X.330
-
42410837 HARNESS-WINCH,PREWIREHARNESS-WINCH,PREWIRE
-
52875879 WINCH,2500 LB.,05-06 SPTSMNWINCH,2500 LB.,05-06 SPTSMN
-
67515399 SCREWSCREW
-
75436991-070 PANEL-BUMPER,WINCH, BLACKPANEL-BUMPER,WINCH, BLACK
-
82875957 SWITCH,POLARIS WINCHSWITCH,POLARIS WINCH
-
92876657 CONTACTOR, POLARIS WINCHCONTACTOR, POLARIS WINCH
-
107512247 BOLTBOLT
-
115250828 COULD NOT FINDCOULD NOT FIND
-
122875998 HOOK AND LATCH,POLARIS WINCHHOOK AND LATCH,POLARIS WINCH
-
132876000 CABLE,POLARIS WINCHCABLE,POLARIS WINCH
-
142876800 BRACKET-CLAMSHELL,2500 & 3500BRACKET-CLAMSHELL,2500 & 3500
-
152875997 FAIRLEAD,ROLLER,POLARIS WINCHFAIRLEAD,ROLLER,POLARIS WINCH
-
162410932 HARNESS-WINCH,MOTOR/CONTACTORHARNESS-WINCH,MOTOR/CONTACTOR
-
172875879 WINCH,2500 LB.,05-06 SPTSMNWINCH,2500 LB.,05-06 SPTSMN
-
182410932 HARNESS-WINCH,MOTOR/CONTACTORHARNESS-WINCH,MOTOR/CONTACTOR
