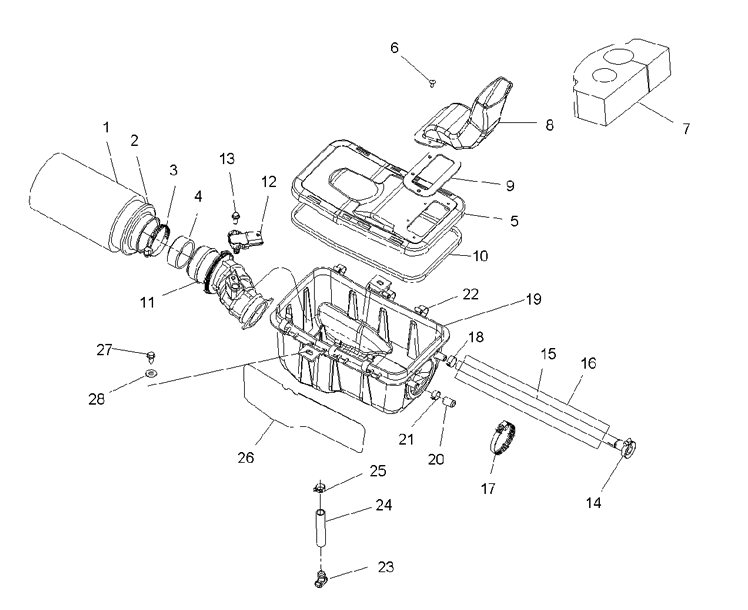

AIR BOX ASSY. для Polaris SPORTSMAN 800 EFI (A07MH76AX) (CAMO GREEN METALLIC) - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    5811633 FILTER,PRECLEAN,SLEEVE
    FILTER,PRECLEAN,SLEEVE
  • 2
    7080595 FILTER,AIR
    FILTER,AIR
  • 3
    7080413 CLAMP,BAND,NARROW
    CLAMP,BAND,NARROW
  • 4
    5433847 SLEEVE-CARB,INNER
    SLEEVE-CARB,INNER
  • 5
    5432868 COVER,AIRBOX (IF BUILT BEFORE 8/21/06)
    COVER,AIRBOX (IF BUILT BEFORE 8/21/06)
  • 5
    1203567 COVER,AIRBOX (IF BUILT AFTER 8/21/06)
    COVER,AIRBOX (IF BUILT AFTER 8/21/06)
  • 6
    7517317 SCREW
    SCREW
  • 7
    5812773 SEAL-FOAM,LARGE INTAKE
    SEAL-FOAM,LARGE INTAKE
  • 8
    5436969 DUCT-AIR INTAKE,LARGE
    DUCT-AIR INTAKE,LARGE
  • 9
    5411422 GASKET,INTAKE
    GASKET,INTAKE
  • 10
    5812829 SEAL-AIRBOX COVER (IF BUILT BEFORE 4/02/07)
    SEAL-AIRBOX COVER (IF BUILT BEFORE 4/02/07)
  • 10
    5812829 SEAL-AIRBOX COVER (IF BUILT AFTER 4/02/07)
    SEAL-AIRBOX COVER (IF BUILT AFTER 4/02/07)
  • 11
    5412985 BOOT-THROTTLE BODY,EFI
    BOOT-THROTTLE BODY,EFI
  • 12
    2410422 SENSOR-T MAP
    SENSOR-T MAP
  • 13
    7517658 SCREW
    SCREW
  • 14
    7080694 CLAMP,HOSE,SPRING
    CLAMP,HOSE,SPRING
  • 15
    2202744 KIT-BREATHER LINE,SINGLE PC
    KIT-BREATHER LINE,SINGLE PC
  • 16
    8450108-34 SHEATH-REFLECT SLEEVE,19X34CM
    SHEATH-REFLECT SLEEVE,19X34CM
  • 17
    7080511 CLAMP, NARROW BAND
    CLAMP, NARROW BAND
  • 18
    7080699 CLAMP,HOSE
    CLAMP,HOSE
  • 19
    5433678 BOX,AIR
    BOX,AIR
  • 20
    5433396 CAP,END,406-12,3/4BLACK
    CAP,END,406-12,3/4BLACK
  • 21
    7080534 CLAMP,HOSE
    CLAMP,HOSE
  • 22
    5242044 CLIP
    CLIP
  • 23
    5432377 PLUG, TRAP
    PLUG, TRAP
  • 24
    8450059-150 FUEL LINE
    FUEL LINE
  • 25
    7080650 CLAMP,HOSE
    CLAMP,HOSE
  • 26
    5813042 FOIL-AIRBOX,10.75 X 5.60
    FOIL-AIRBOX,10.75 X 5.60
  • 27
    7515179 SCREW
    SCREW
  • 28
    7555859 WASHER, FLAT
    WASHER, FLAT
