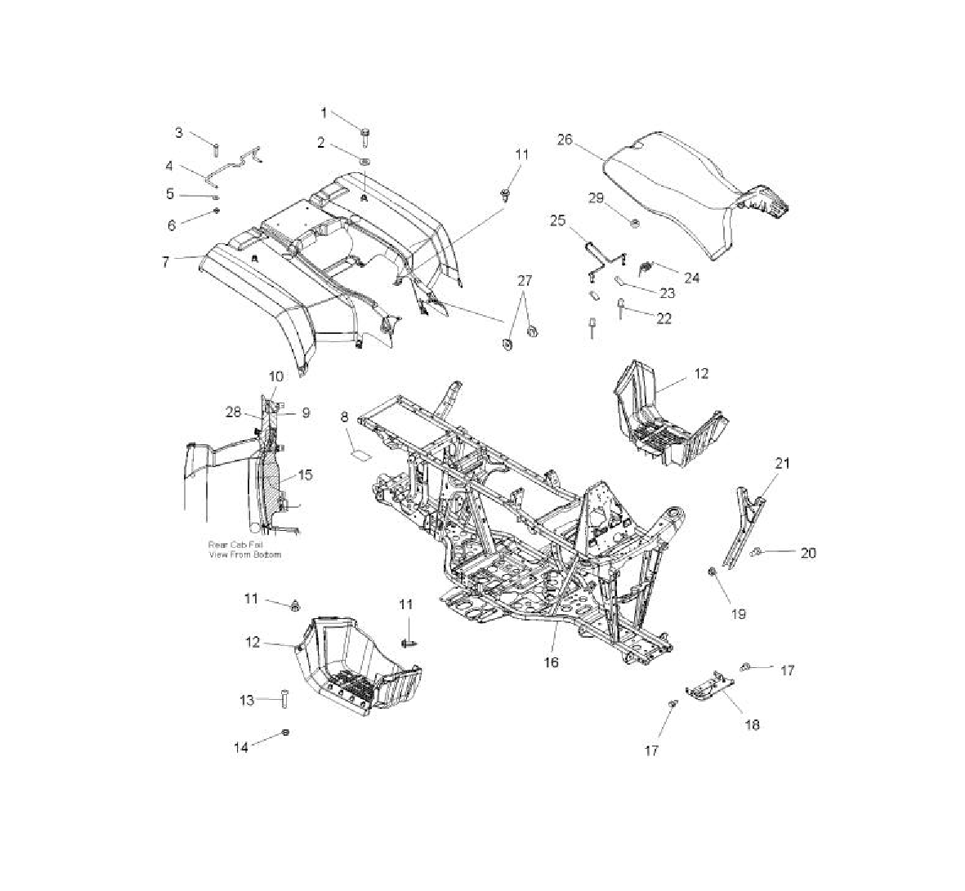

FENDER - REAR W/ SEAT для Polaris SPORTSMAN 700 EFI (A07MH68AZ) (INDY RED) - 2007 года выпуска`
-
№АртикулНазвание
-
17512095 SCREWSCREW
-
27555798 WASHERWASHER
-
37511930 SCREWSCREW
-
45250745 RETAINER-SEAT LATCHRETAINER-SEAT LATCH
-
57555792 WASHERWASHER
-
67541925 NUT, NYLOK 10-24 YNUT, NYLOK 10-24 Y
-
75436319-293 CAB-REAR,SPORTSMAN,INDY REDCAB-REAR,SPORTSMAN,INDY RED
-
87170509 DECAL-HITCHDECAL-HITCH
-
95813028 FOIL-REAR CAB,FRONT (IF BUILT BEFORE 10/01/06)FOIL-REAR CAB,FRONT (IF BUILT BEFORE 10/01/06)
-
95813177 FOIL-REAR CAB,FRONT (IF BUILT AFTER 10/01/06)FOIL-REAR CAB,FRONT (IF BUILT AFTER 10/01/06)
-
105813029 FOIL-REAR CAB,EDGEFOIL-REAR CAB,EDGE
-
117661855 RIVET-TUFLOK,.315-.325X.787RIVET-TUFLOK,.315-.325X.787
-
125436931-070 FOOTWELL-BASIC,LH,BLKFOOTWELL-BASIC,LH,BLK
-
125436932-070 FOOTWELL-BASIC,RH,BLKFOOTWELL-BASIC,RH,BLK
-
137517230 SCREWSCREW
-
147542122 NUT-NYLOKNUT-NYLOK
-
155813043 FOIL-REAR CAB,REARFOIL-REAR CAB,REAR
-
161015740-067 WELD-MAIN FRAME,SPMN TWIN, BLACKWELD-MAIN FRAME,SPMN TWIN, BLACK
-
177515399 SCREWSCREW
-
185245767-067 BUMPER-BRKT,LOWER, BLACK-BUMPER-BRKT,LOWER, BLACK-
-
197542153 NUT,NYLOK,FLANGEDNUT,NYLOK,FLANGED
-
207512283 SCREW, SEMSSCREW, SEMS
-
215244751-067 BRACE-SUPPORT,FRAME,FRT, LEFT HAND, BLACKBRACE-SUPPORT,FRAME,FRT, LEFT HAND, BLACK
-
227621403 BLIND RIVETBLIND RIVET
-
235211033 BRACKET,LEVER RETAINERBRACKET,LEVER RETAINER
-
247041370 SPRING, LATCHSPRING, LATCH
-
251040387 LATCH,SEATLATCH,SEAT
-
262683433-070 SEAT ASM, BLACKSEAT ASM, BLACK
-
262684045 ASM-COVER, SPIRIT, 10" WHT DECALASM-COVER, SPIRIT, 10" WHT DECAL
-
275412623 GROMMET-RUBBER MOUNTGROMMET-RUBBER MOUNT
-
285813030 FOIL-REAR CAB,MIDDLEFOIL-REAR CAB,MIDDLE
-
295412067 BUMPER-RUBBERBUMPER-RUBBER
