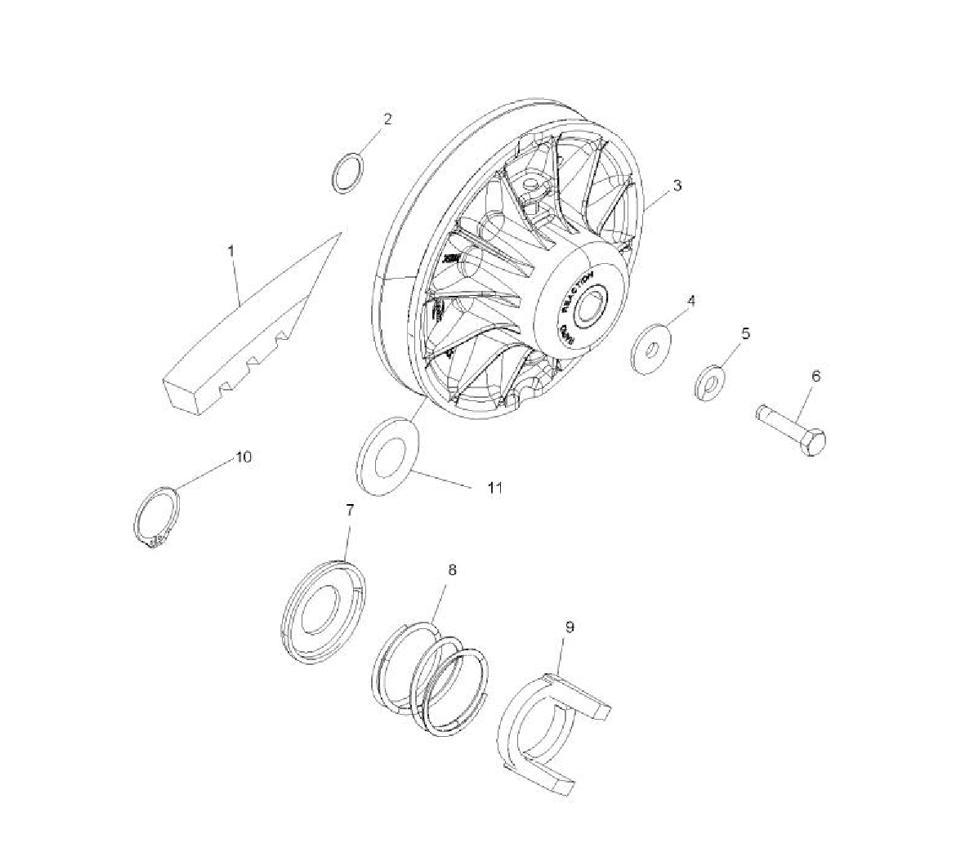

CLUTCH - DRIVEN для Polaris SPORTSMAN 700 EFI (A07MH68AY) (BLACK METALLIC) - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    3211116 BELT-DRIVE
    BELT-DRIVE
  • 2
    7556120 BUSHING-7/8 X 3/8 X 16 GA-Y (3MAX)
    BUSHING-7/8 X 3/8 X 16 GA-Y (3MAX)
  • 3
    1322712 ASM-CLUTCH,DRIVEN (INCL. 7-11)
    ASM-CLUTCH,DRIVEN (INCL. 7-11)
  • 4
    5250562 WASHER-DOMED,SMALL
    WASHER-DOMED,SMALL
  • 5
    7552901 WASHER,SPRING LOCK
    WASHER,SPRING LOCK
  • 6
    7515382 BOLT
    BOLT
  • 7
    7710563 RETAINER-SPRING,OUTER
    RETAINER-SPRING,OUTER
  • 8
    7043167 SPRING-COMPRESSION, BLACK/ALMOND
    SPRING-COMPRESSION, BLACK/ALMOND
  • 9
    7710564 RETAINER-SPRING,INNER
    RETAINER-SPRING,INNER
  • 10
    7710522 RET.RING-EXT 1.500
    RET.RING-EXT 1.500
  • 11
    7556804 WSHR-1.505X2.00X.030-Y
    WSHR-1.505X2.00X.030-Y
