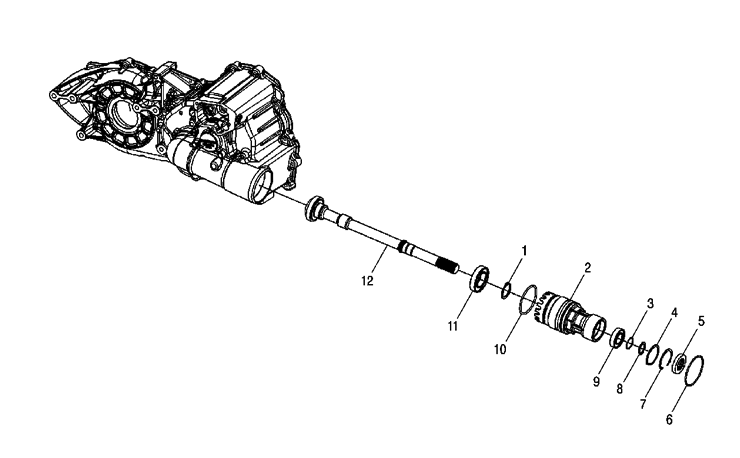

TRANSMISSION - OUTPUT SHAFT - FRONT для Polaris SPORTSMAN 500 EFI (A07MN50AF) (SONIC BLUE) - 2007 года выпуска
-
№АртикулНазвание
-
-1332461 ASM-GEARCASE,DRUMSHIFT,NO PLASM-GEARCASE,DRUMSHIFT,NO PL
-
13233364 RING,RETAININGRING,RETAINING
-
23234085 TUBE-SNORKELTUBE-SNORKEL
-
33233357 SPACERSPACER
-
43234243 SHIM, 1.841 X 1.569 X .005SHIM, 1.841 X 1.569 X .005
-
53233788 SEAL-TRIPLE LIPSEAL-TRIPLE LIP
-
63234076 O-RINGO-RING
-
73234092 RING-RETAININGRING-RETAINING
-
83233106 RING, SNAPRING, SNAP
-
93233305 BEARING,BALLBEARING,BALL
-
103234084 O-RINGO-RING
-
113233265 BEARING, BALLBEARING, BALL
-
123234083 SHAFT-SNORKELSHAFT-SNORKEL
