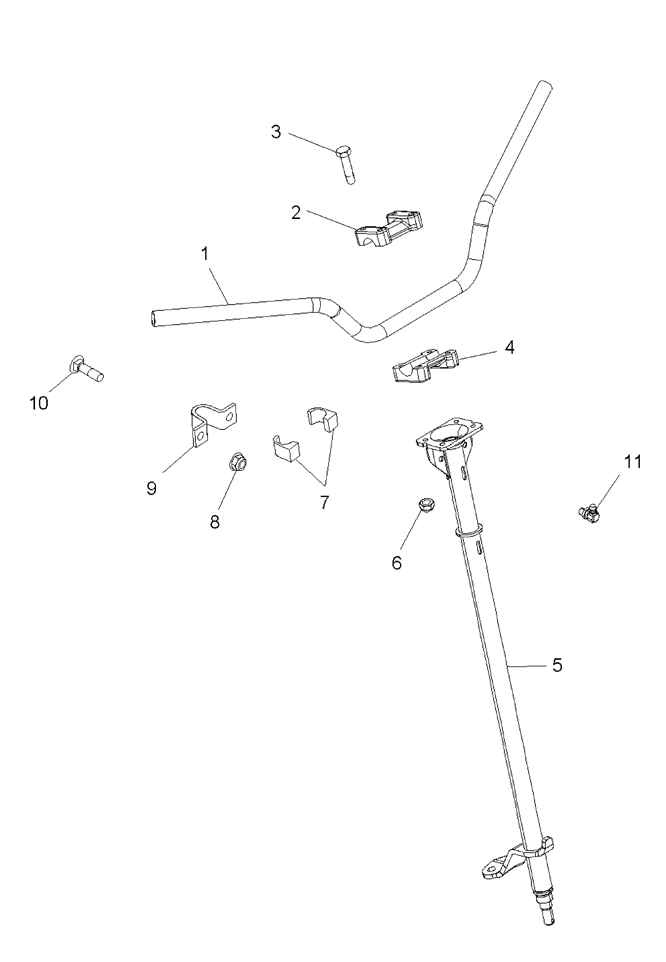

HANDLEBAR - W/STEERING POST для Polaris PREDATOR 500 LE (A07GJ50AC) (WHITE) - 2007 года выпуска`
-
№АртикулНазвание
-
15246156-458 TUBE HANDLE BAR, ATV, MATTE' (BLACK)TUBE HANDLE BAR, ATV, MATTE' (BLACK)
-
25631517 BLOCK HANDLEBAR, PEGGEDBLOCK HANDLEBAR, PEGGED
-
37515189 SCREWSCREW
-
45631516 BLOCK HANDLEBARBLOCK HANDLEBAR
-
51822997-458 WELD STEERING POST, MATTE' (BLACK)WELD STEERING POST, MATTE' (BLACK)
-
67542122 NUT NYLOKNUT NYLOK
-
75433866 BUSHING UPPER, 1 INBUSHING UPPER, 1 IN
-
87547332 NUT M8X1.25, FLG, NYLOC OLIVE DNUT M8X1.25, FLG, NYLOC OLIVE D
-
95246732 BRKT UPPER BUSHINGBRKT UPPER BUSHING
-
107518564 BOLT M8X1.25X20, CARR OLIVE DBOLT M8X1.25X20, CARR OLIVE D
-
117080510 FITTING, ZERK, 90 DEGREEFITTING, ZERK, 90 DEGREE
