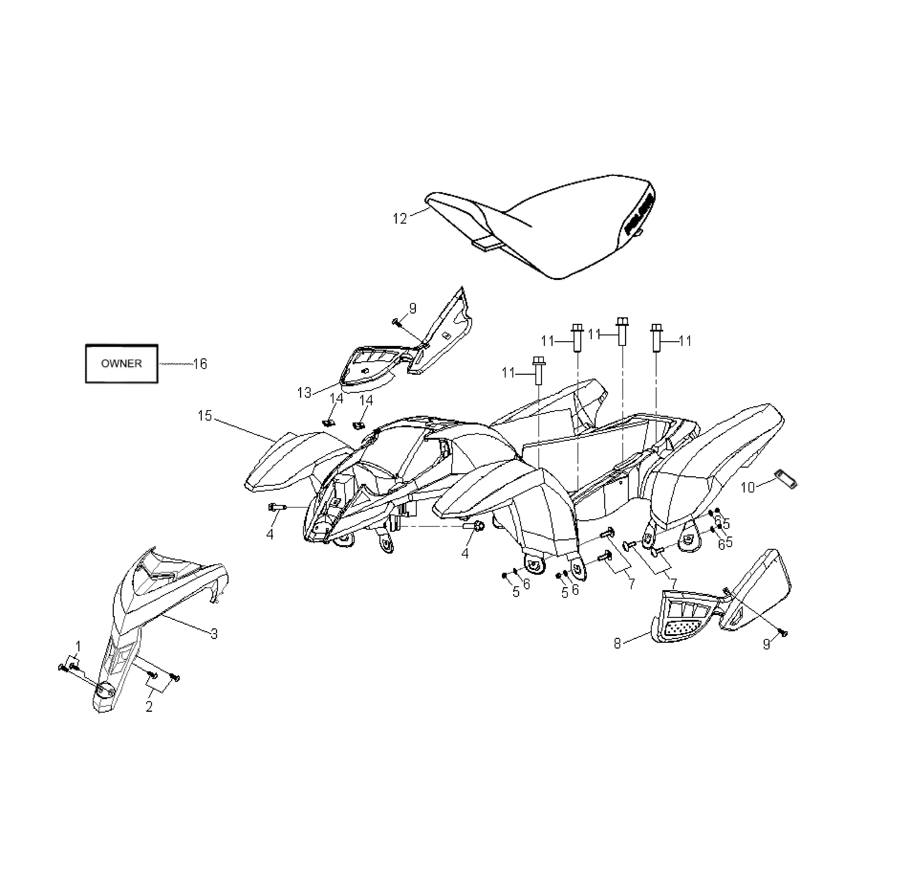

FENDER - REAR W/ SEAT для Polaris PREDATOR 50 (A07KA05CB) (BLACK METALLIC) - 2007 года выпуска
-
№АртикулНазвание
-
10451812 SCREW-TAPPING,4MMSCREW-TAPPING,4MM
-
20451766 SCREW-TAPPING,4MMSCREW-TAPPING,4MM
-
30451317-177 COVER-FRONT, BLACK,MCOVER-FRONT, BLACK,M
-
40450824 BOLT-W/WSHR,HEXBOLT-W/WSHR,HEX
-
50450741 NUT,LOCKNUT,LOCK
-
60450710 WASHER-PLAINWASHER-PLAIN
-
70450622 BOLT-PHILLIPSBOLT-PHILLIPS
-
80451325-070 PANEL-SIDE, LEFT HAND, BLACKPANEL-SIDE, LEFT HAND, BLACK
-
90450676 SCREW-TAPPINGSCREW-TAPPING
-
100451140 STRAP-BATTERYSTRAP-BATTERY
-
110452215 BOLT-HEXBOLT-HEX
-
120451328-070 SEAT ASSY,PRED Y-6, BLACKSEAT ASSY,PRED Y-6, BLACK
-
130451326-070 PANEL-SIDE, RIGHT HAND, BLACKPANEL-SIDE, RIGHT HAND, BLACK
-
140450752 U-NUTU-NUT
-
150453404-133 CAB-PRED 50, 4 STROKE,WHITECAB-PRED 50, 4 STROKE,WHITE
-
169920872 MAN-OWNMAN-OWN
Все узлы модели:
- AIR BOX ASSY.
- BRAKE - FRONT
- BRAKE - REAR
- BUMPER MOUNTING - FRONT W/ HEADLIGHT AND TURN SIGNAL ASSY.
- CAM CHAIN
- CARBURETOR
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- CRANKCASE
- CRANKCASE COVER - LEFT - W/KICK START
- CRANKCASE COVER - RIGHT
- CRANKSHAFT W/ PISTON
- CYLINDER
- CYLINDER HEAD
- DECALS
- DRIVE CHAIN
- ELECTRICAL COMPONENTS
- EXHAUST SYSTEM
- • FENDER - REAR W/ SEAT
- FOOTRESTS
- FRAME - W/SWINGARM
- FUEL TANK
- HANDLEBAR
- HEADLIGHT / BRAKELIGHT
- KICK START 2
- OIL PUMP
- STARTING MOTOR /W GENERATOR
- STEERING POST
- SUSPENSION
- TRANSMISSION - INTERNALS
- WHEEL - FRONT
- WHEEL - REAR
- WHEEL - REAR W/ AXLE
