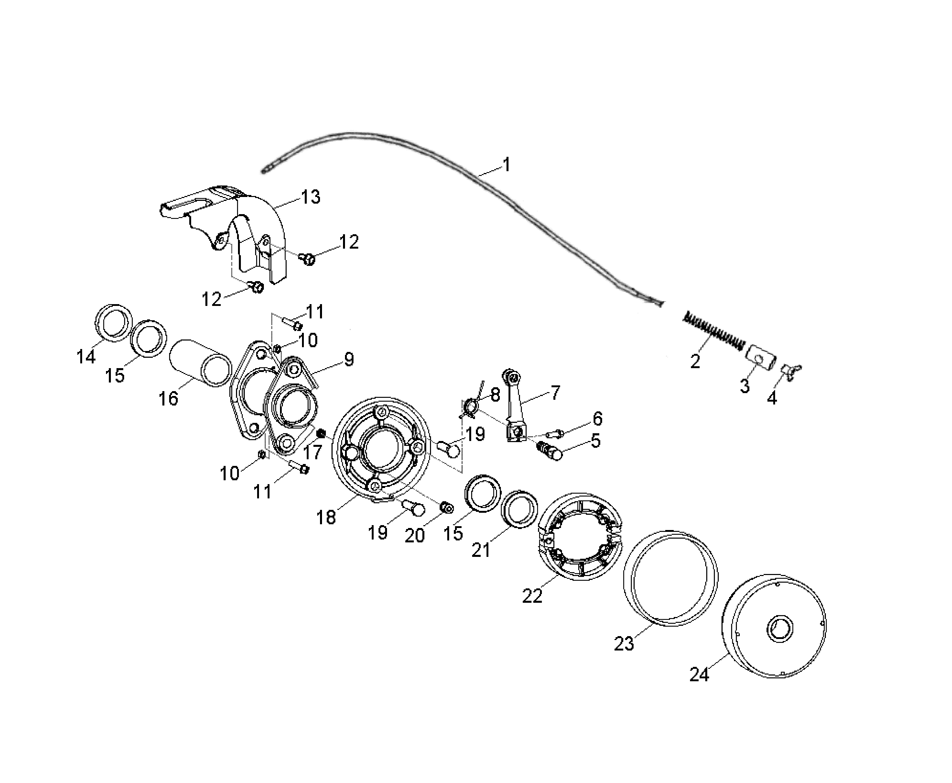

BRAKE - REAR для Polaris PREDATOR 50 (A07KA05CA) (SILVER) - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    0453878 CABLE-BRAKE,REAR
    CABLE-BRAKE,REAR
  • 2
    0450435 SPRING-CABLE,REAR BRAKE
    SPRING-CABLE,REAR BRAKE
  • 3
    0451079 NUT,ADJUST,BRAKE
    NUT,ADJUST,BRAKE
  • 4
    0453094 SPACER-REAR BRAKE CABLE,PHX
    SPACER-REAR BRAKE CABLE,PHX
  • 5
    0450431 SHAFT,CAM,REAR BRAKE
    SHAFT,CAM,REAR BRAKE
  • 6
    0453915 BOLT-PREDATOR 50
    BOLT-PREDATOR 50
  • 7
    0451782 ARM-BRAKE,REAR
    ARM-BRAKE,REAR
  • 8
    0450453 SPRING,BRAKE ARM,REAR
    SPRING,BRAKE ARM,REAR
  • 9
    0453912 HOUSING-REAR AXLE
    HOUSING-REAR AXLE
  • 10
    0453706 NUT-FLANGE,HEX
    NUT-FLANGE,HEX
  • 11
    0453707 BOLT
    BOLT
  • 12
    0452215 BOLT-HEX
    BOLT-HEX
  • 13
    0453880 GUARD-CHAIN
    GUARD-CHAIN
  • 14
    0450430 SEAL-OIL
    SEAL-OIL
  • 15
    0450429 BEARING,NEEDLE
    BEARING,NEEDLE
  • 16
    0453913 TUBE-SPACER,REAR BRAKE
    TUBE-SPACER,REAR BRAKE
  • 17
    0450881 NUT-LOCK,NYLON
    NUT-LOCK,NYLON
  • 18
    0450440 PLATE,REAR BRAKE
    PLATE,REAR BRAKE
  • 19
    0450452 BOLT,HEX
    BOLT,HEX
  • 20
    0450854 SHAFT-FIX,RR BRK
    SHAFT-FIX,RR BRK
  • 21
    0451781 SEAL-OIL
    SEAL-OIL
  • 22
    0450434 SHOE,REAR BRAKE
    SHOE,REAR BRAKE
  • 23
    0450442 RUBBER,PROTECTIVE
    RUBBER,PROTECTIVE
  • 24
    0450441 DRUM,REAR BRAKE
    DRUM,REAR BRAKE
