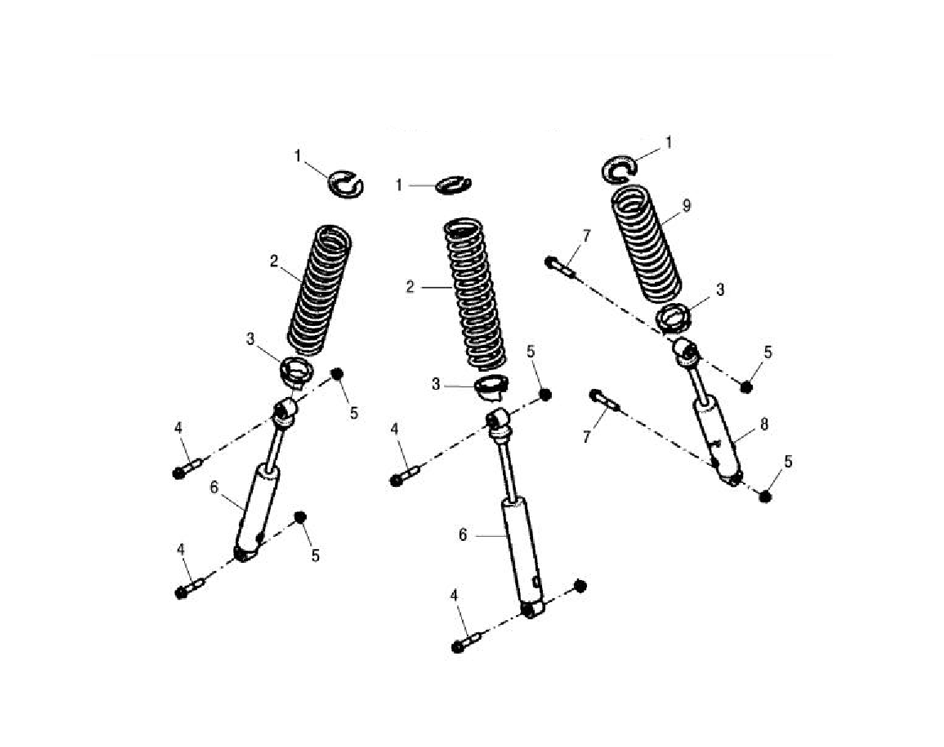

SUSPENSION для Polaris PHOENIX 200 (A07PB20AD) (WHITE) - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    0453768 RETAINER-SPRING
    RETAINER-SPRING
  • 2
    0452996-133 SPRING-FRT SUSP,88LBS/IN,WHITE (STD)
    SPRING-FRT SUSP,88LBS/IN,WHITE (STD)
  • 2
    0452652-293 SPRING-FRT SUSP,88LBS/IN,I RED (OPT)
    SPRING-FRT SUSP,88LBS/IN,I RED (OPT)
  • 3
    0453787 COLLAR-ADJUSTMENT,SHOCK
    COLLAR-ADJUSTMENT,SHOCK
  • 4
    0450820 BOLT-WASHER,HX
    BOLT-WASHER,HX
  • 5
    0450249 NUT-FLANGE
    NUT-FLANGE
  • 6
    0453788-067 SHOCK-FRONT,SUSPENSION,PHX, BLACK
    SHOCK-FRONT,SUSPENSION,PHX, BLACK
  • 7
    0452649 BOLT-HEX,FLANGE
    BOLT-HEX,FLANGE
  • 8
    0453789-067 SHOCK-REAR,SUSPENSION,PHX, BLACK
    SHOCK-REAR,SUSPENSION,PHX, BLACK
  • 9
    0453769-133 SPRING-REAR,SUSP,240LBS/IN,WHT
    SPRING-REAR,SUSP,240LBS/IN,WHT
