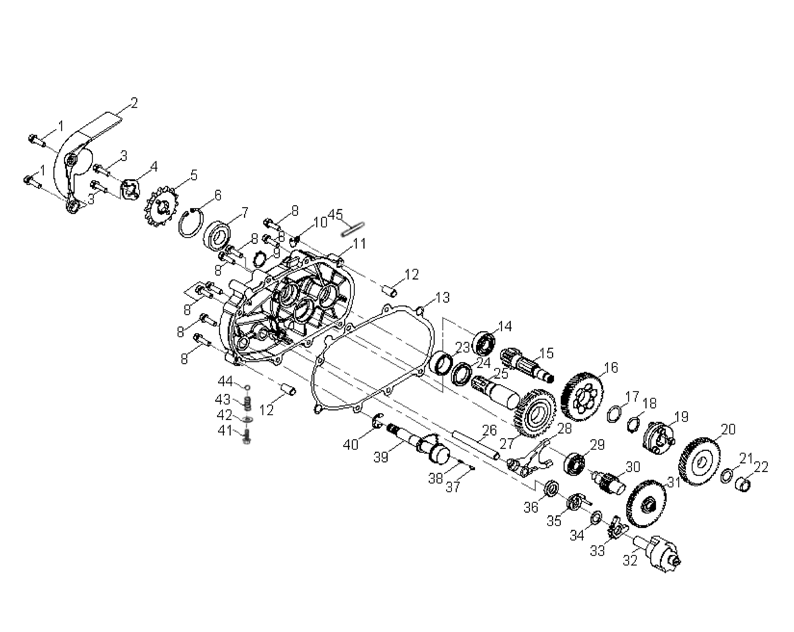

TRANSMISSION - INTERNALS для Polaris OUTLAW 90 (A07KA09AD) (WHITE) - 2007 года выпуска

  • №
    Артикул
    Название
  • -
    0452159 DRUM GEAR SHIFT ASSY (INCLUDES 32 TO 36)
    DRUM GEAR SHIFT ASSY (INCLUDES 32 TO 36)
  • 1
    0453648 BOLT
    BOLT
  • 2
    0453650 COVER ASSY, SPROCKET, TRANS
    COVER ASSY, SPROCKET, TRANS
  • 3
    0453505 BOLT TRANSMISSION
    BOLT TRANSMISSION
  • 4
    0453458 BRKT SPROCKET
    BRKT SPROCKET
  • 5
    0453457 SPROCKET DRIVE
    SPROCKET DRIVE
  • 6
    0450162 CIRCLIP INTERNAL
    CIRCLIP INTERNAL
  • 7
    0453978 BEARING BALL
    BEARING BALL
  • 8
    0452331 BOLT HEX, FLANGE
    BOLT HEX, FLANGE
  • 9
    0452339 CLIP RETAINER
    CLIP RETAINER
  • 10
    0453585 RETAINER CYLINDER HEAD
    RETAINER CYLINDER HEAD
  • 11
    0453642 COVER ASSY, TRANSMISSION, OUTLAW (INCLUDES 45)
    COVER ASSY, TRANSMISSION, OUTLAW (INCLUDES 45)
  • 12
    0450142 PIN DOWEL
    PIN DOWEL
  • 13
    0453646 GASKET COVER, TRANSMISSION
    GASKET COVER, TRANSMISSION
  • 14
    0452156 BEARING MAIN TRNSMSN SHAFT
    BEARING MAIN TRNSMSN SHAFT
  • 15
    0453645 SHAFT TRANSMISSION, OUTLAW
    SHAFT TRANSMISSION, OUTLAW
  • 16
    0453312 REVERSE GEAR ASSY
    REVERSE GEAR ASSY
  • 17
    0452152 WASHER FLAT
    WASHER FLAT
  • 18
    0450060 CIRCLIP EXTERNAL
    CIRCLIP EXTERNAL
  • 19
    0452151 RATCHET SHIFT
    RATCHET SHIFT
  • 20
    0453220 SPUR GEAR ASSY
    SPUR GEAR ASSY
  • 21
    0452148 WASHER FLAT
    WASHER FLAT
  • 22
    0452147 COLLAR SHAFT
    COLLAR SHAFT
  • 23
    0450258 BEARING
    BEARING
  • 24
    0450259 SEAL OIL
    SEAL OIL
  • 25
    0453643 SHAFT DRIVE, OUTLAW
    SHAFT DRIVE, OUTLAW
  • 26
    0452158 SHAFT GEAR SHIFT
    SHAFT GEAR SHIFT
  • 27
    0453644 GEAR FINAL, OUTLAW
    GEAR FINAL, OUTLAW
  • 28
    0452157 FORK SHIFT
    FORK SHIFT
  • 29
    0450254 BEARING BALL
    BEARING BALL
  • 30
    0452145 SHAFT COUNTER
    SHAFT COUNTER
  • 31
    0452146 GEAR COUNTER
    GEAR COUNTER
  • 32
    0453461 GEAR DRUM, SHIFT
    GEAR DRUM, SHIFT
  • 33
    0453462 DETENT SHIFTER
    DETENT SHIFTER
  • 34
    0453512 WASHER DRUM SHIFT
    WASHER DRUM SHIFT
  • 35
    0453463 SPRING TRANSMISSION LEVER
    SPRING TRANSMISSION LEVER
  • 36
    0453464 COLLAR TRANS SHIFT DRUM
    COLLAR TRANS SHIFT DRUM
  • 37
    0452162 SPRING DRUM SENSOR
    SPRING DRUM SENSOR
  • 38
    0452163 ROLLER DRUM SENSOR
    ROLLER DRUM SENSOR
  • 39
    0452160 SPINDLE SHIFT
    SPINDLE SHIFT
  • 40
    0452161 E CLIP
    E CLIP
  • 41
    0452137 BOLT HEX
    BOLT HEX
  • 42
    0452136 WASHER FLAT
    WASHER FLAT
  • 43
    0453033 SPRING-DETENT,10KG
    SPRING-DETENT,10KG
  • 44
    0452134 BALL STEEL
    BALL STEEL
  • 45
    0453640 TUBE BREATHER, TRANSMISSION
    TUBE BREATHER, TRANSMISSION
