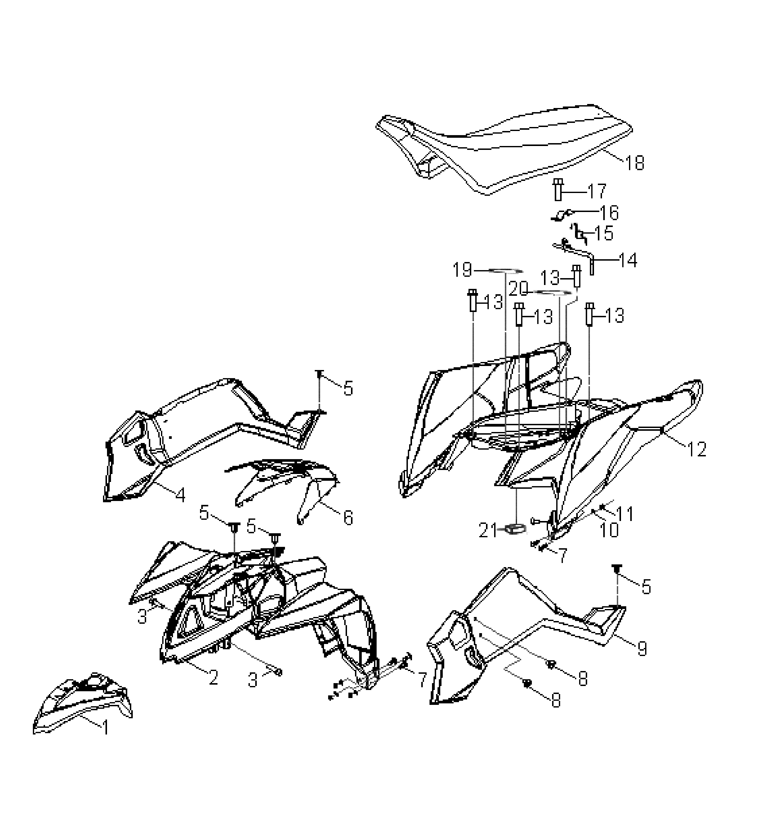

FENDER - REAR W/ SEAT для Polaris OUTLAW 90 (A07KA09AA) (SILVER METALLIC) - 2007 года выпуска`
-
№АртикулНазвание
-
10453326-473 COVER FRONT, SLVR VEN METCOVER FRONT, SLVR VEN MET
-
20453321-177 CAB FRT, BLACK METCAB FRT, BLACK MET
-
30450824 BOLT W/WSHR, HEXBOLT W/WSHR, HEX
-
40453324-177 PANEL SIDE, RIGHT HAND, BLACK METPANEL SIDE, RIGHT HAND, BLACK MET
-
50451076 RIVET, PLASTICRIVET, PLASTIC
-
60453325-177 COVER FUEL TANK, BLACK METCOVER FUEL TANK, BLACK MET
-
70450622 BOLT PHILLIPSBOLT PHILLIPS
-
87661855 RIVET TUFLOK, .315 .325X.787 (50RIVET TUFLOK, .315 .325X.787 (50
-
90453323-177 PANEL SIDE, LEFT HAND, BLACK METPANEL SIDE, LEFT HAND, BLACK MET
-
100450710 WASHER PLAINWASHER PLAIN
-
110450741 NUT, LOCKNUT, LOCK
-
120453941-177 CAB ASSY, REAR, OUTLW, BLK, W/DECALCAB ASSY, REAR, OUTLW, BLK, W/DECAL
-
130452215 BOLT HEXBOLT HEX
-
140453688 LATCH SEAT, OUTLAWLATCH SEAT, OUTLAW
-
150453689 SPRING SEAT LATCH, OUTLAWSPRING SEAT LATCH, OUTLAW
-
160453690 RETAINER SEAT LATCH, OUTLAWRETAINER SEAT LATCH, OUTLAW
-
170451703 SCREW, TAPPINGSCREW, TAPPING
-
180453327-473 SEAT BASE W/FOAM, SLVR VENSEAT BASE W/FOAM, SLVR VEN
-
190453686 O'RINGO'RING
-
200453687 O'RINGO'RING
-
210450346 FOAM, BATTERY PADFOAM, BATTERY PAD
Все узлы модели:
- AIR BOX ASSY.
- BRAKE - FRONT
- BRAKE - REAR
- BUMPER MOUNTING - FRONT W/ HEADLIGHT AND TURN SIGNAL ASSY.
- CAM CHAIN
- CARBURETOR
- CHAIN / CHAIN GUARD
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- CRANKCASE
- CRANKCASE COVER - LEFT
- CRANKCASE COVER - RIGHT
- CRANKSHAFT W/ PISTON
- CYLINDER
- CYLINDER HEAD
- DECALS
- ELECTRICAL COMPONENTS
- EXHAUST SYSTEM
- • FENDER - REAR W/ SEAT
- FRAME
- FUEL TANK
- HANDLEBAR
- HEADLIGHT / BRAKELIGHT
- KICK START
- KICK START 2
- MANUAL - OWNER'S
- OIL PUMP
- STARTING MOTOR /W GENERATOR
- STEERING POST
- SUSPENSION
- SUSPENSION - SWING ARM W/ FOOTREST
- TRANSMISSION - INTERNALS
- TRANSMISSION - SHIFTER ASSY.
- WHEEL - FRONT
- WHEEL - REAR
- WHEEL - REAR W/ AXLE
