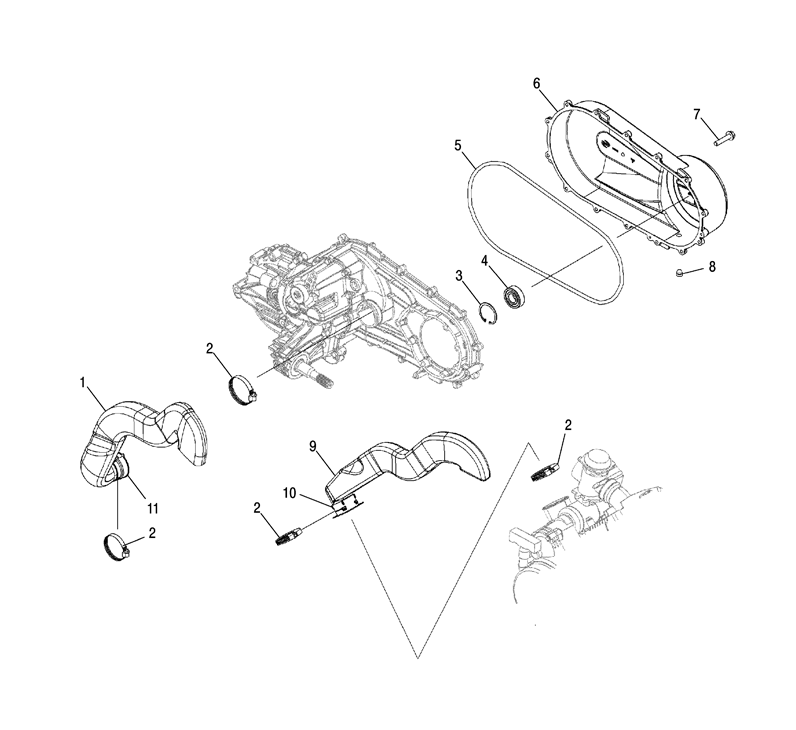

CLUTCH COVER W/DUCTING для Polaris HAWKEYE 4X4 (A07LH27AL) (BLACK METALLIC) - 2007 года выпуска`
-
№АртикулНазвание
-
15436286 DUCT-OUTLET,W/BOOTDUCT-OUTLET,W/BOOT
-
27080707 CLAMP,BAND,NARROWCLAMP,BAND,NARROW
-
33234344 RETAINING RING, INTERNAL 1.56RETAINING RING, INTERNAL 1.56
-
43234343 BEARING, BALL, 6203-2RSBEARING, BALL, 6203-2RS
-
55812952 SEAL-CLUTCH COVERSEAL-CLUTCH COVER
-
63234339 CLUTCH COVER (INCLUDES 3,4,8)CLUTCH COVER (INCLUDES 3,4,8)
-
77516823 SCREWSCREW
-
83234345 PLUG, M14 X 1 X 9PLUG, M14 X 1 X 9
-
95436285 DUCT-INLET W/BOOTDUCT-INLET W/BOOT
-
105412634 BOOT-CLUTCH INTAKE,2.25 I.D.BOOT-CLUTCH INTAKE,2.25 I.D.
-
115412636 BOOT-DUCT,HI-FLOWBOOT-DUCT,HI-FLOW
