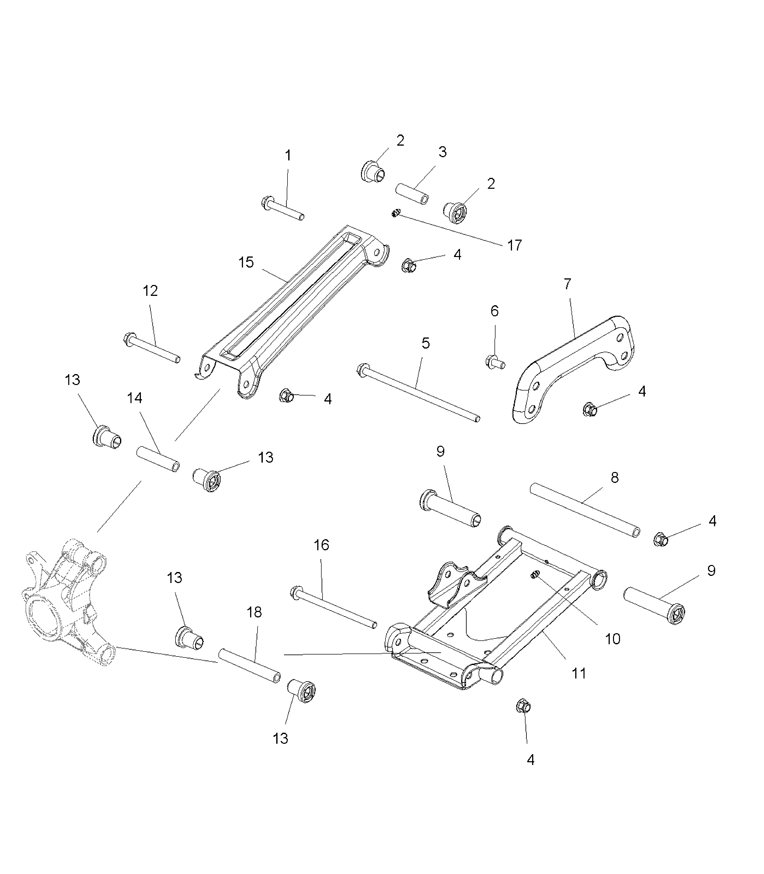

SUSPENSION - REAR для Polaris HAWKEYE 4X4 (A07LH27AB) (SILVER) - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    7518473 BOLT-M10X1.5X75,HX HD FLG
    BOLT-M10X1.5X75,HX HD FLG
  • 2
    5436971 BUSHING-X-SHORT,25.4MM
    BUSHING-X-SHORT,25.4MM
  • 3
    5135495 TUBE-PIVOT,51.95MM
    TUBE-PIVOT,51.95MM
  • 4
    7547313 NUT-M10X1.5,HXFLG, NYLON INS
    NUT-M10X1.5,HXFLG, NYLON INS
  • 5
    7518472 BOLT-M10X1.5X230,HX HD FLG
    BOLT-M10X1.5X230,HX HD FLG
  • 6
    7518700 BOLT-M10X1.5X20,HXHDFLG
    BOLT-M10X1.5X20,HXHDFLG
  • 7
    5249760-067 BRKT-SUPPORT,REAR SUSP, BLACK
    BRKT-SUPPORT,REAR SUSP, BLACK
  • 8
    5135494 TUBE-PIVOT,209.55MM
    TUBE-PIVOT,209.55MM
  • 9
    5436973 BUSHING-A-ARM,LONG,102.36MM
    BUSHING-A-ARM,LONG,102.36MM
  • 10
    7080433 FITTING,LUBRICATION,THREADED
    FITTING,LUBRICATION,THREADED
  • 11
    1015704-067 WELD-CONTROL ARM, LEFT HAND, BLACK
    WELD-CONTROL ARM, LEFT HAND, BLACK
  • 11
    1015705-067 WELD-CONTROL ARM, RIGHT HAND, BLACK
    WELD-CONTROL ARM, RIGHT HAND, BLACK
  • 12
    7518468 BOLT-M10X1.5X95,HX HD FLG
    BOLT-M10X1.5X95,HX HD FLG
  • 13
    5436972 BUSHING-SHORT,35.05MM
    BUSHING-SHORT,35.05MM
  • 14
    5135493 TUBE-PIVOT,73.74MM
    TUBE-PIVOT,73.74MM
  • 15
    5249046-067 BRKT-ARM,CONTROL, LEFT HAND, BLACK
    BRKT-ARM,CONTROL, LEFT HAND, BLACK
  • 15
    5249047-067 BRKT-ARM,CONTROL, RIGHT HAND, BLACK
    BRKT-ARM,CONTROL, RIGHT HAND, BLACK
  • 16
    7518668 BOLT-M10X1.5X165,HXHDFLG
    BOLT-M10X1.5X165,HXHDFLG
  • 17
    7080424 FITTING, LUBRICATION
    FITTING, LUBRICATION
  • 18
    5135637 TUBE-PIVOT,142.74MM
    TUBE-PIVOT,142.74MM
