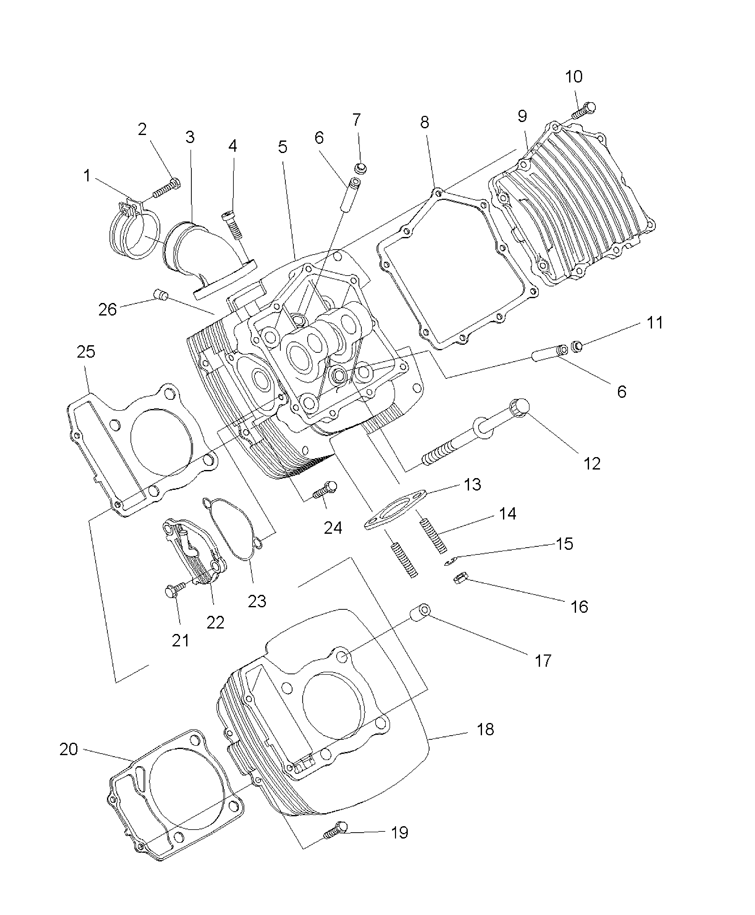

CYLINDER для Polaris HAWKEYE 2X4 (A07LB27AC) (BLACK METALLIC) - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    3083166 ADAPTER BAND ASSY
    ADAPTER BAND ASSY
  • 2
    3081497 SCREW,PAN HEAD
    SCREW,PAN HEAD
  • 3
    3089806 ADAPTER-COMPLETE
    ADAPTER-COMPLETE
  • 4
    3081330 BOLT, SOCKET HEAD
    BOLT, SOCKET HEAD
  • 5
    3089798 ASM-CYLINDER HEAD
    ASM-CYLINDER HEAD
  • 6
    3084994 GUIDE,VALVE
    GUIDE,VALVE
  • 7
    3084858 SEAL,INTAKE VALVE
    SEAL,INTAKE VALVE
  • 8
    3089804 GASKET-ROCKER COVER
    GASKET-ROCKER COVER
  • 9
    3089803 COVER-ROCKER
    COVER-ROCKER
  • 10
    3089983 COULD NOT FIND
    COULD NOT FIND
  • 11
    3084859 SEAL,EXHAUST VALVE
    SEAL,EXHAUST VALVE
  • 12
    3089990 BOLT/WASHER ASSY
    BOLT/WASHER ASSY
  • 13
    3087957 GASKET EXHAUST ASSY
    GASKET EXHAUST ASSY
  • 14
    3085326 STUD
    STUD
  • 15
    3080530 WASHER, SPRING LOCK
    WASHER, SPRING LOCK
  • 16
    3087199 NUT
    NUT
  • 17
    3087266 KNOCK,PIPE
    KNOCK,PIPE
  • 18
    3089796 CYLINDER-UNIT
    CYLINDER-UNIT
  • 19
    3084874 BOLT, FLANGE
    BOLT, FLANGE
  • 20
    3089797 GASKET-CYLINDER
    GASKET-CYLINDER
  • 21
    3089986 BOLT
    BOLT
  • 22
    3089967 COVER-CAMSHAFT
    COVER-CAMSHAFT
  • 23
    3089800 O-RING
    O-RING
  • 24
    3084874 BOLT, FLANGE
    BOLT, FLANGE
  • 25
    3089802 GASKET-HEAD COMPLETE
    GASKET-HEAD COMPLETE
  • 26
    3087157 PLUG-BLIND ASSY
    PLUG-BLIND ASSY
