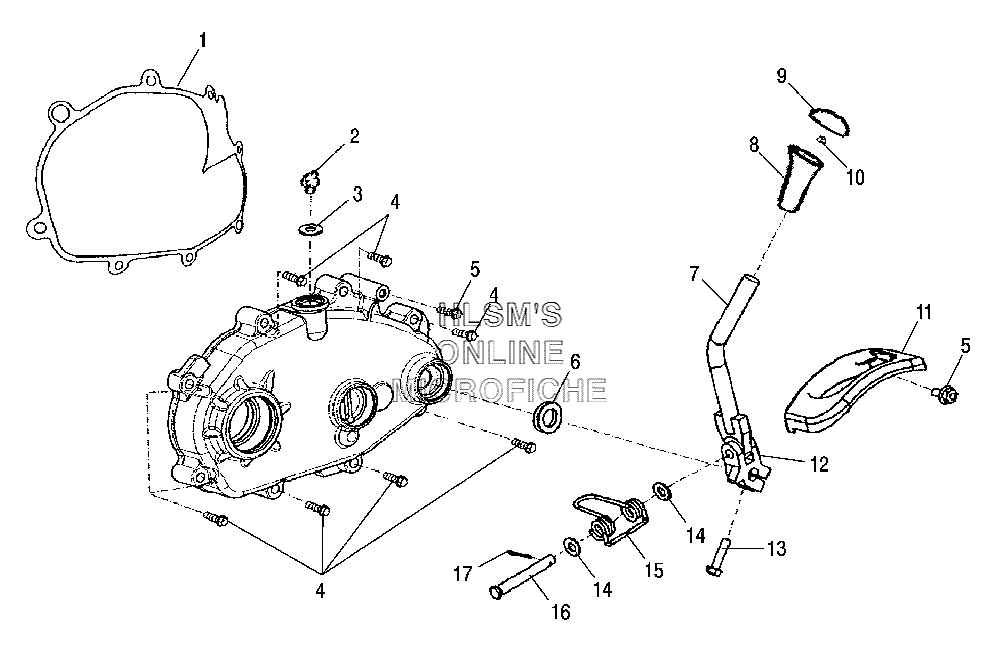

TRANSMISSION - SHIFTER ASSY. для Polaris Sportsman 90 (A06FA09CC) (NBU CAMO) - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    0452169 GASKET TRANSMISSION COVER
    GASKET TRANSMISSION COVER
  • 2
    0451813 PLUG OIL
    PLUG OIL
  • 3
    0450154 O RING
    O RING
  • 4
    0452176 BOLT HEX, FLANGE
    BOLT HEX, FLANGE
  • 5
    0450701 BOLT HEX WASHER
    BOLT HEX WASHER
  • 6
    0452175 SEAL OIL
    SEAL OIL
  • 7
    0452166 LEVER TRANSMISSION
    LEVER TRANSMISSION
  • 8
    0452168 KNOB TRANSMISSION LEVER
    KNOB TRANSMISSION LEVER
  • 9
    0450967 COVER TRANSMISSION LEVER KNOB
    COVER TRANSMISSION LEVER KNOB
  • 10
    0450309 BOLT HEX
    BOLT HEX
  • 11
    0452170 GATE SHIFT
    GATE SHIFT
  • 12
    0452171 MOUNT SHIFT LEVER
    MOUNT SHIFT LEVER
  • 13
    0450189 BOLT HEX
    BOLT HEX
  • 14
    0450192 WASHER
    WASHER
  • 15
    0452173 SPRING TRANSMISSION LEVER
    SPRING TRANSMISSION LEVER
  • 16
    0452174 PIN TRANSMISSION LEVER
    PIN TRANSMISSION LEVER
  • 17
    0450719 PIN COTTER
    PIN COTTER
