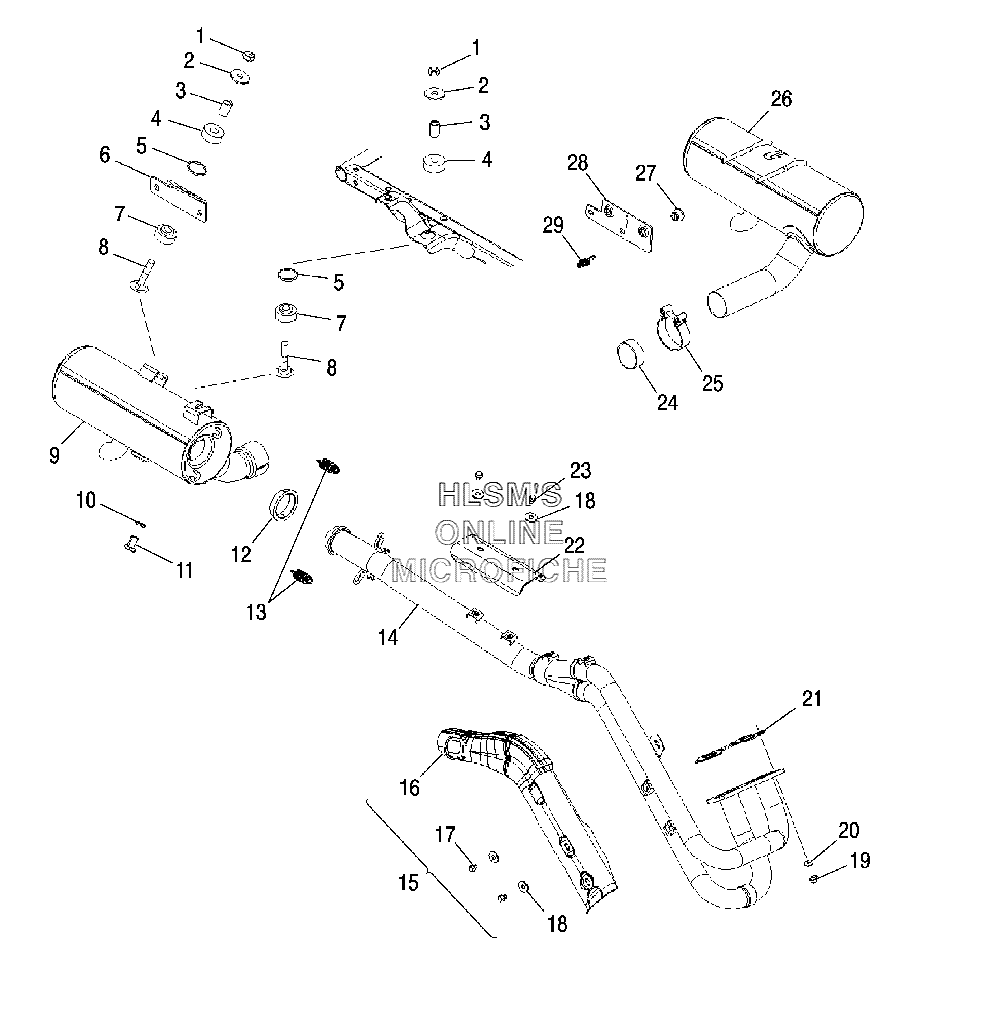

EXHAUST SYSTEM для Polaris Sportsman 800 EFI (06MH76AZ) (INDY RED) - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    7542324 NUT, NYLOK
    NUT, NYLOK
  • 2
    7555716 WASHER
    WASHER
  • 3
    5010192 BUSHING
    BUSHING
  • 4
    5410436 WASHER, RUBBER
    WASHER, RUBBER
  • 5
    7555863 WASHER
    WASHER
  • 6
    5241663 BRACKET, SILENCER, FRAME
    BRACKET, SILENCER, FRAME
  • 7
    5412508 DAMPENER, VIBRATION
    DAMPENER, VIBRATION
  • 8
    7515316 BOLT
    BOLT
  • 9
    1261579 WELD, EXHAUST SILENCER (RIGHT)
    WELD, EXHAUST SILENCER (RIGHT)
  • 10
    7556230 WASHER, CLEAN OUT
    WASHER, CLEAN OUT
  • 11
    7512666 BOLT
    BOLT
  • 12
    3610047 SEAL, EXHAUST SOCKET
    SEAL, EXHAUST SOCKET
  • 13
    7041804 SPRING
    SPRING
  • 14
    1261445-029 EXHAUST PIPE, DUAL (BLACK)
    EXHAUST PIPE, DUAL (BLACK)
  • 15
    2876048 SHIELD KIT, EXHAUST (INCL. 16, 17, 18) (IF BUILT BEFORE 2/20/06)
    SHIELD KIT, EXHAUST (INCL. 16, 17, 18) (IF BUILT BEFORE 2/20/06)
  • 16
    5250299 SHIELD, HEAT, EXHAUST
    SHIELD, HEAT, EXHAUST
  • 17
    7517658 SCREW
    SCREW
  • 18
    7555935 WASHER
    WASHER
  • 19
    7547076 NUT
    NUT
  • 20
    7556353 WASHER
    WASHER
  • 21
    5811511 GASKET (26MM ID)
    GASKET (26MM ID)
  • 22
    5244014 SHIELD, HEAT, EXHAUST
    SHIELD, HEAT, EXHAUST
  • 23
    7518490 SCREW
    SCREW
  • 24
    5246375 SEAL, EXHAUST
    SEAL, EXHAUST
  • 25
    7081284 CLAMP, EXHAUST
    CLAMP, EXHAUST
  • 26
    1261448 WELD, EXHAUST SILENCER (LEFT)
    WELD, EXHAUST SILENCER (LEFT)
  • 27
    5412727 GROMMET SILENCER MOUNT
    GROMMET SILENCER MOUNT
  • 28
    5248723 BRACKET SILENCER MOUNT, PLATED
    BRACKET SILENCER MOUNT, PLATED
  • 29
    7042266 SPRING, EXTRENSION, BRACE SWITCH
    SPRING, EXTRENSION, BRACE SWITCH
